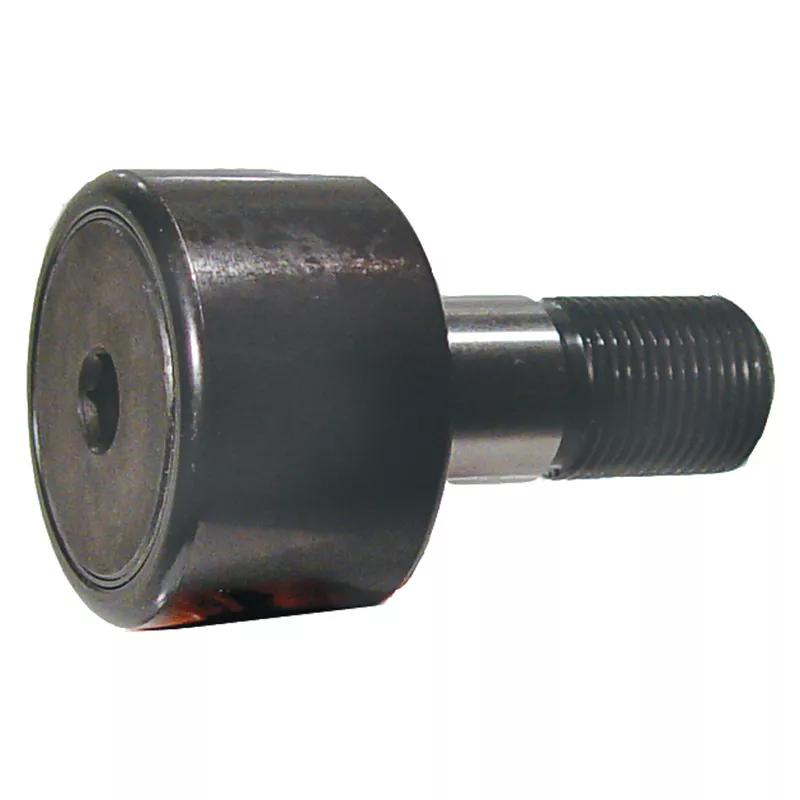

Stud Track Roller; Roller Diameter=16 mm, Static Load Capacity=2348.7 N | 528 lbf, Dynamic Load Capacity=5782.7 N | 1300 lbf
Stud Track Roller Manufacturer Part Number: MCNB-16-SB
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $67.88 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Reid Select |
|---|---|
| Manufacturer Part Number | MCNB-16-SB |
| Follower Type | Stud |
| Static Load Capacity | 528 lbf |
| Dynamic Load Capacity | 1300 lbf |
| Speed Limit | 13000 rpm |
| Torque | 13.3 in-lb |
| Outside Diameter | .630 in |
| Stud Diameter | 6 mm |
| Stud Length | .630 in |
| Stud Thread Size | M6 x 1 |
| Ball Bearing Housing Style | Sealed |
| Wheel Inner Bearing Type | Sealed |
| Material | Steel |
