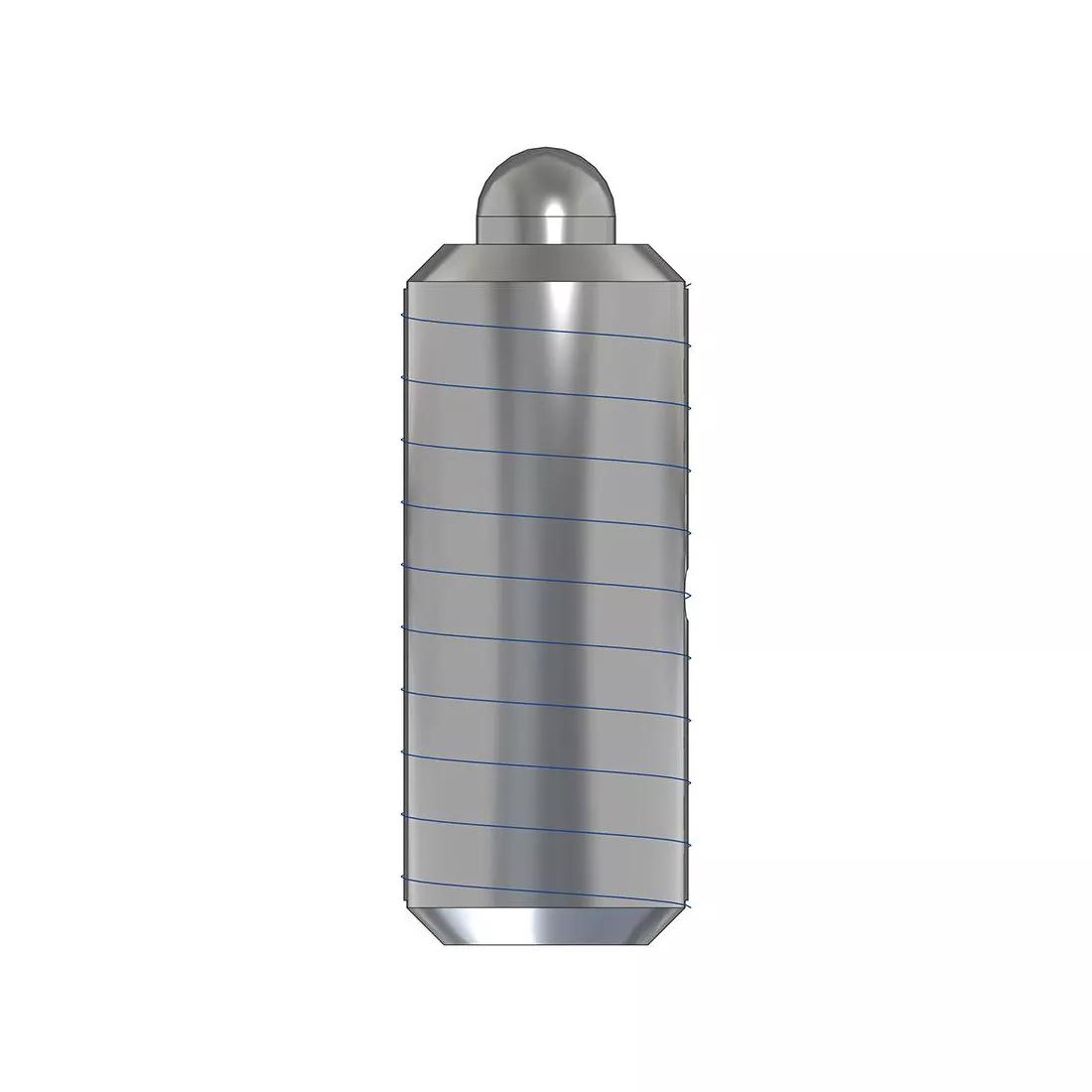

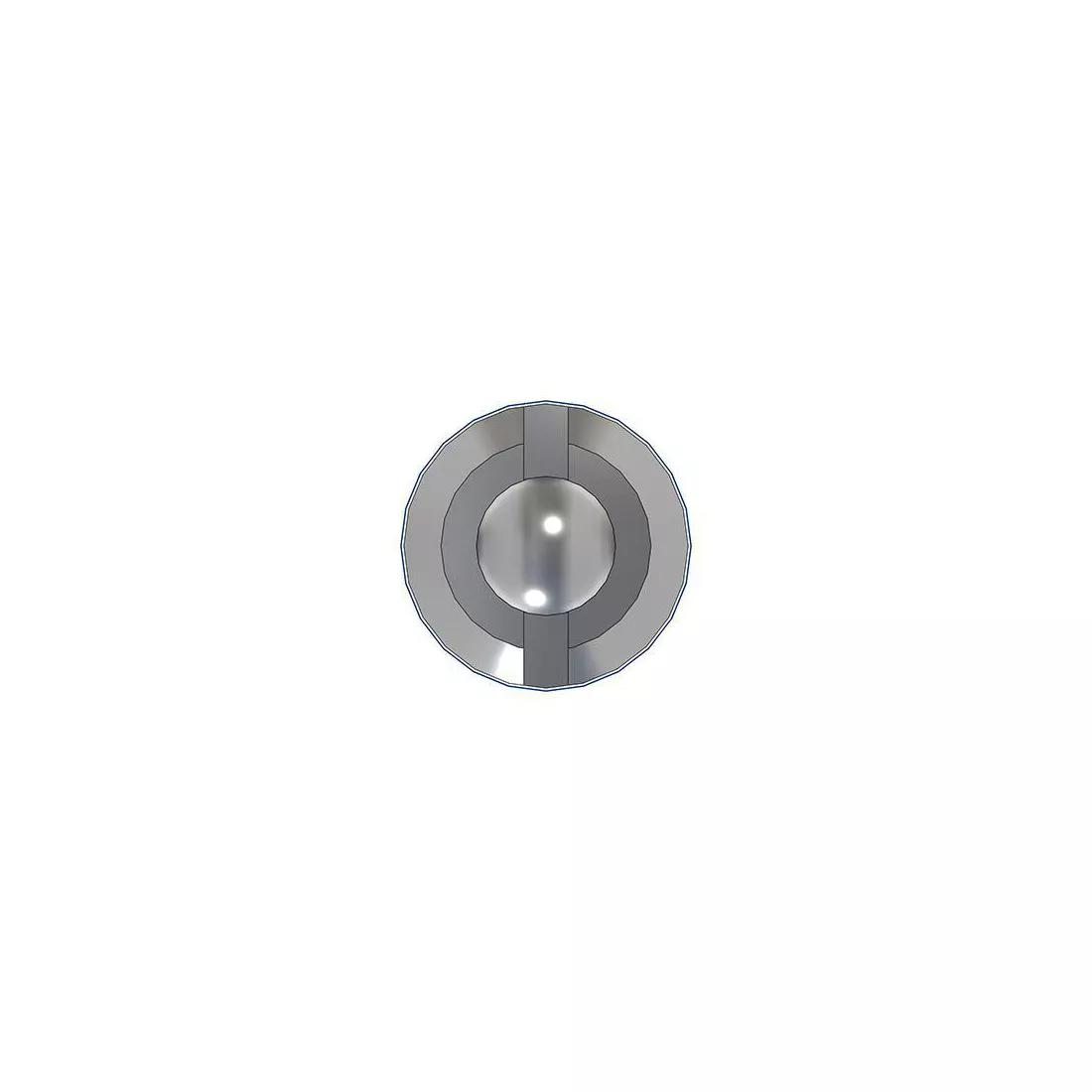

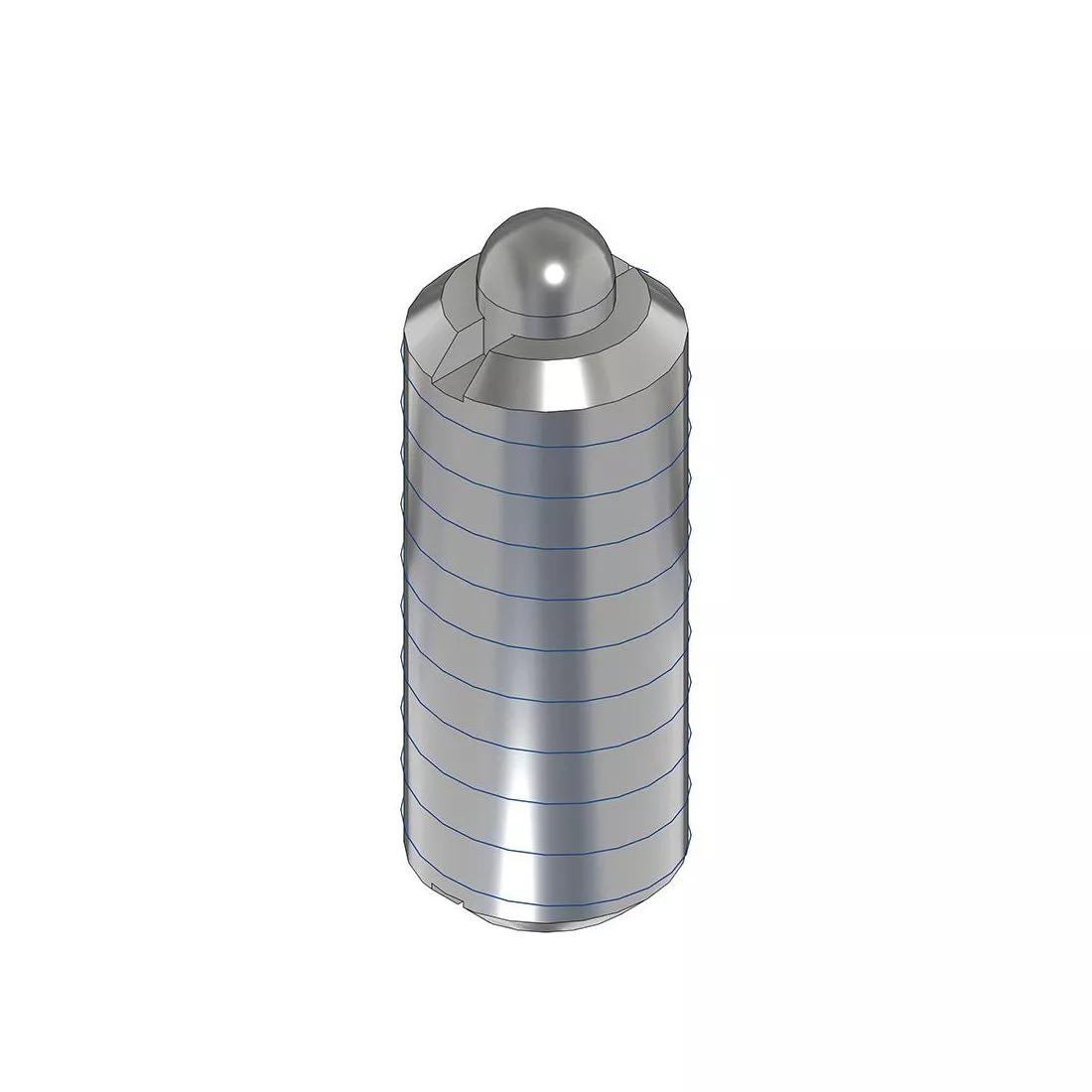

10-32 Stainless Steel Ball Nose Spring Plunger
LK2-SN features a 10-32 thread with a Stainless Steel Ball nose. The plunger has a body length of .468 in and an initial end force of .75 lbs Manufacturer Part Number: SSM53P
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $4.42 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Body Material | Stainless Steel |
|---|---|
| Nose Material | Stainless Steel |
| Initial End Force | .75 lbs |
| Thread Size | 10-32 |
| Body Length | 0.468 in |
| Ball Diameter | 0.093 in |
| Nose Projection | 0.093 in |
