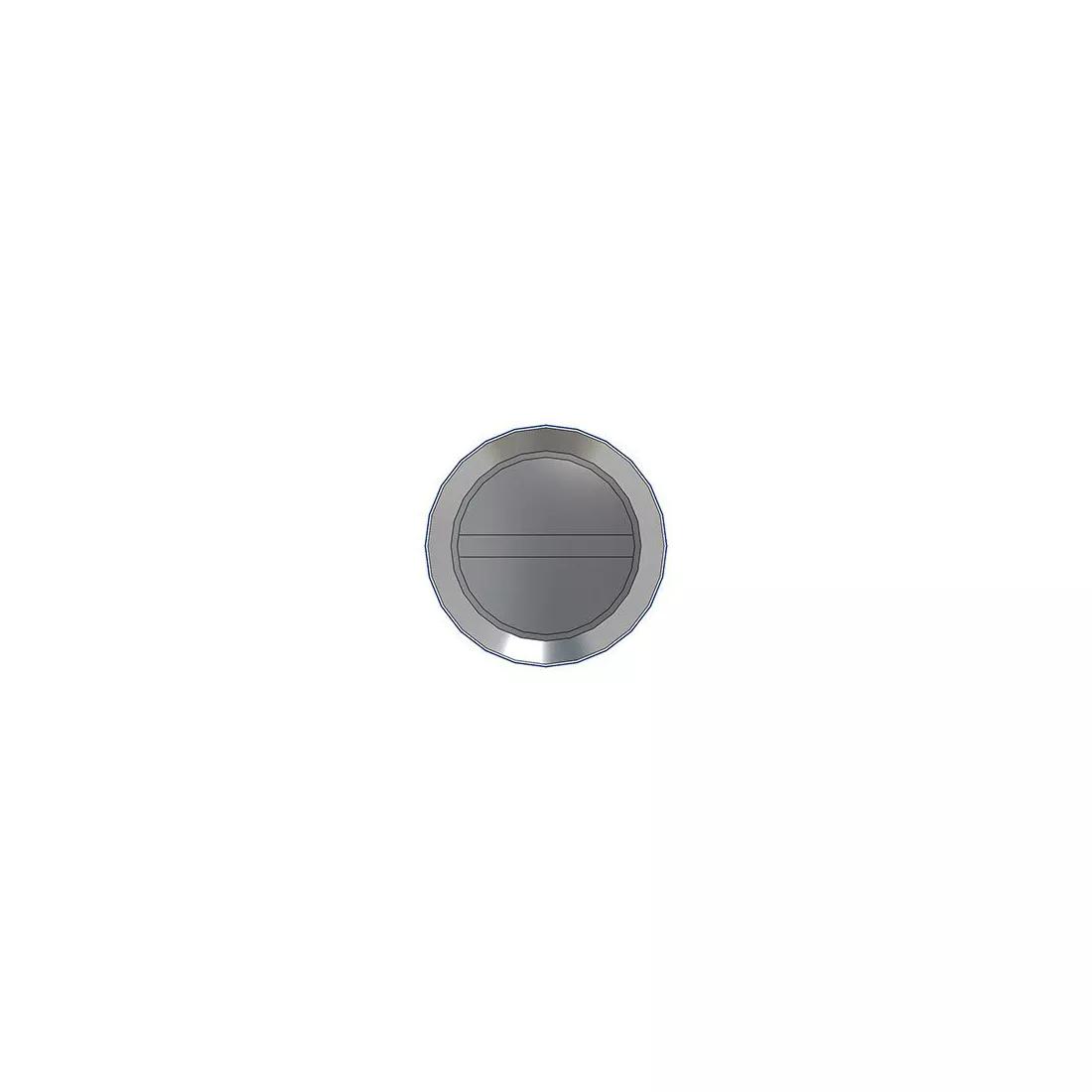

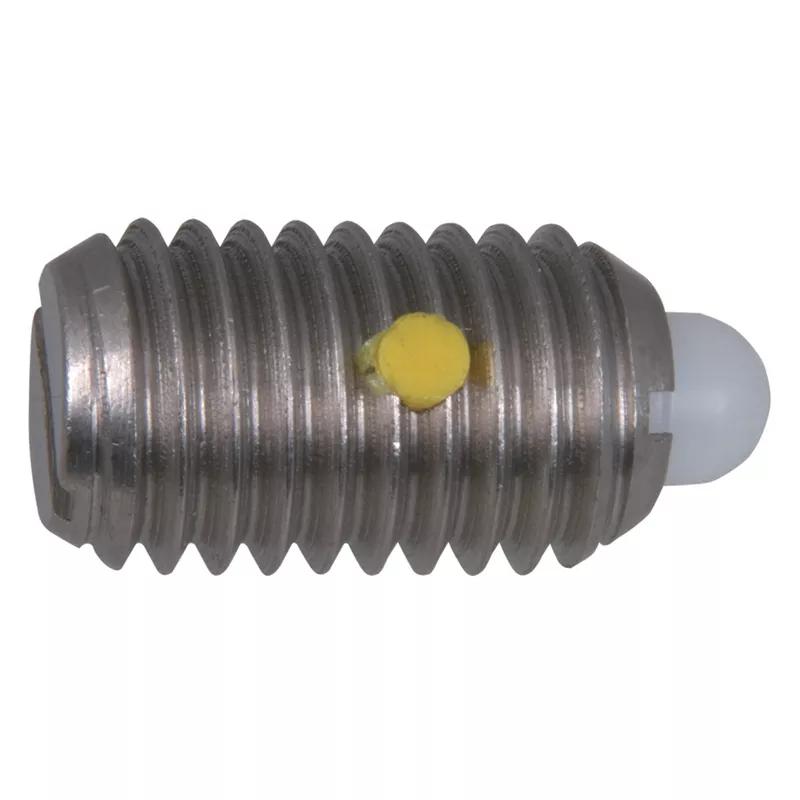

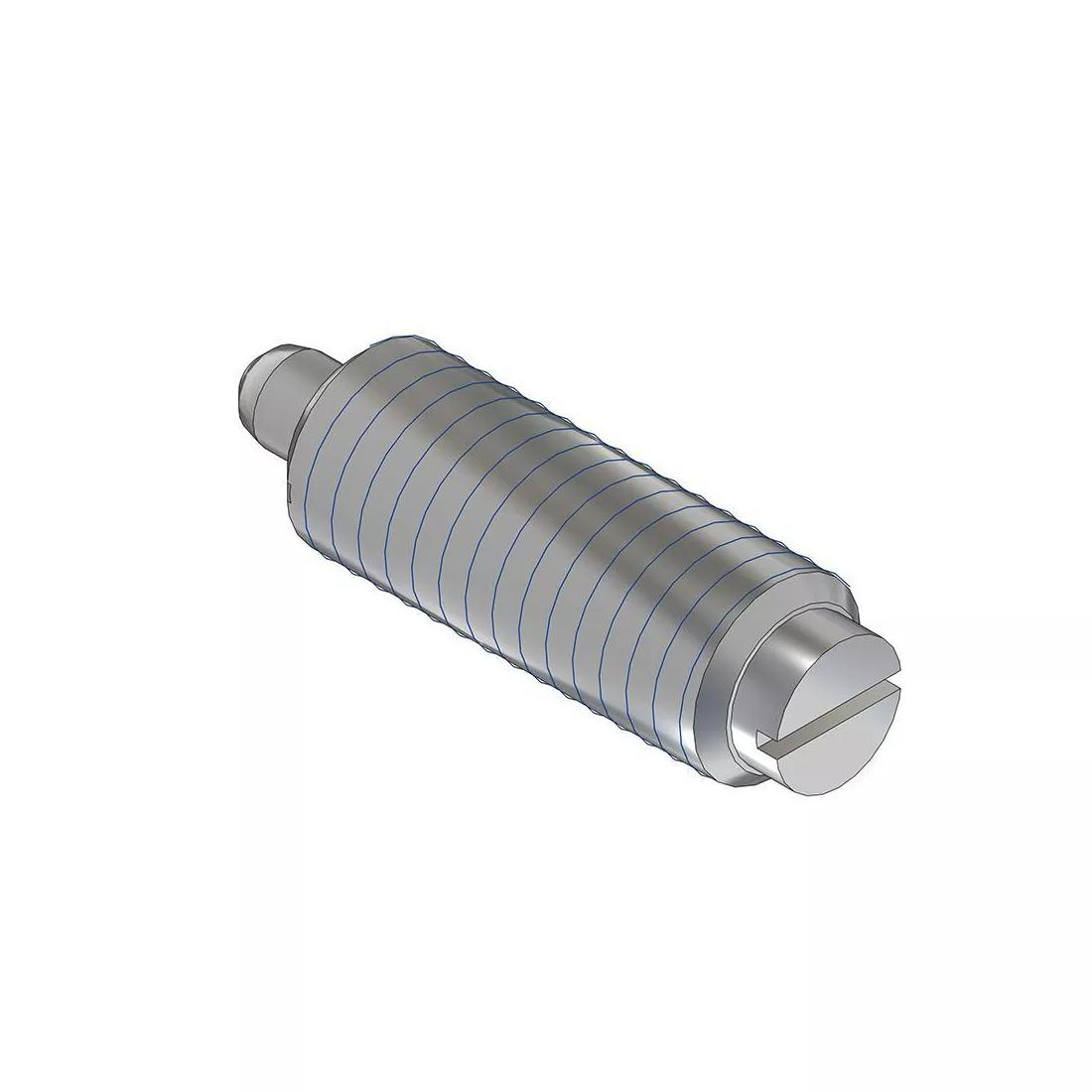

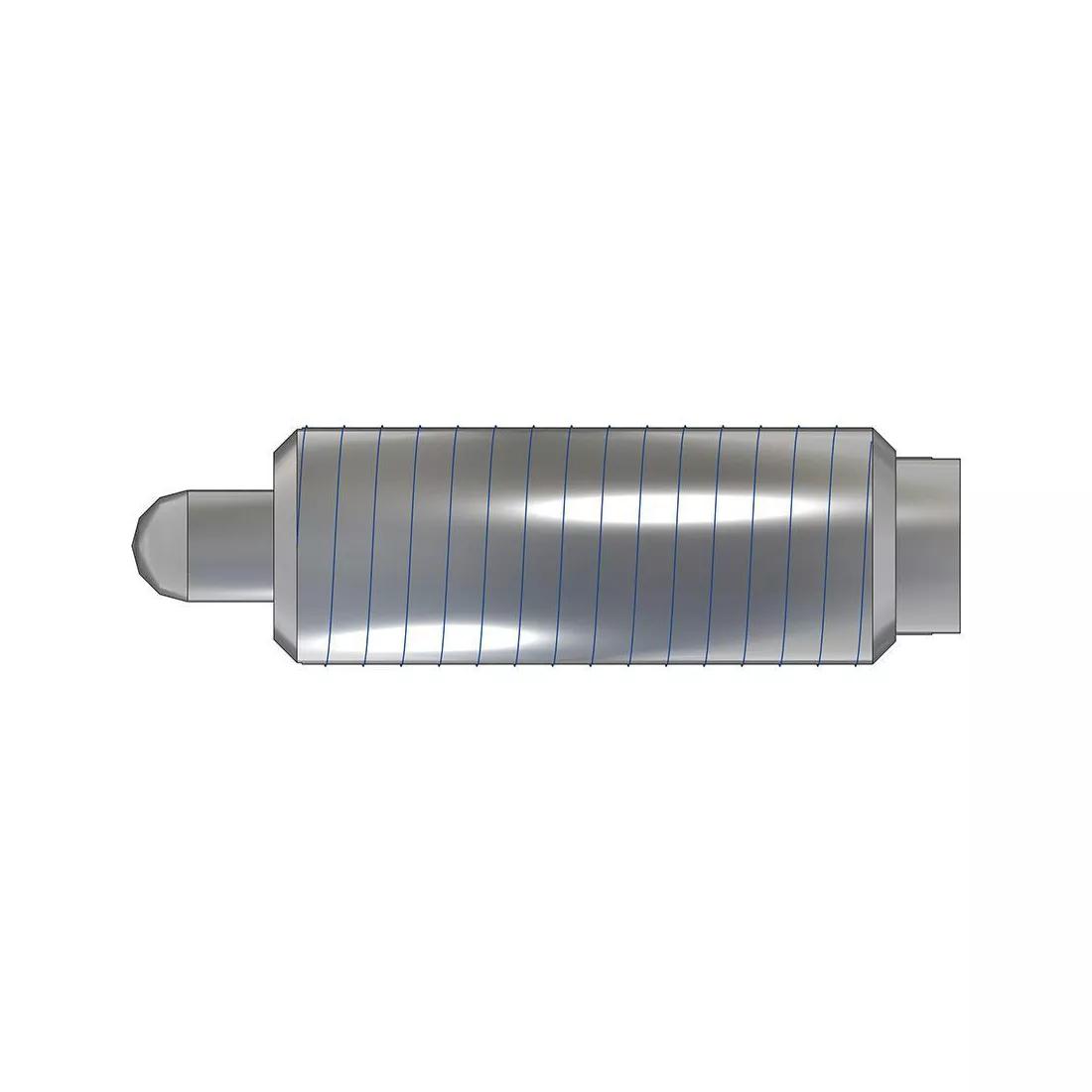

M5 Delrin Ball Nose Spring Plunger
JP-271N features a M5 thread with a Delrin Ball nose. The plunger has a body length of 14.5 mm and an initial end force of 1.4 N
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $7.31 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Body Material | Steel |
|---|---|
| Nose Material | Delrin |
| Initial End Force | 1.4 N |
| Final End Force | 13.3 N |
| Thread Size | M5 |
| Body Length | 0.571 in |
| Ball Diameter | 0.093 in |
| Nose Projection | 0.093 in |
