Spring Anchor; Maximum Load=378.7 kg | 835 lbs, Hole Diameter=4.3 mm | 0.170 in, Overall Length=41.1 mm | 1.62 in, Thread Length=28.7 mm | 1.13 in, Thread Size=3/8-16

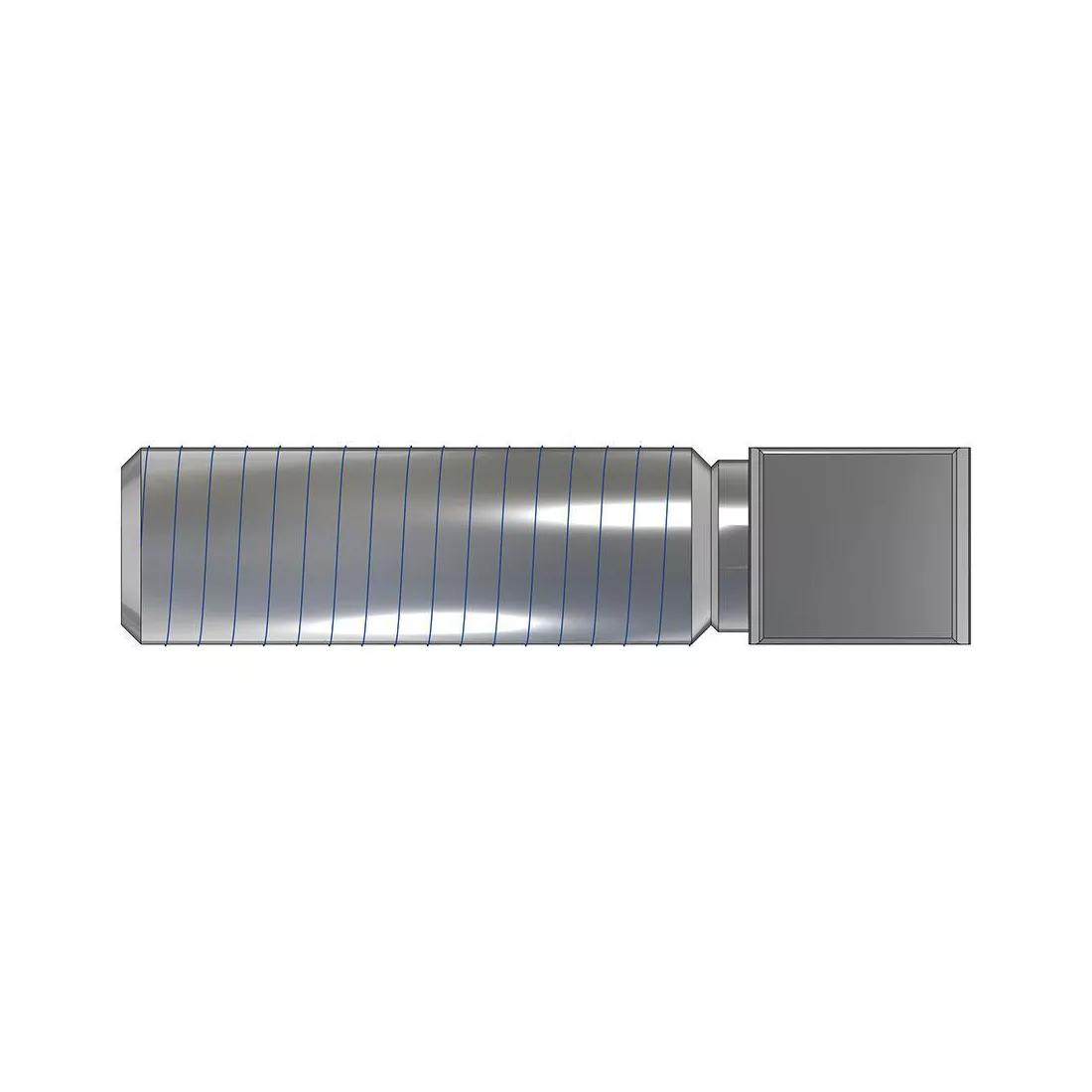

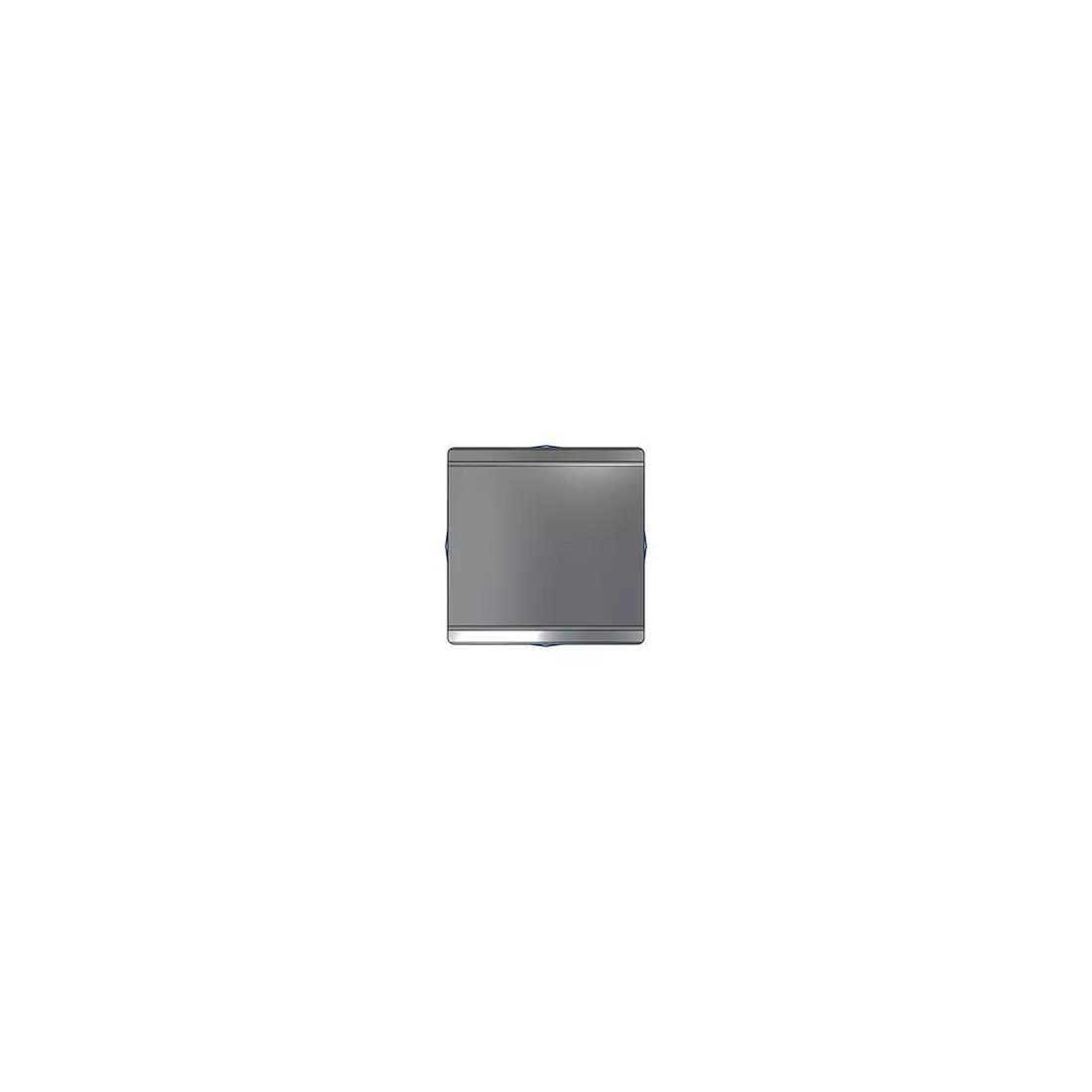

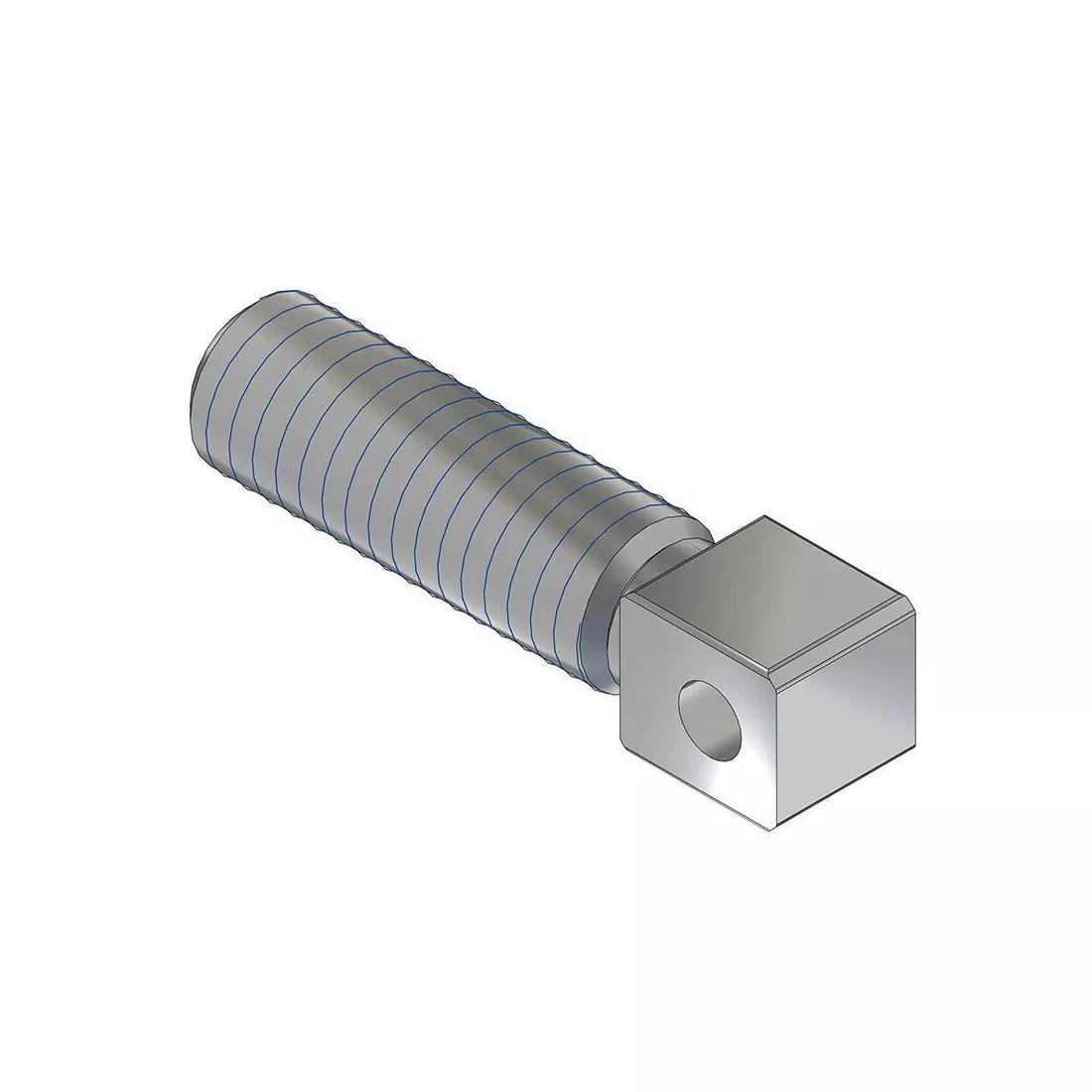

300 Stainless Steel 1.62 in long Spring Anchor offers an economical way to secure the ends of extension springs. This 3/8-16 threaded anchor fits .17 in holes. Manufacturer Part Number: SSA-90
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $17.02 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Overall Length | 1.62 in |
|---|---|
| Hole Diameter | 0.170 in |
| Thread Length | 1.13 in |
| Maximum Load | 835 lbs |
| Thread Size | 3/8-16 |
| Material | 300 Stainless Steel |
| Finish | No Finish |
