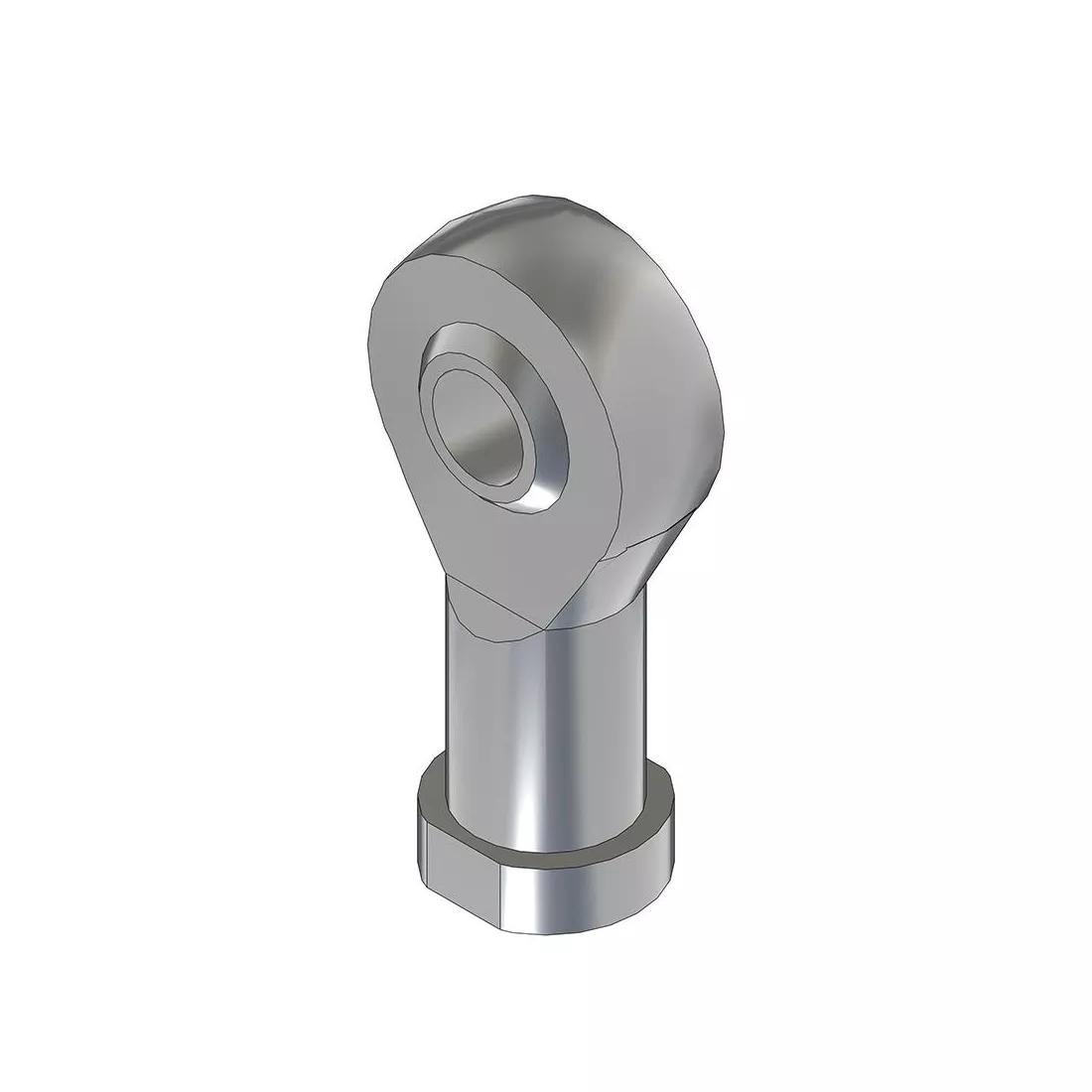

I-534_Isometric Rendering

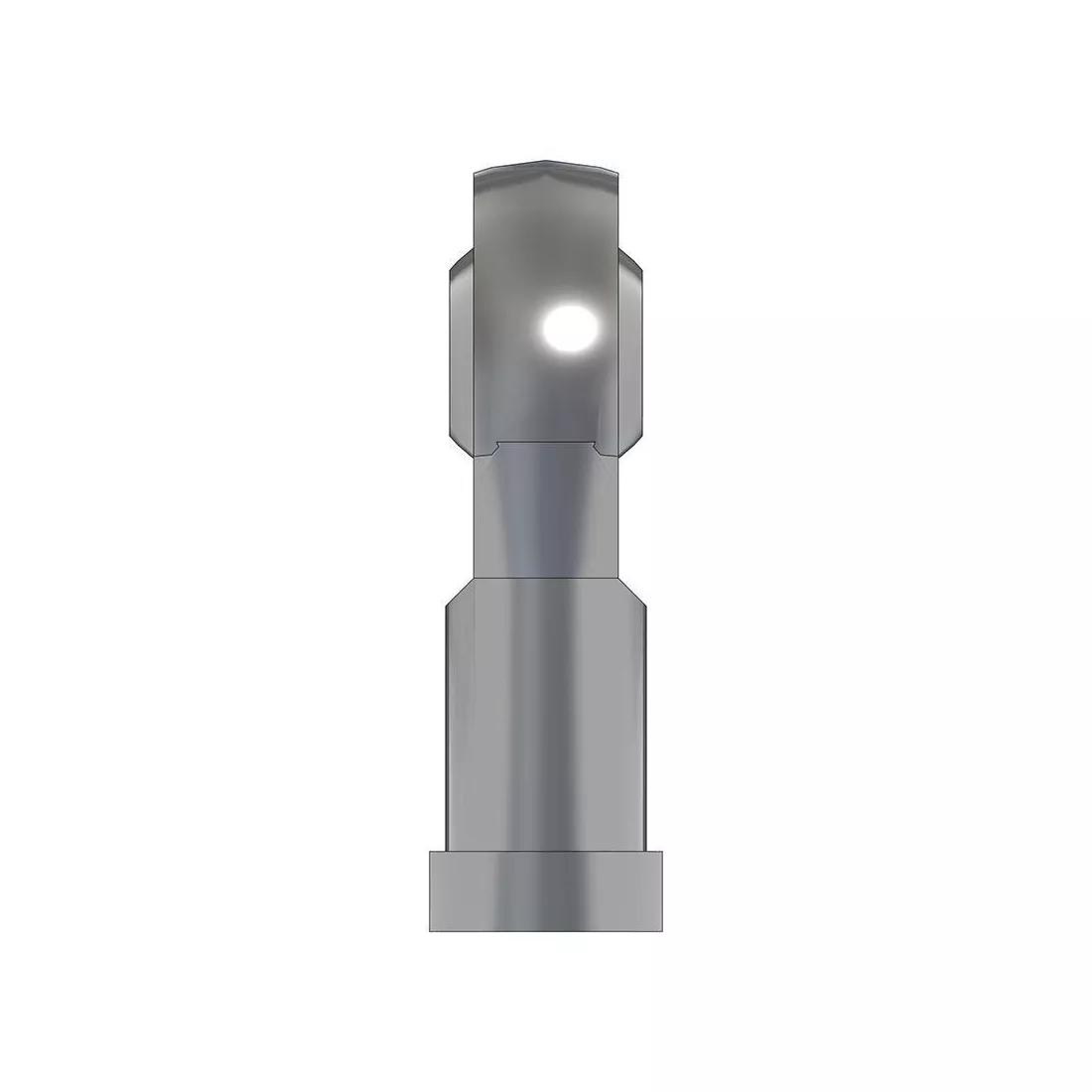

I-534_Right Rendering

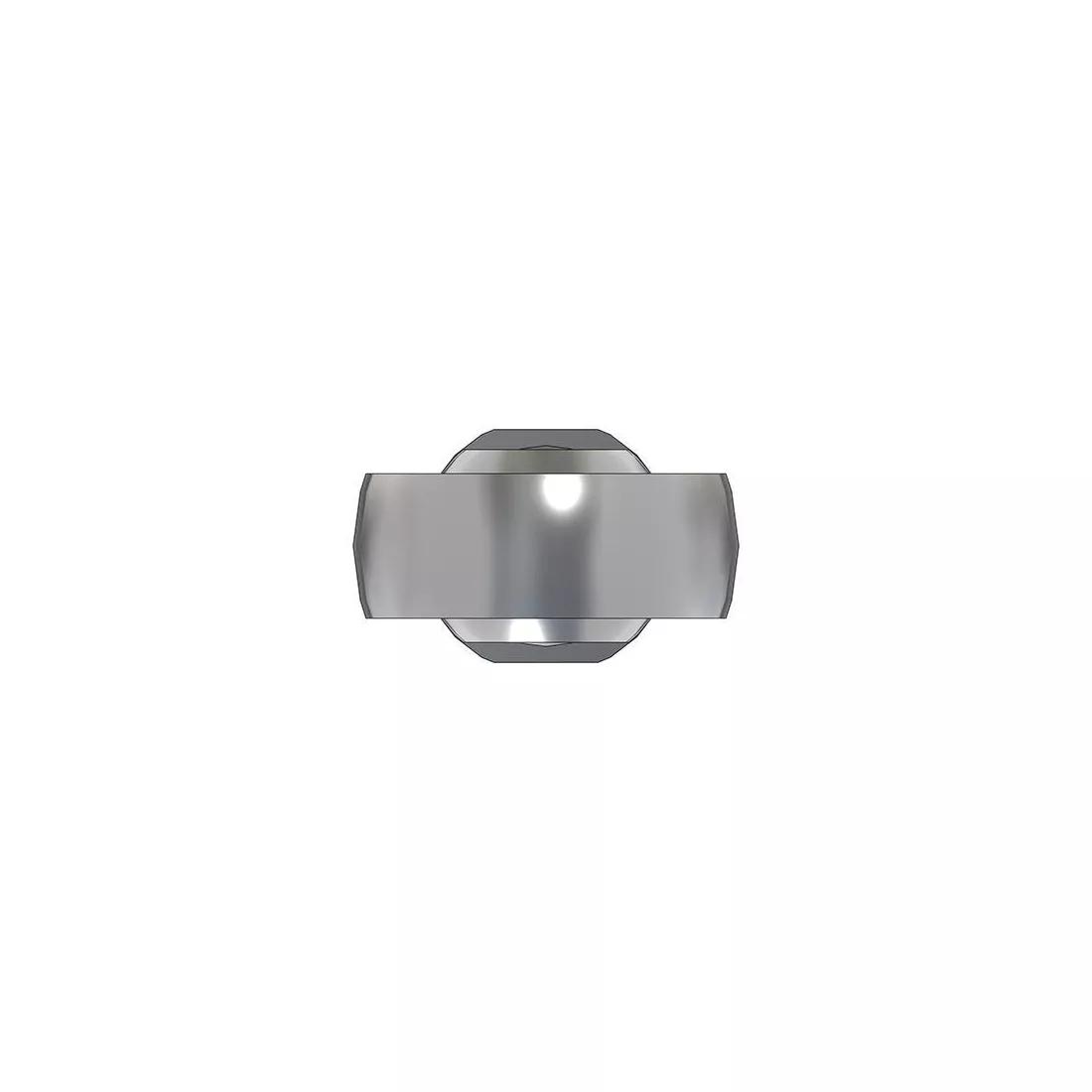

I-534_Top Rendering

Spherical Rod End; Spherical Rod Ends, Rod End Thread Size=M8 x 1.25, Ball Bore Diameter=8 mm | 0.315 in

Item code:

I-534

Request the lead time here For more information Delivery & returns

I-534 Manufacturer Part Number: KBRM-08

SKU price information
Quantity	Unit price
1 +	$2.93

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Specifications

Imperial

Metric

SKU attributes
Brand	Igus
Manufacturer Part Number	KBRM-08
Type	Spherical Rod Ends
Ball Diameter	16 mm
Ball Diameter	.630 in
Ball Bore Diameter	8 mm
Ball Bore Diameter	0.315 in
Ball Housing Diameter	24 mm
Ball Housing Diameter	0.945 in
Ball Width	12 mm
Ball Width	0.472 in
Ball Housing Width	9 mm
Ball Housing Width	0.354 in
Rod End Thread Size	M8 x 1.25
Thread Direction	Right Hand
Rod End Thread Length	16 mm
Rod End Thread Length	.630 in
Rod End to Ball Center Length	36 mm
Rod End to Ball Center Length	36 mm
Liner Material	Unlined
Ball End Type	Plain
