Screw Mounts

Click here for lead time.

Linear motion applications utilizing a ball or acme screw require a screw mount that is designed to withstand both radial and thrust loads generated by the application screw assembly.

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Filter or Search Variants

Use the filters or search below to find what you're looking for

Imperial
Metric
Hide Show Filters
5 results
Product SKUs information
Item Code Price range Availability Compatible Acme Screw Diameter Special Offer Bore Diameter 2 Brand Compatible Ball Screw Diameter View
$305.41 - $305.41 Request the lead time here
Helix Linear
15.9 mm
$299.99 - $299.99 Request the lead time here
Helix Linear
12.7 mm
$415.71 - $415.71 Request the lead time here
Helix Linear
25.4 mm
$390.25 - $390.25 Request the lead time here
Helix Linear
16 mm
$390.25 - $390.25 Request the lead time here
Helix Linear
19.1 mm
Screw Mount; Compatible Acme Screw Diameter=16 mm, Compatible Ball Screw Diameter=15.9 mm

AR-403

Price Range
$305.41 - $305.41

Stock Levels
Request the lead time here
Attributes
  • Brand
    Helix Linear
  • Manufacturer Part Number
    EZM-3010
  • Compatible Ball Screw Diameter
    15.9 mm
  • Hole Size
    0.280 in
  • Base Length
    2.750 in

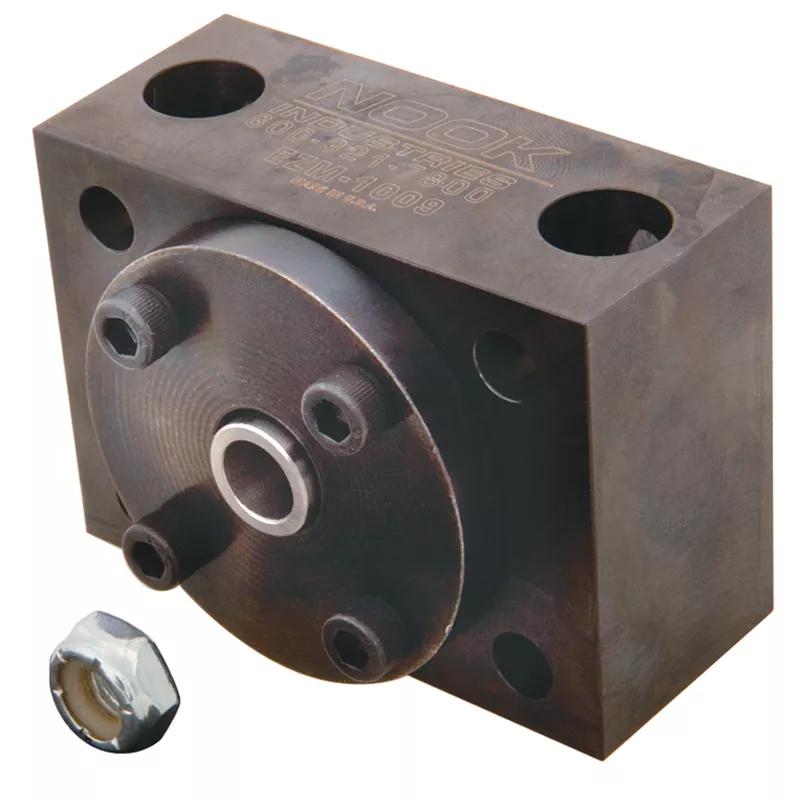

Screw Mount; Compatible Acme Screw Diameter=12.7 mm, Compatible Ball Screw Diameter=12.7 mm

AR-402

Price Range
$299.99 - $299.99

Stock Levels
Request the lead time here
Attributes
  • Brand
    Helix Linear
  • Manufacturer Part Number
    EZM-1009
  • Compatible Ball Screw Diameter
    12.7 mm
  • Hole Size
    0.280 in
  • Base Length
    2.750 in
Screw Mount; Compatible Acme Screw Diameter=25.4 mm, Compatible Ball Screw Diameter=25.4 mm

AR-406

Price Range
$415.71 - $415.71

Stock Levels
Request the lead time here
Attributes
  • Brand
    Helix Linear
  • Manufacturer Part Number
    EZM-2020
  • Compatible Ball Screw Diameter
    25.4 mm
  • Hole Size
    .470 in
  • Base Length
    5.000 in
Screw Mount; Compatible Acme Screw Diameter=19.1 mm, Compatible Ball Screw Diameter=16 mm

AR-404

Price Range
$390.25 - $390.25

Stock Levels
Request the lead time here
Attributes
  • Brand
    Helix Linear
  • Manufacturer Part Number
    EZM-3012
  • Compatible Ball Screw Diameter
    16 mm
  • Hole Size
    0.280 in
  • Base Length
    3.500 in
Screw Mount; Compatible Acme Screw Diameter=22.4 mm, Compatible Ball Screw Diameter=19.1 mm

AR-405

Price Range
$390.25 - $390.25

Stock Levels
Request the lead time here
Attributes
  • Brand
    Helix Linear
  • Manufacturer Part Number
    EZM-3015
  • Compatible Ball Screw Diameter
    19.1 mm
  • Hole Size
    0.280 in
  • Base Length
    3.500 in
