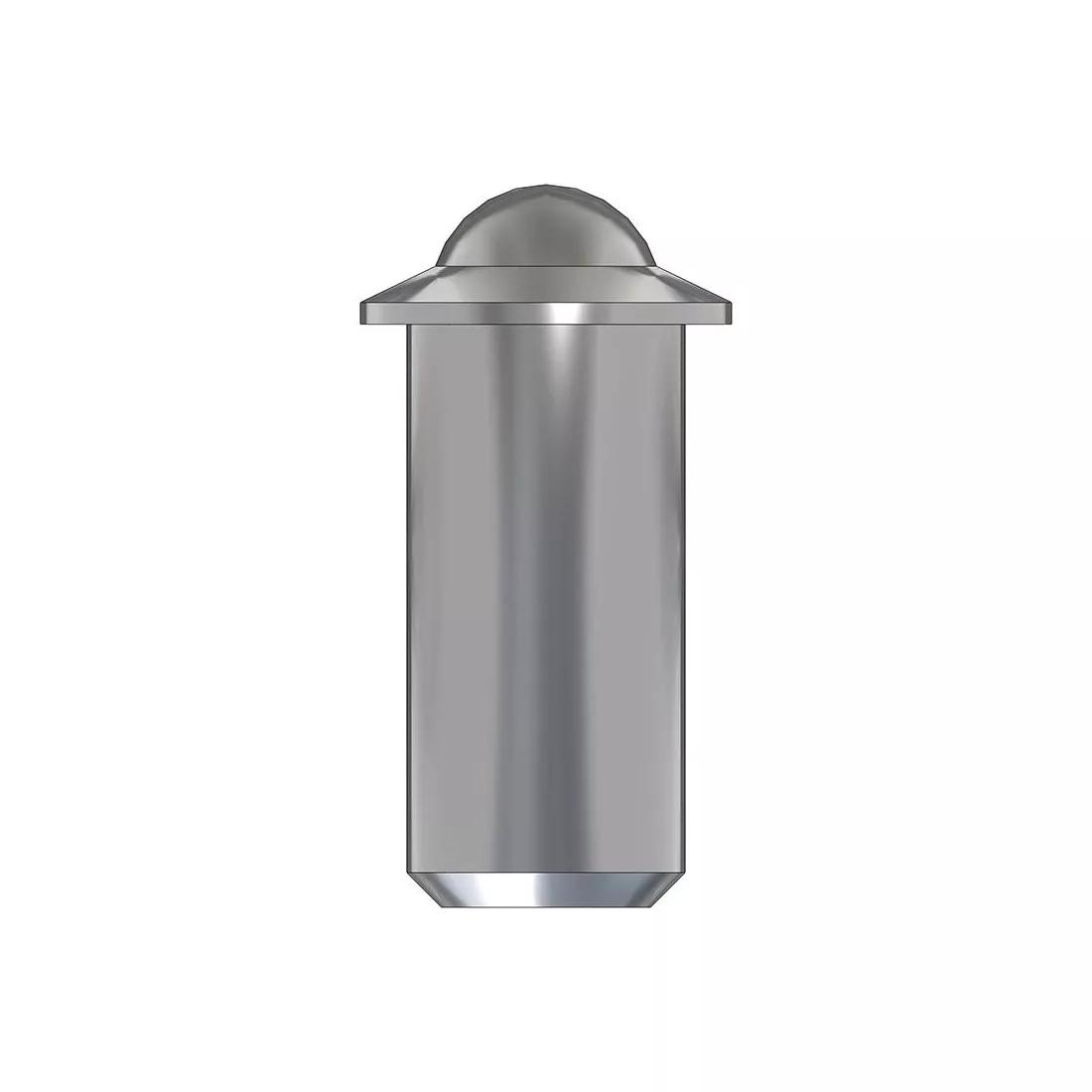

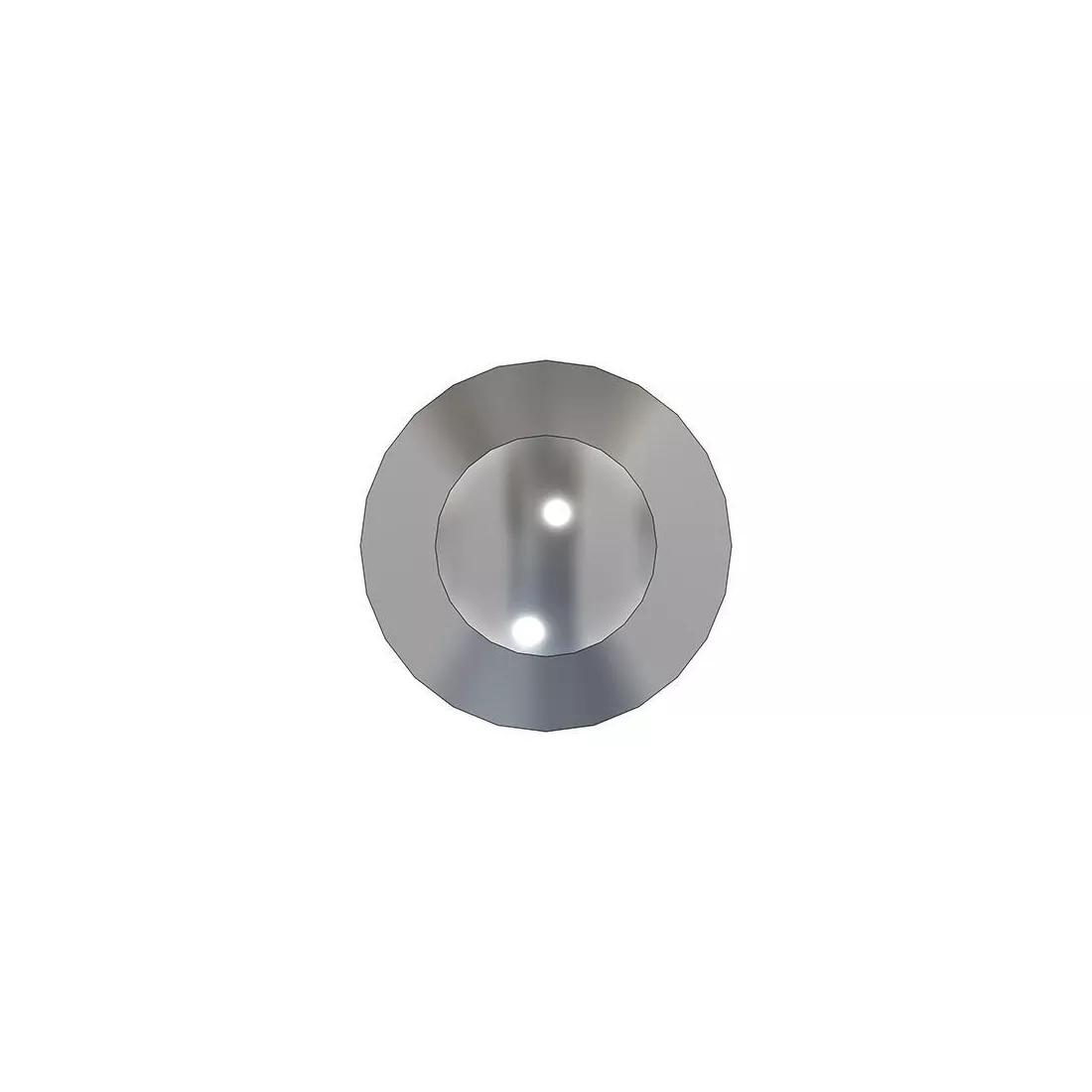

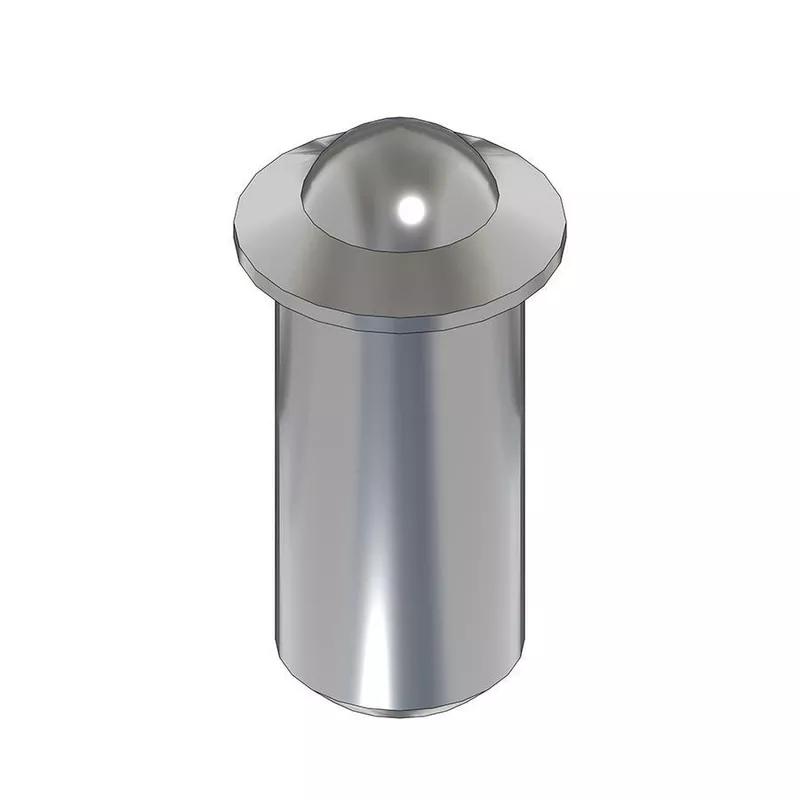

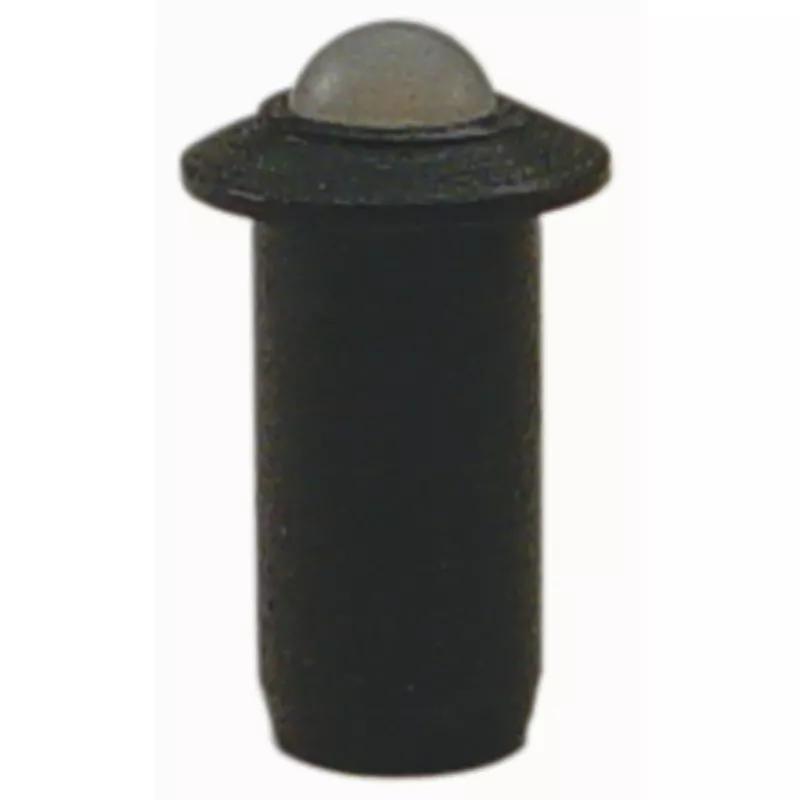

Push Fit Spring Plunger; Body Diameter=9.5 mm | 0.375 in, Body Length=20 mm | .786 in, Final End Force=3.2 kg | 7.000 lbs,
PFB-157 Manufacturer Part Number: DPFB57
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $3.80 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Body Material | Steel |
|---|---|
| Nose Material | Nylon |
| Initial End Force | 2.50 lbs |
| Final End Force | 7.000 lbs |
| Body Length | .786 in |
| Body Diameter | 0.375 in |
| Nose Diameter | 0.312 in |
| Nose Projection | 0.110 in |
| Flange Diameter | 0.500 in |
| Flange Thickness | 0.078 in |
