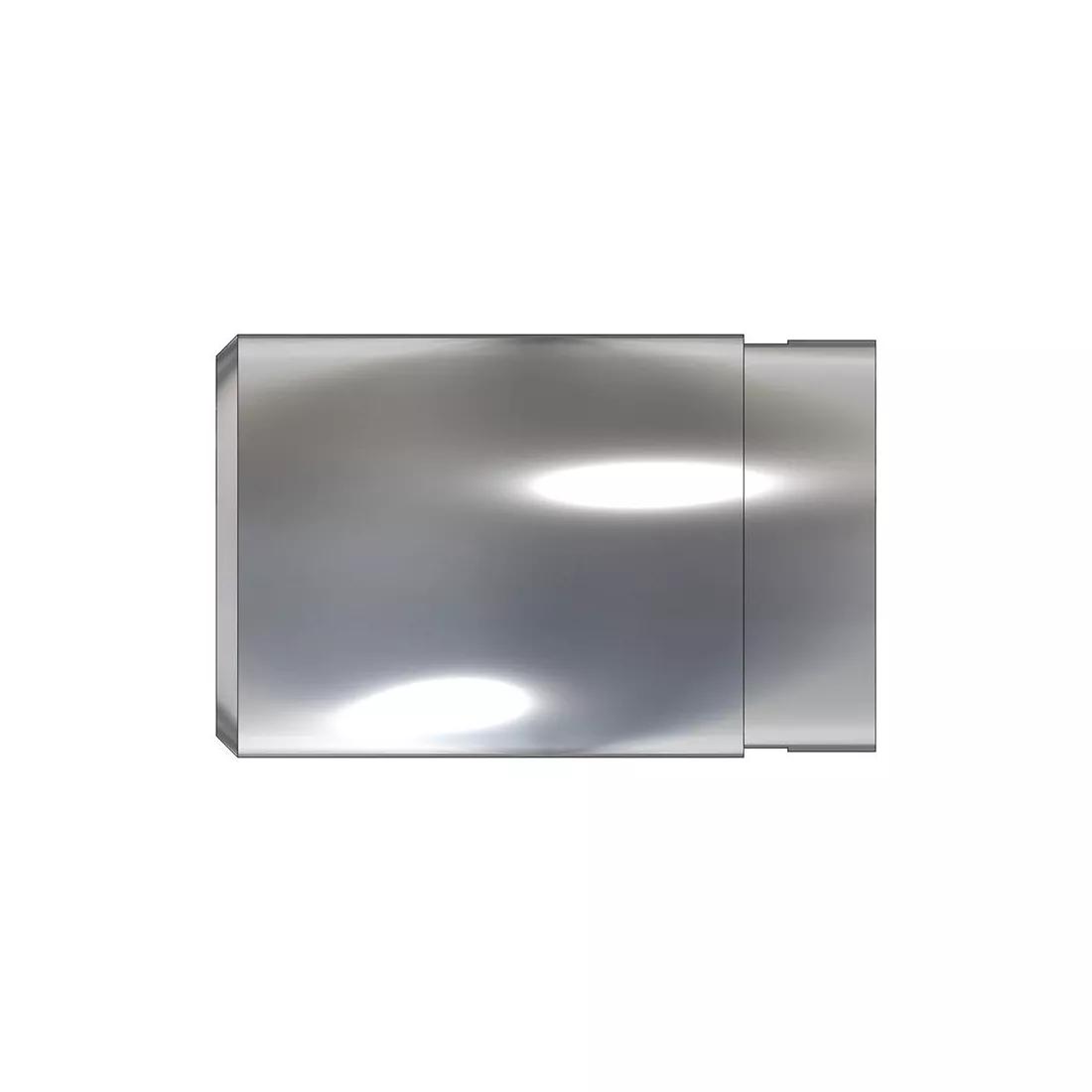

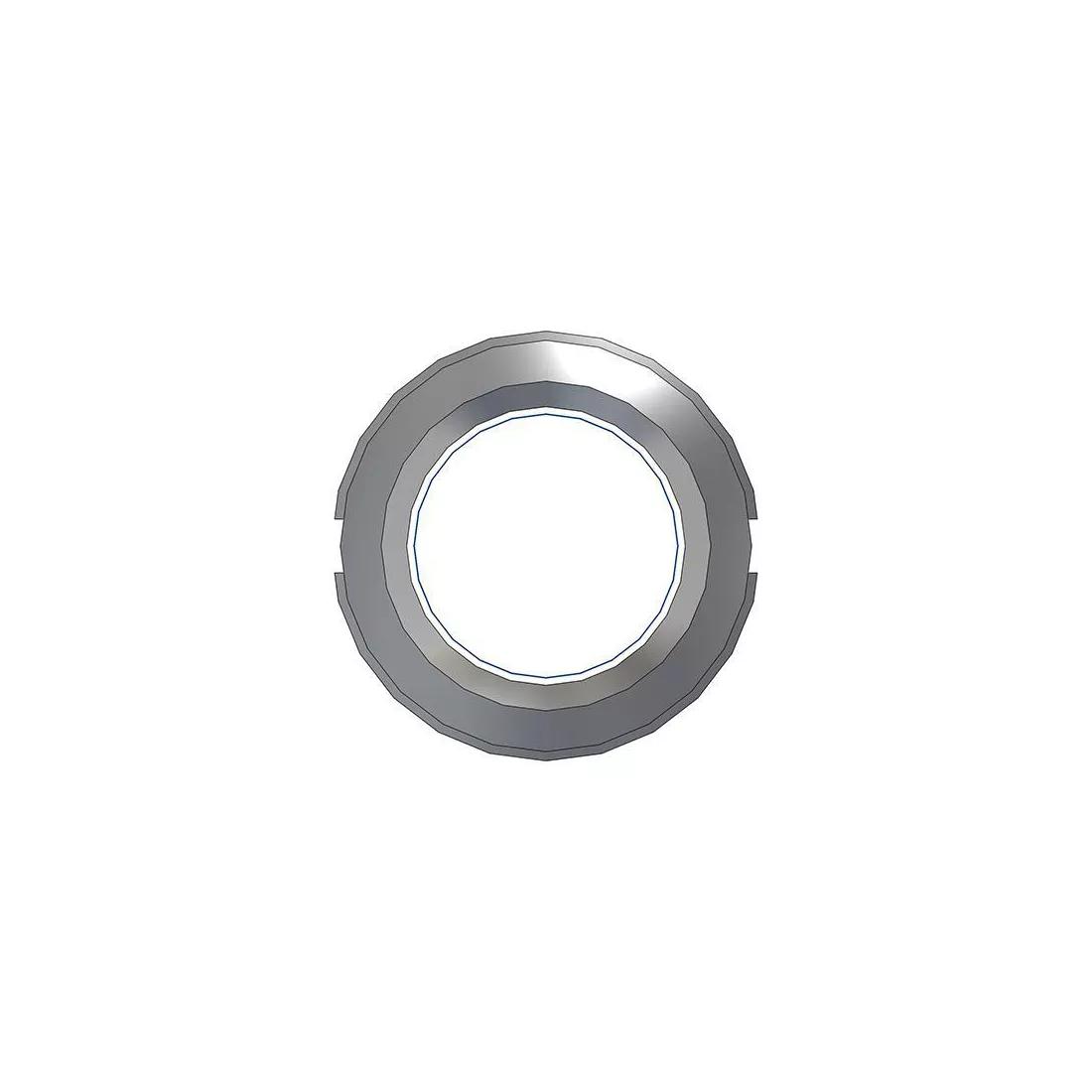

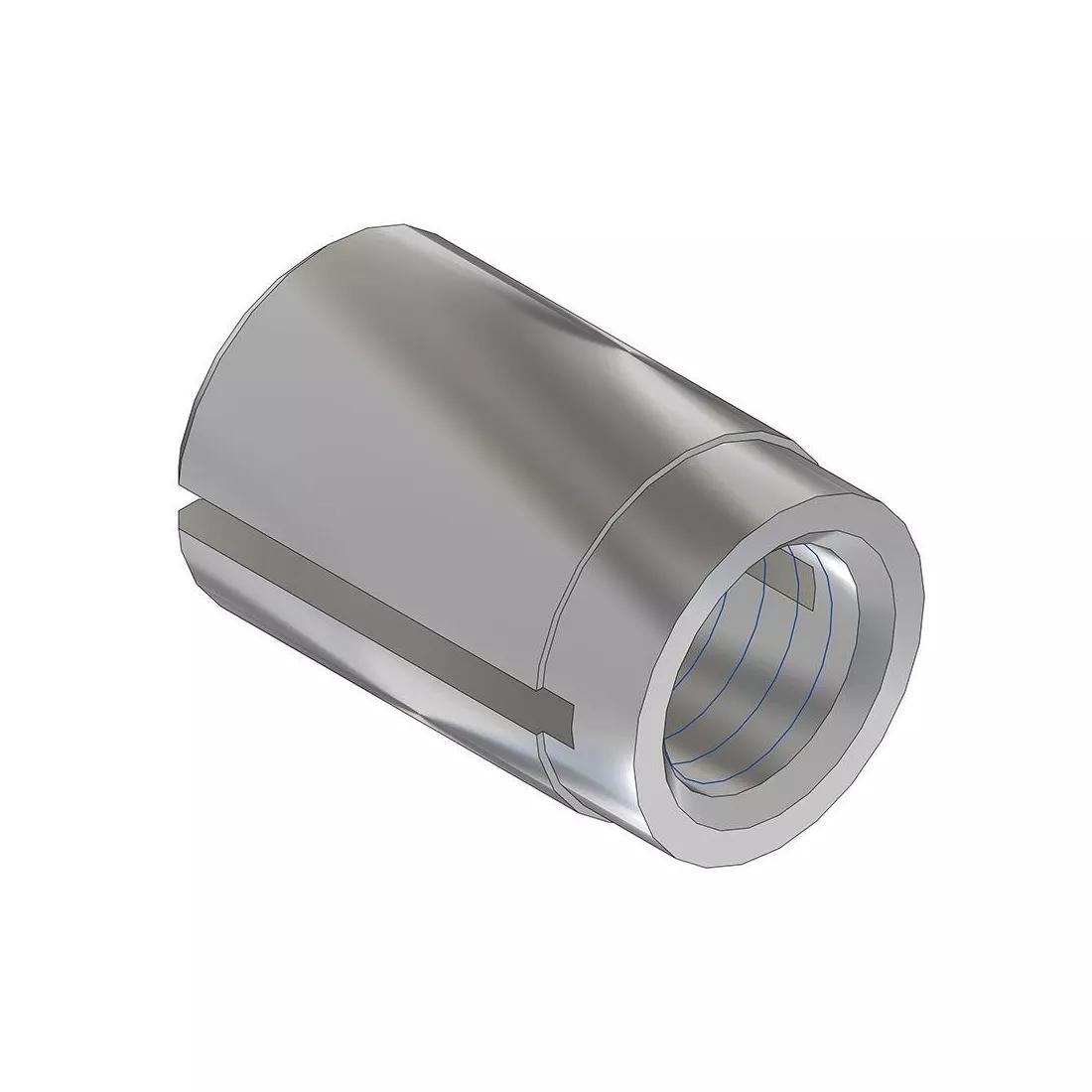

Press-Fit Thread Insert; Compatible Drill Hole Size=7.9 mm, Compatible Hole Diameter=8 mm | .313 in
This Stainless Steel press insert is meant to be inserted into plastic. It has a N/A internal thread and is .500 in long. The starting hole size should be 5/16. Manufacturer Part Number: 240-4-CR
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $3.03 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | E-Z Lok |
|---|---|
| Manufacturer Part Number | 240-4-CR |
| Type | Keylocking Thread Inserts |
| Head Type | Flush Head |
| Overall Length | 0.500 in |
| Compatible Drill Hole Size | 7.9 mm |
| Compatible Hole Diameter | .313 in |
| Body Diameter | .326 in |
| Maximum Internal Thread Size | 1/4-20 |
| Full Material | 303 Stainless Steel |
| Material | Stainless Steel |
