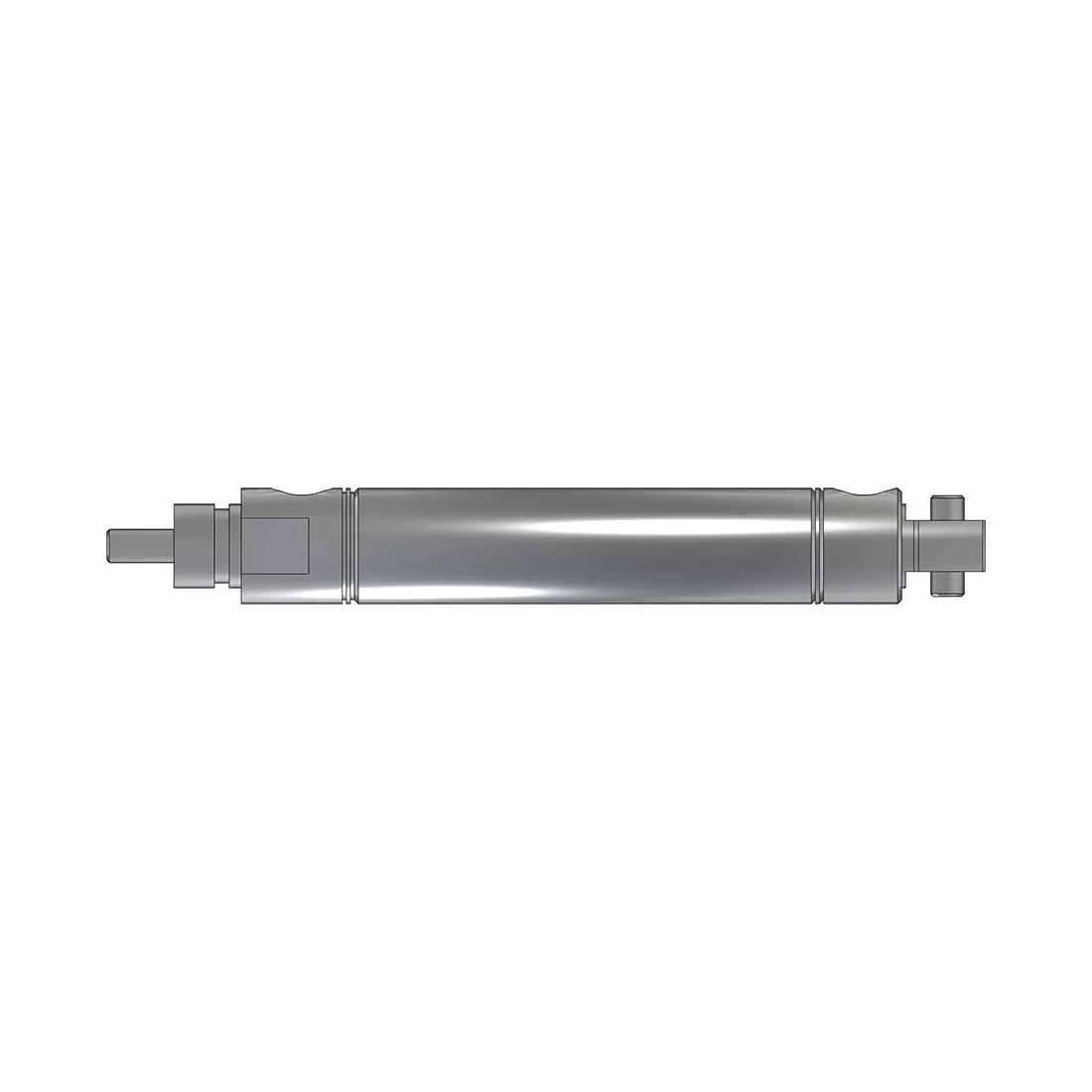

Pneumatic Cylinder; Pneumatic Cylinders, Bore Diameter=22.2 mm | 0.875 in, Stroke Length=50.8 mm | 2.000 in
Double End Pneumatic Cylinder Manufacturer Part Number: NCMC075-0200
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $26.11 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | SMC |
|---|---|
| Manufacturer Part Number | NCMC075-0200 |
| Type | Pneumatic Cylinders |
| Mount Style | Rear Pivot |
| Maximum Operating Pressure | 250 PSI |
| Stroke Length | 2.000 in |
| Bore Diameter | 0.875 in |
| Body Diameter | 0.859 in |
| Mounting Thread Size | 5/8-18 |
| Port Thread Size | 1/8 |
| Rod End Thread Size | 1/4-28 |
| Width Across Flats | 0.750 in |
| Body Material | Stainless Steel |
| Tube Material | Stainless Steel |
