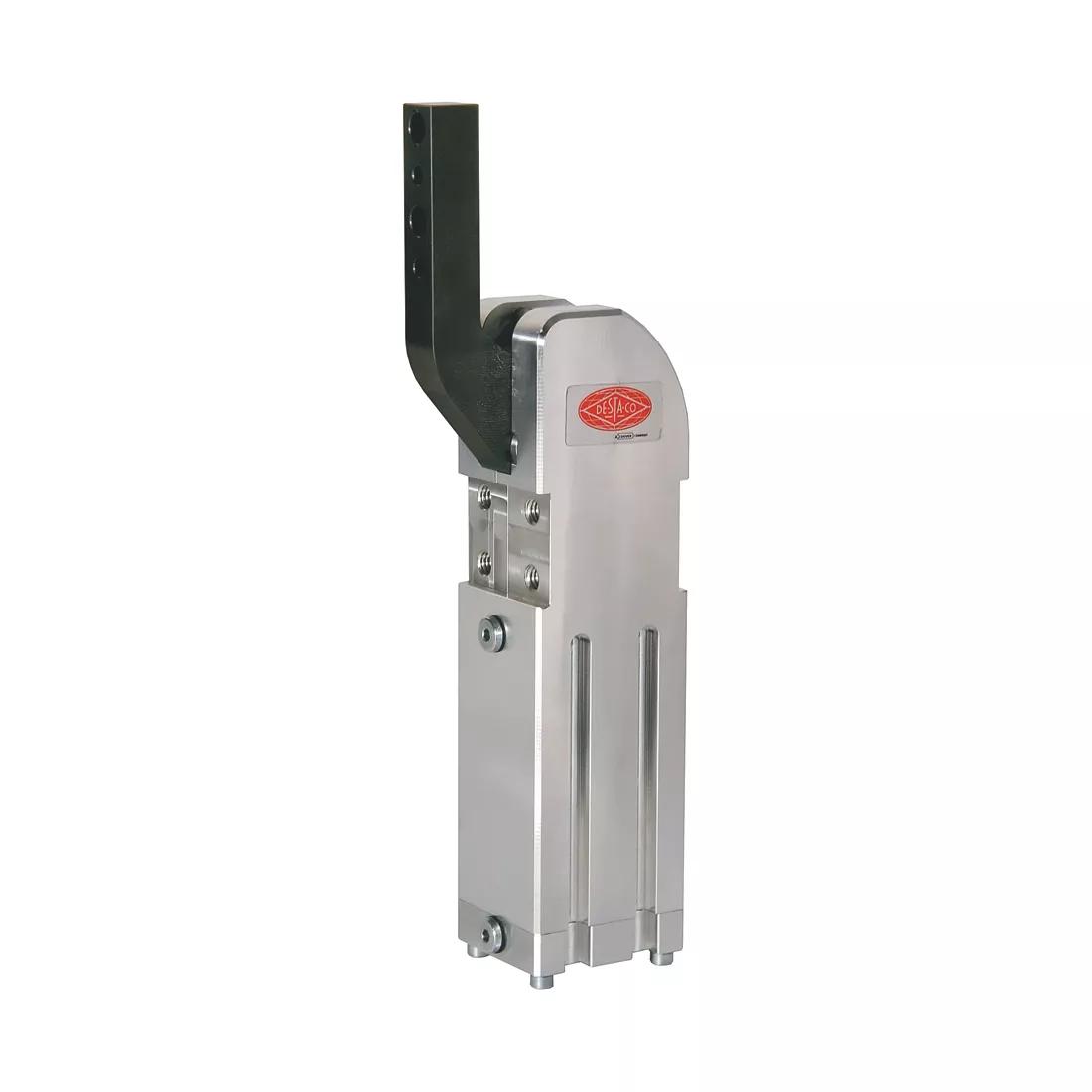

Pneumatic Block Hold Down Clamp; Holding Capacity=1570 N, Arm Movement=90 °, Port Thread Size=M5
119.0 mm H, Vertical mounted Block Pneumatic Hold Down Clamp can hold 354 lbs in work holding applications. Manufacturer Part Number: 81L16-14100
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $553.03 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 81L16-14100 |
| Holding Capacity | 1570 N |
| Port Thread Size | M5 |
| Mounting Orientation | Vertical |
| Hole Spacing Length | 0.787 in |
| Hole Spacing Width | 0.472 in |
| Arm Height | 3.13 in |
| Arm Length | 1.969 in |
| Arm Type | Solid Bar |
| Arm Configuration | Vertical |
| Arm Movement | 90 |
| Overall Height | 4.685 in |
| Overall Length | 1.181 in |
| Overall Width | 1.12 in |
| Body Material | Steel;Aluminum |
| Type | Pneumatic Clamps |
