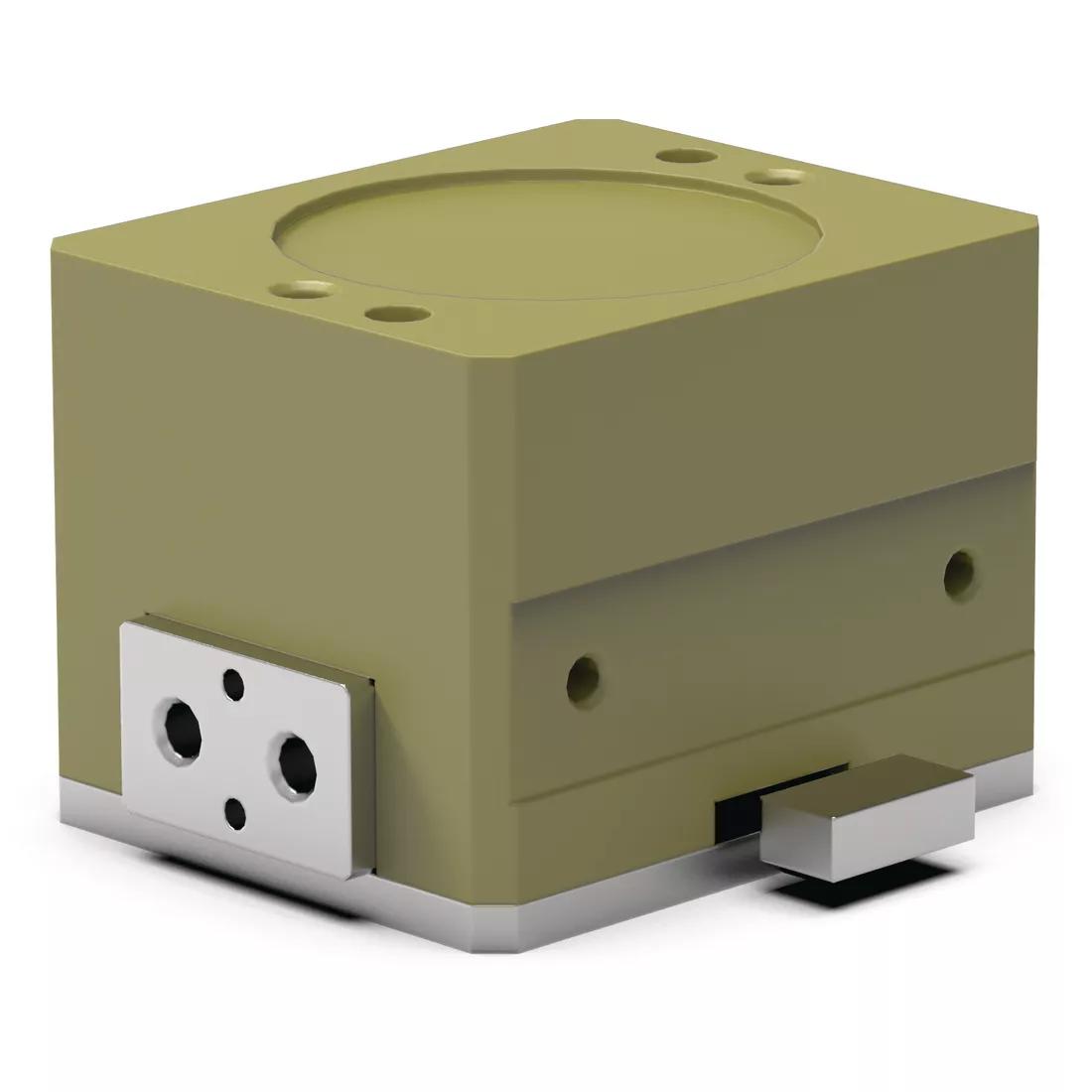

Pneumatic Gripper - Holding Force 177.9 N | 40 lbf; Stroke Length 6.4 mm | 0.250 in
This gripper is the most widely used in the industry and supplies a high gripforce to weight ratio. Powered by Robohand's patented double wedge design, this gripper offers a rugged yet compact design. Internally sealed for use in hostile environments. Manufacturer Part Number: RP-11
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $645.00 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Robohand |
|---|---|
| Manufacturer Part Number | RP-11 |
| Application(s) | Automotive Assembly |
| Minimum Operating Pressure | 2.8 bar |
| Maximum Operating Pressure | 100 PSI |
| Bore Diameter | 1.000 in |
| Stroke Length | 0.250 in |

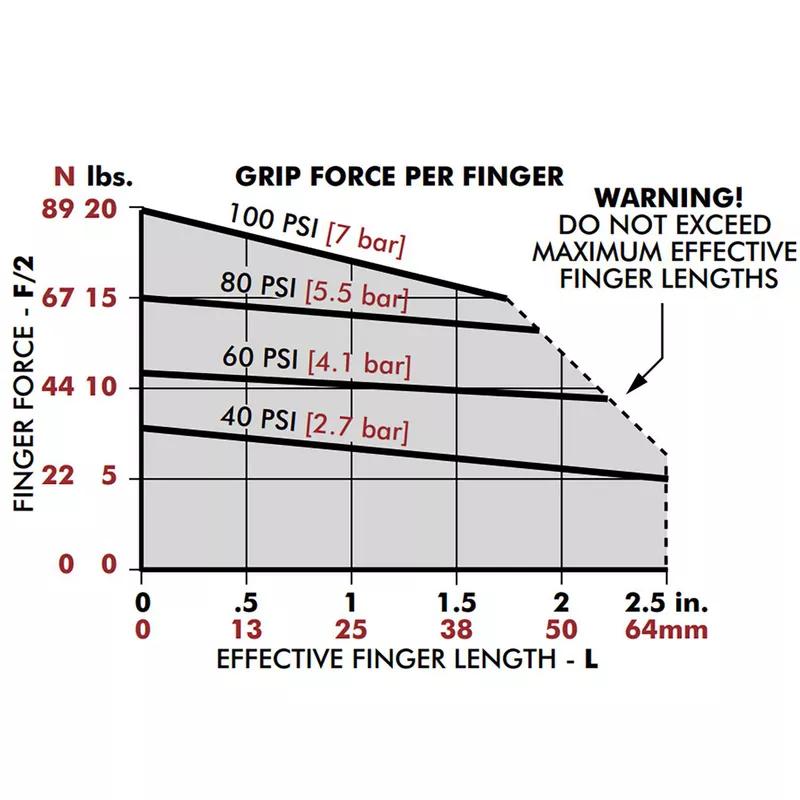

| Holding Force | 40 lbf |
| Actuation Time | 0.13 s |
| Accuracy Tolerance | 0.002 |
| Jaw Operation | Synchronous |
| Spring Assist | Yes |
| Direct Connect | No |
| Optional Sensor | Yes |
| Minimum Operating Temperature | -30 °F |
| Maximum Operating Temperature | 180 °F |
| Special Offer | New |
