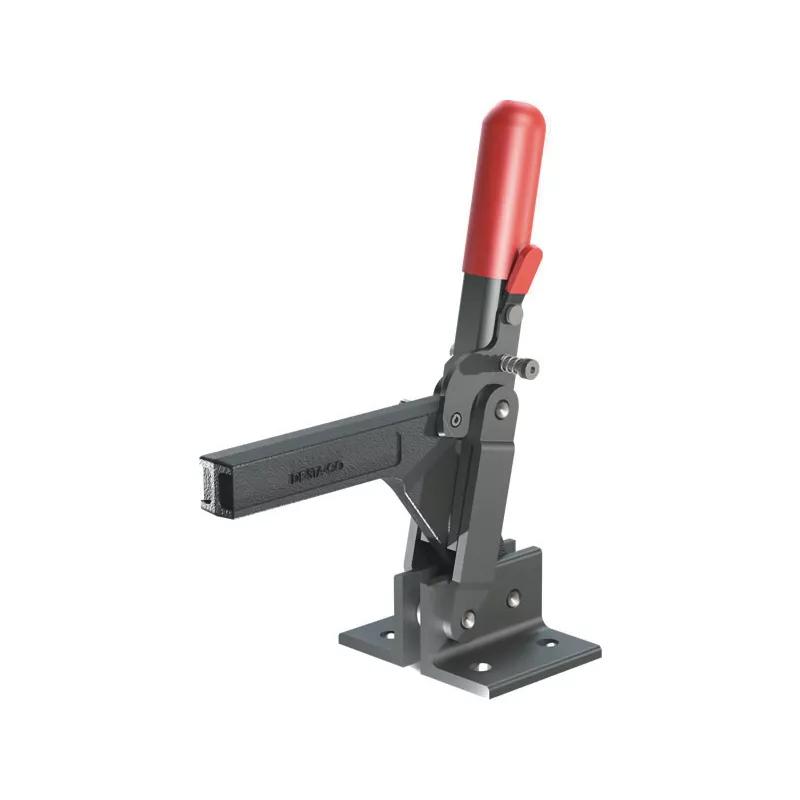

Manual Vertical Hold Down Clamp - Holding Capacity - 5115.5 N | 1150 lbf; Height Under Arm - 85.6 mm | 3.370 in; Base Type - Flanged; Bar Type - Solid
8.70 inH x 6.33 inL Vertical Manual Hold Down Clamp has a Solid and Flanged base providing 1150 lbf of holding force while saving work space. Manufacturer Part Number: 5110-R
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $88.53 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 5110-R |
| Holding Capacity | 1150 lbf |
| Base Length | 2.50 in |
| Base Width | 2.76 in |
| Overall Height | 8.70 in |
| Overall Length | 6.33 in |
| Arm Length | 3.83 in |
| Height Under Arm | 3.370 in |
| Arm Movement | 74 |
| Handle Movement | 138 |
| Mounting Hole Diameter | 0.350 in |
| Mounting Hole Spacing Along Length | 1.500 in |
| Mounting Hole Spacing Along Width | 2.000 in |
| Base Type | Flanged |
| Arm Type | Solid |
| Body Material | Steel |
