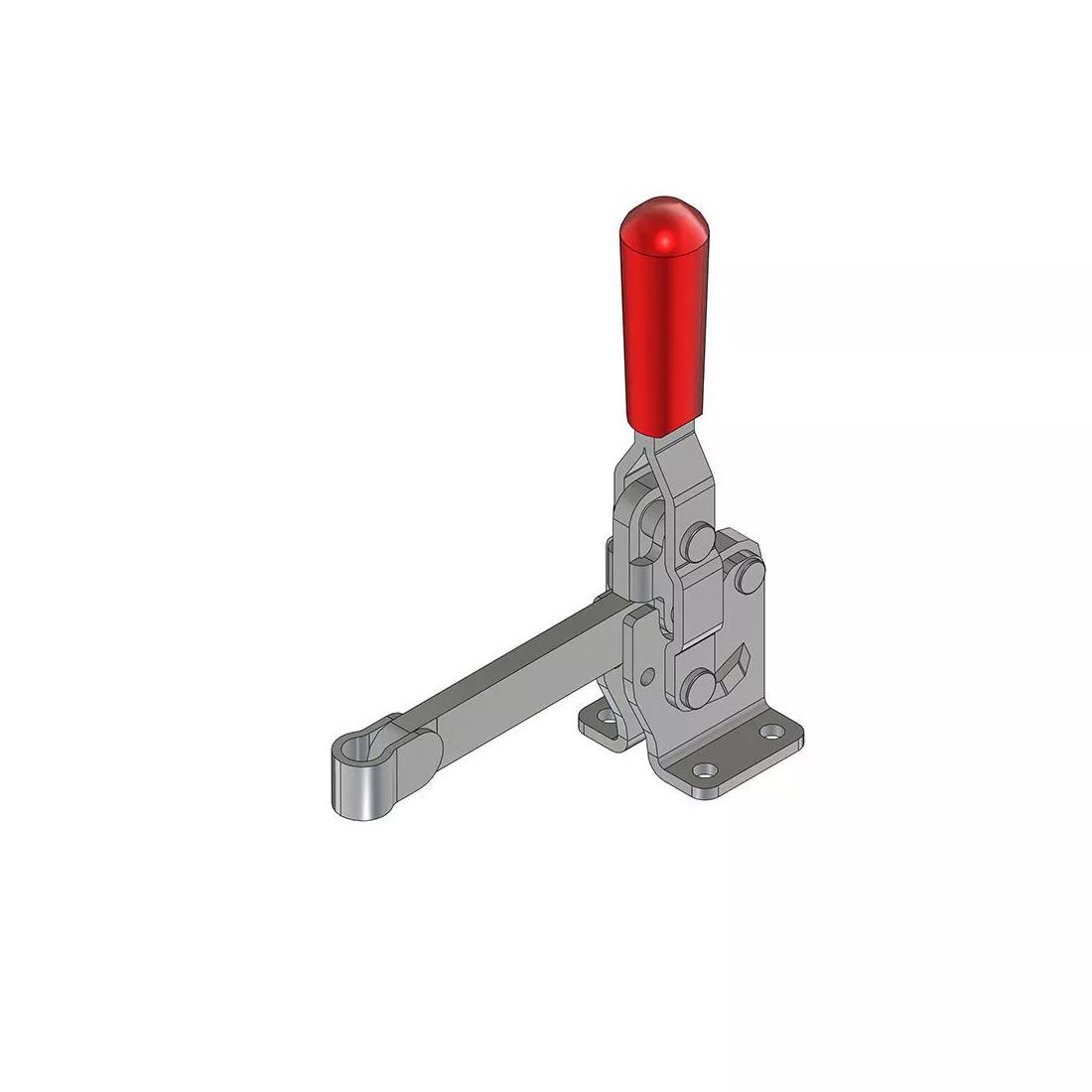

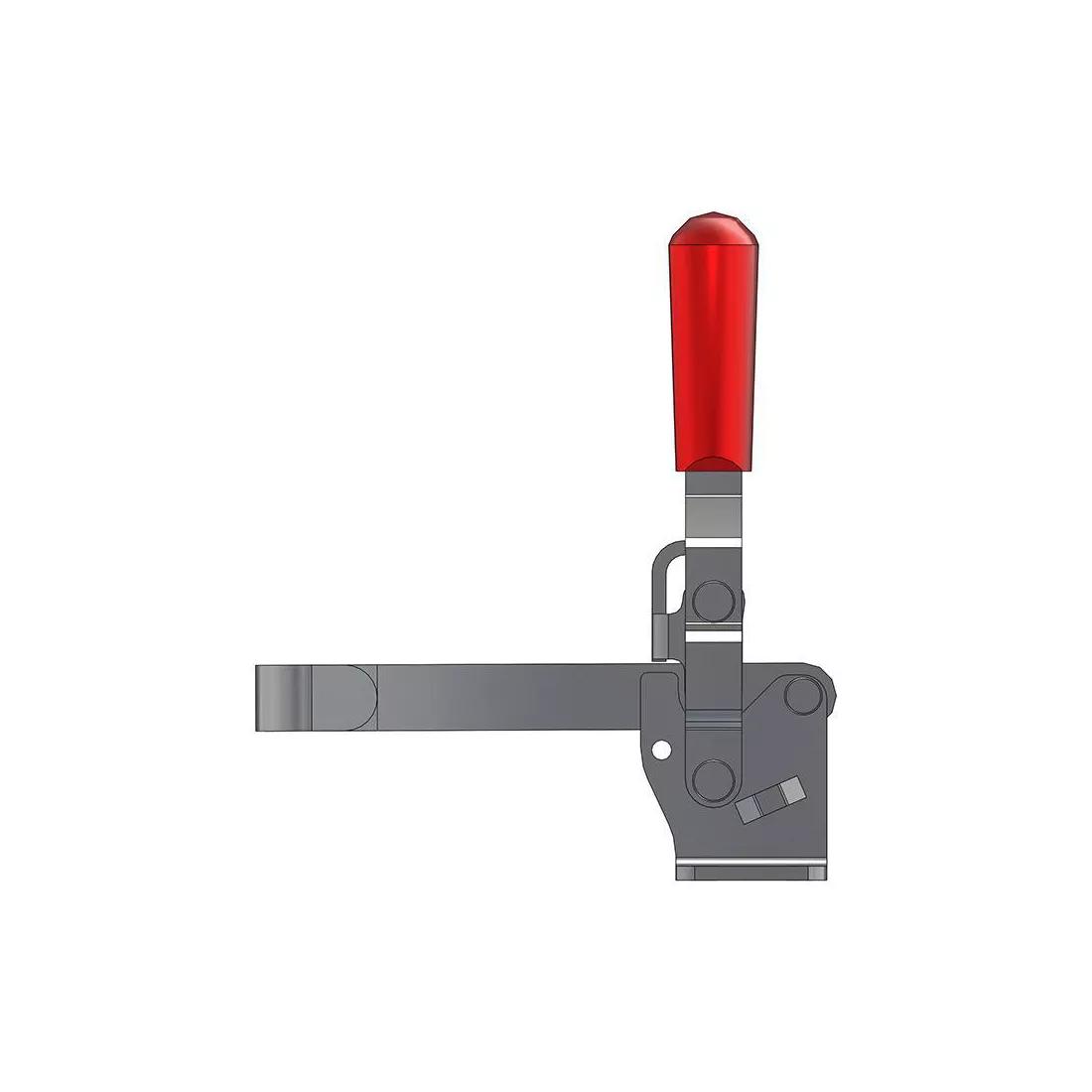

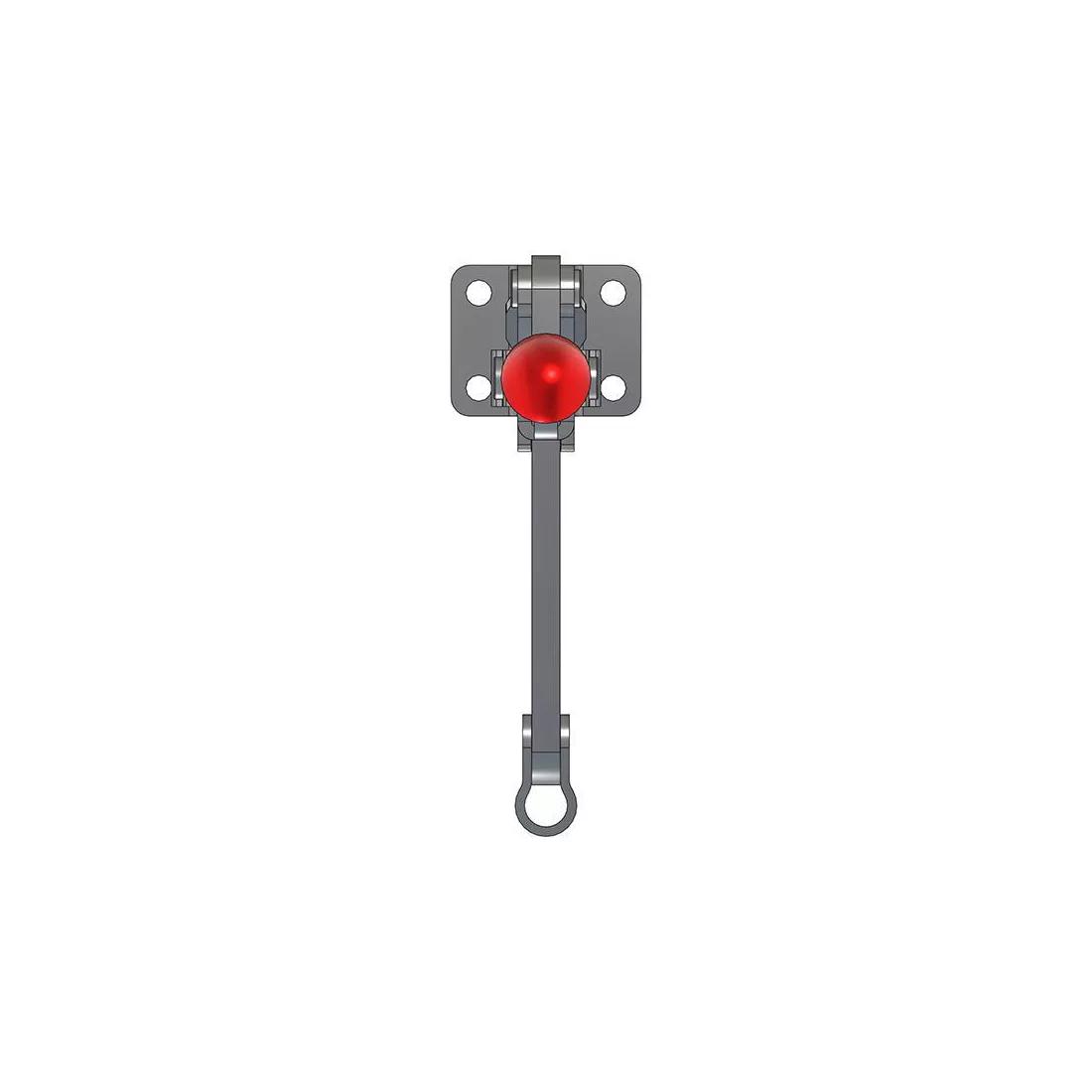

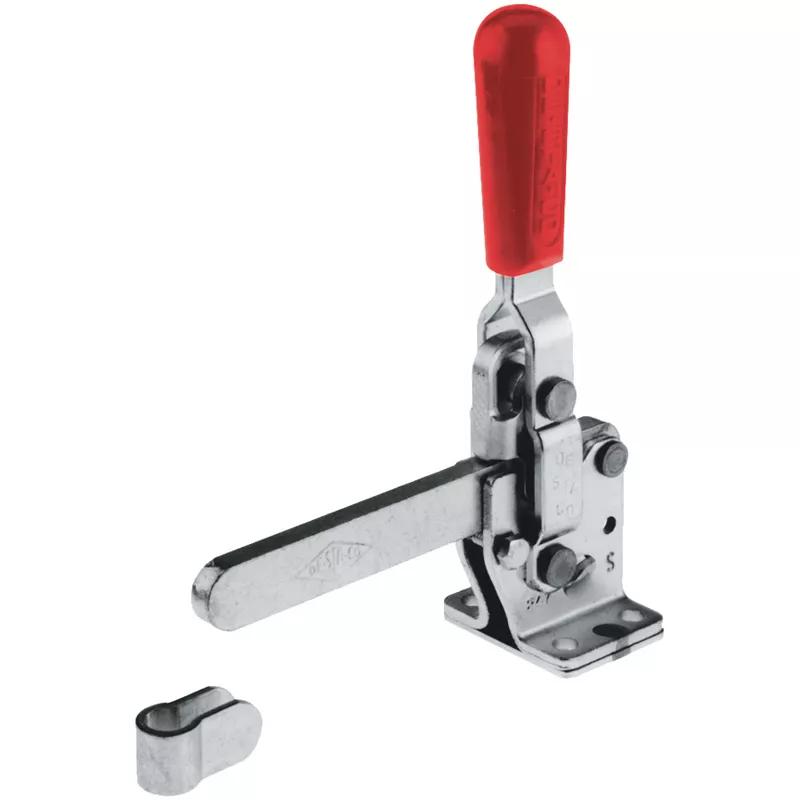

Manual Vertical Hold Down Clamp - Holding Capacity - 4448.2 N | 1000 lbf; Height Under Arm - 50.8 mm | 2.000 in; Base Type - Flanged; Bar Type - Solid
8.86 inH x 6.89 inL Vertical Manual Hold Down Clamp has a Solid and Flanged base providing 1000 lbf of holding force while saving work space. Manufacturer Part Number: 247-S
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $57.69 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 247-S |
| Holding Capacity | 1000 lbf |
| Base Length | 2.00 in |
| Base Width | 2.52 in |
| Overall Height | 8.86 in |
| Overall Length | 6.89 in |
| Arm Length | 4.89 in |
| Height Under Arm | 2.000 in |
| Arm Movement | 120 |
| Handle Movement | 67 |
| Mounting Hole Diameter | 0.350 in |
| Mounting Hole Spacing Along Length | 1.260 in |
| Mounting Hole Spacing Along Width | 1.770 in |
| Base Type | Flanged |
| Arm Type | Solid |
| Spindle Thread Size | M12,1/2-13 |
| Body Material | Steel |
| Includes | Bolt Retainer |
