Manual Vertical Hold Down Clamp - Holding Capacity - 1668.1 N | 375 lbf; Height Under Arm - 31.8 mm | 1.250 in; Base Type - Flanged; Bar Type - U-Bar

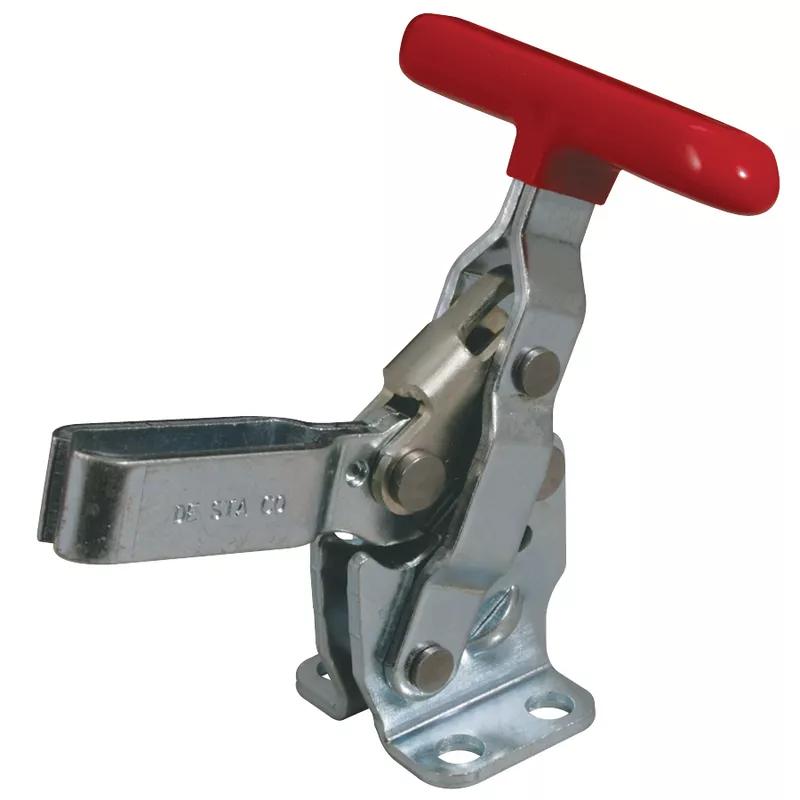

4.43 inH x 3.52 inL Vertical Manual Hold Down Clamp has a U-Bar and Flanged base providing 375 lbf of holding force while saving work space. Manufacturer Part Number: 207-TU
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $36.04 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 207-TU |
| Holding Capacity | 375 lbf |
| Base Length | 1.38 in |
| Base Width | 1.73 in |
| Overall Height | 4.43 in |
| Overall Length | 3.52 in |
| Arm Length | 2.14 in |
| Height Under Arm | 1.250 in |
| Arm Movement | 99 |
| Handle Movement | 57 |
| Mounting Hole Diameter | 0.280 in |
| Mounting Hole Spacing Along Length | 0.750 in |
| Mounting Hole Spacing Along Width | 1.250 in |
| Base Type | Flanged |
| Arm Type | U-Bar |
| Spindle Thread Size | M8,5/16-18 |
| Body Material | Steel |
| Includes | (2) Flanged Washers |
