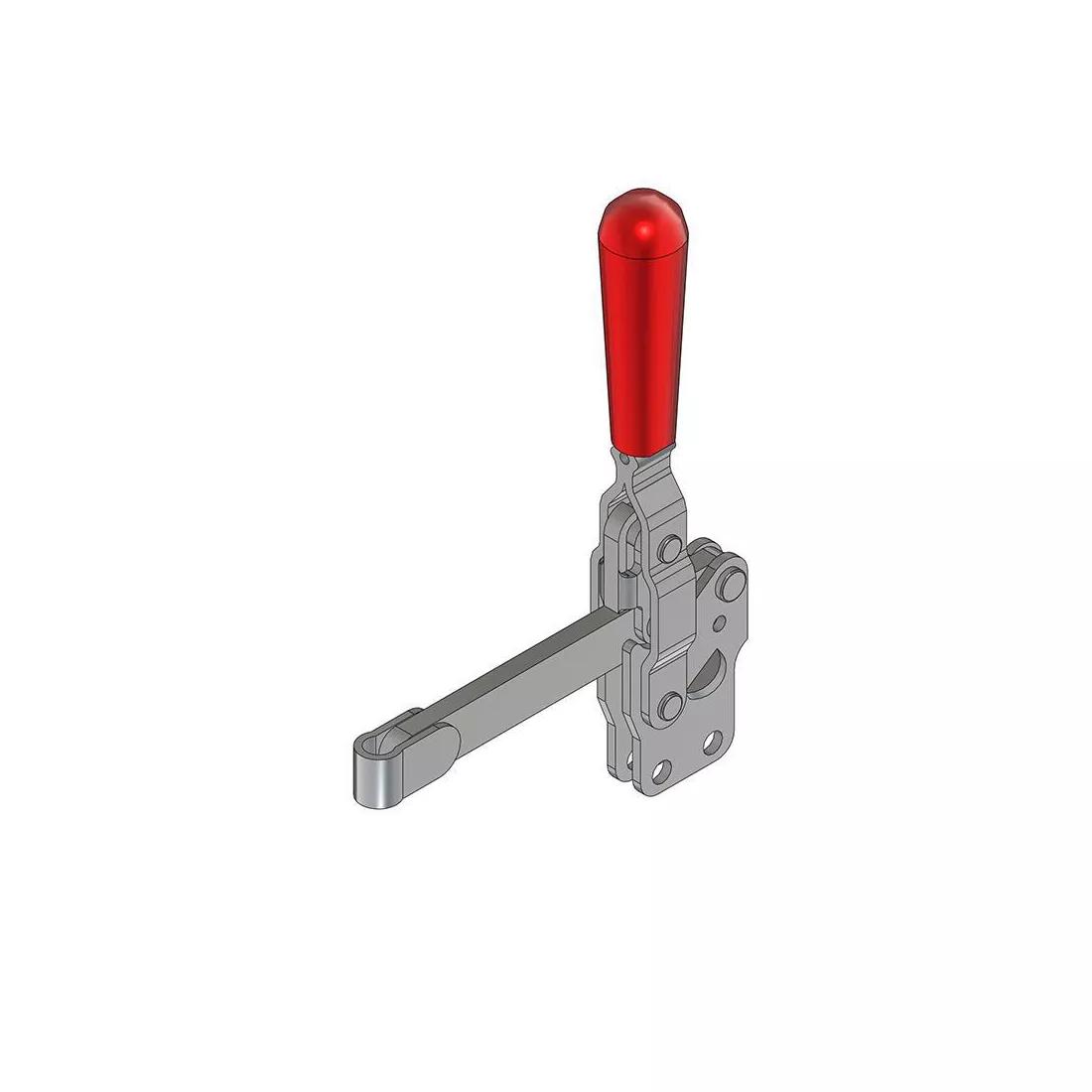

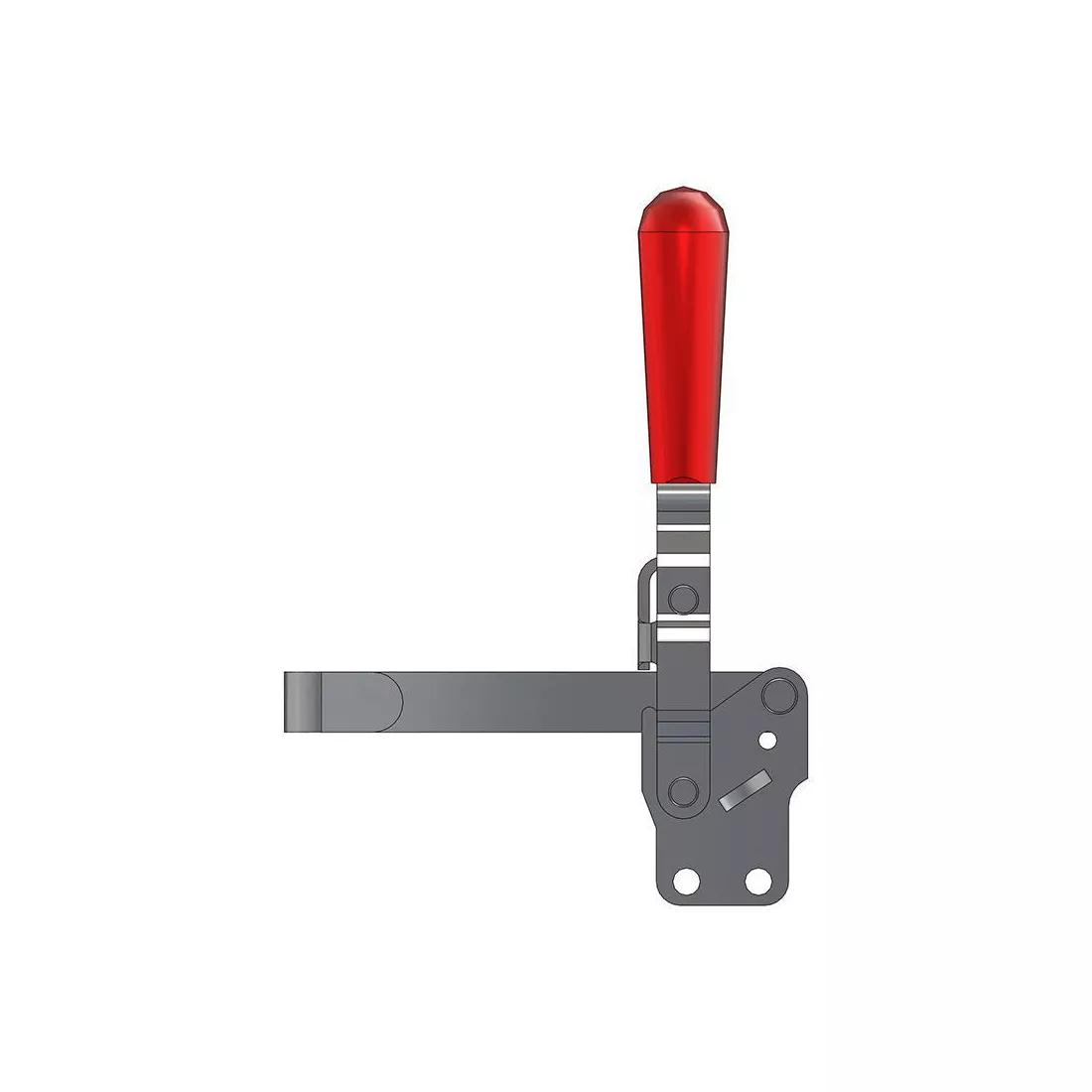

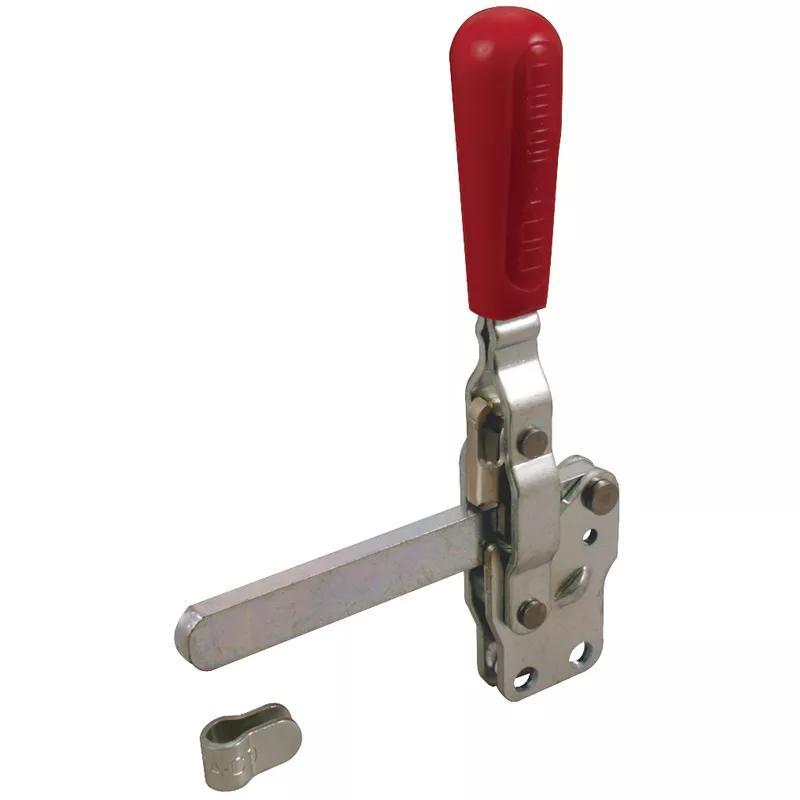

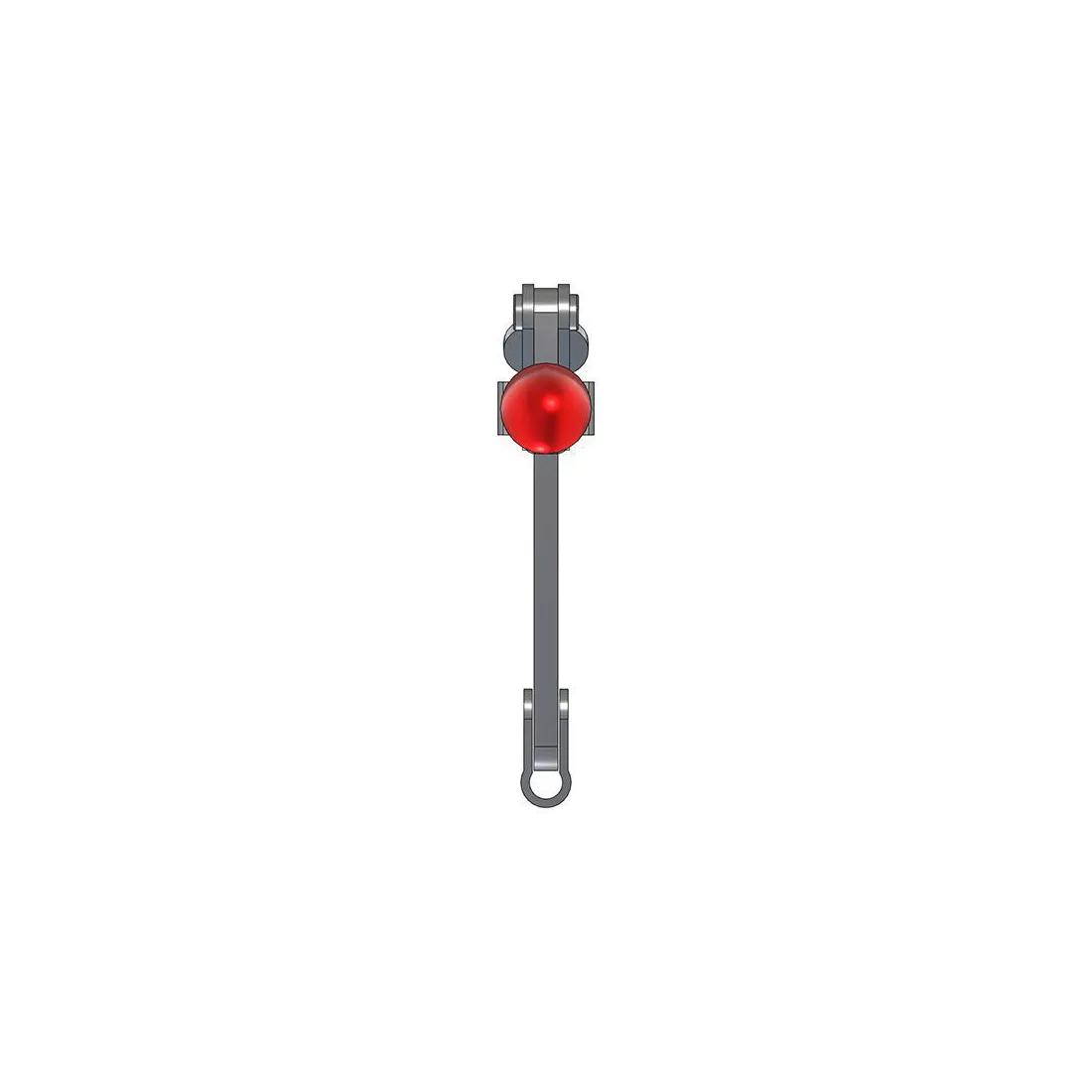

Manual Vertical Hold Down Clamp - Holding Capacity - 2224.1 N | 500 lbf; Height Under Arm - 39.4 mm | 1.550 in; Base Type - Straight; Bar Type - Solid
7.48 inH x 4.86 inL Vertical Manual Hold Down Clamp has a Solid and Straight base providing 500 lbf of holding force while saving work space. Manufacturer Part Number: 207-LB
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $26.96 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 207-LB |
| Holding Capacity | 500 lbf |
| Base Length | 1.38 in |
| Base Width | .24 in |
| Overall Height | 7.48 in |
| Overall Length | 4.86 in |
| Arm Length | 3.48 in |
| Height Under Arm | 1.550 in |
| Arm Movement | 99 |
| Handle Movement | 57 |
| Mounting Hole Diameter | 0.280 in |
| Mounting Hole Spacing Along Length | 0.750 in |
| Mounting Hole Spacing Along Width | 0.480 in |
| Base Type | Straight |
| Arm Type | Solid |
| Spindle Thread Size | M8,5/16-18 |
| Body Material | Steel |
| Includes | Bolt Retainer |
