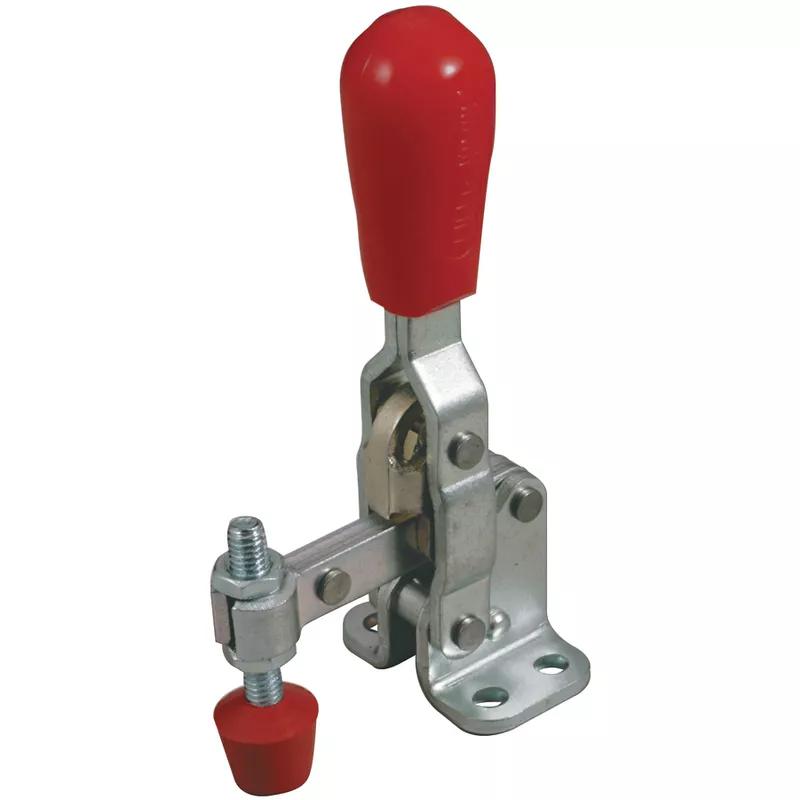

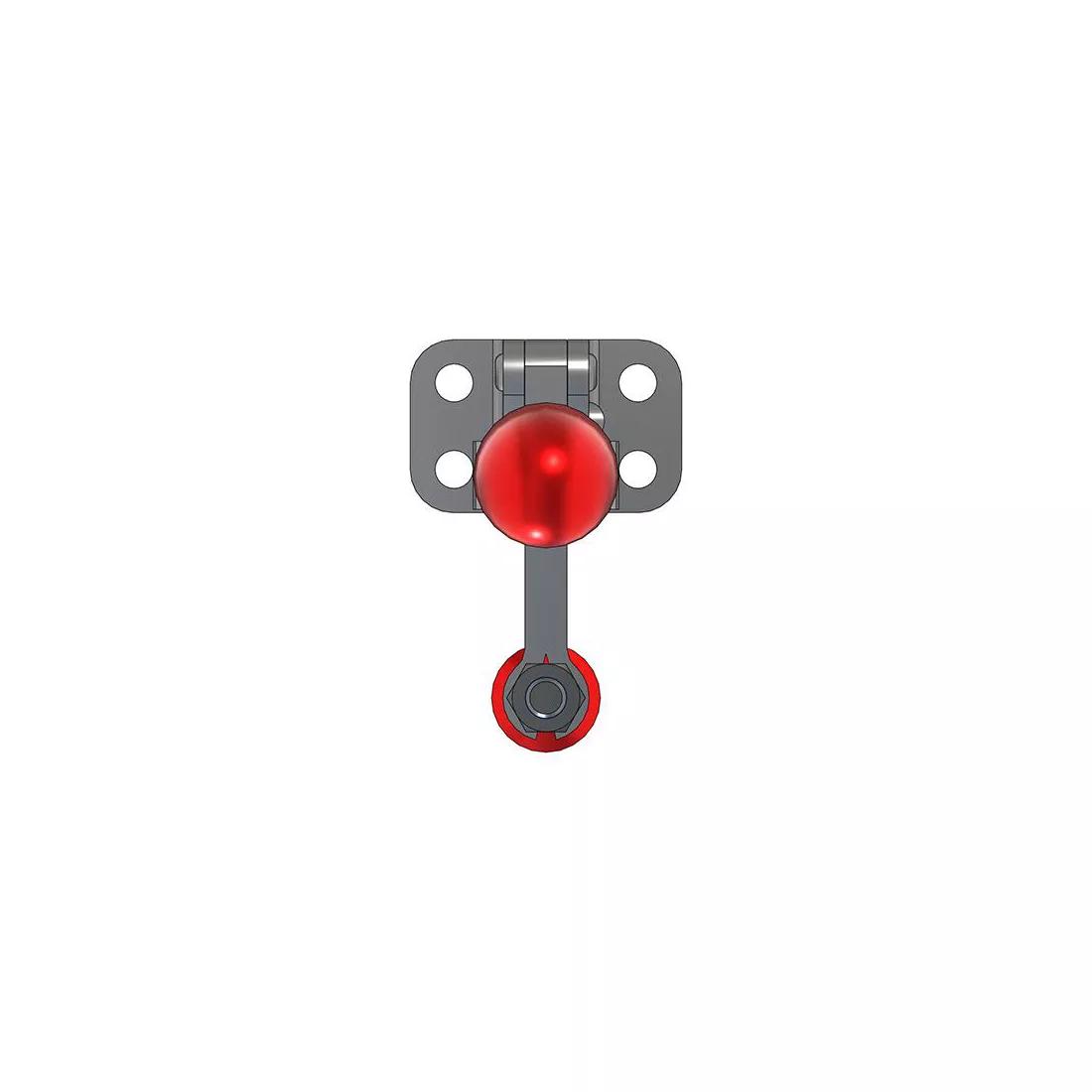

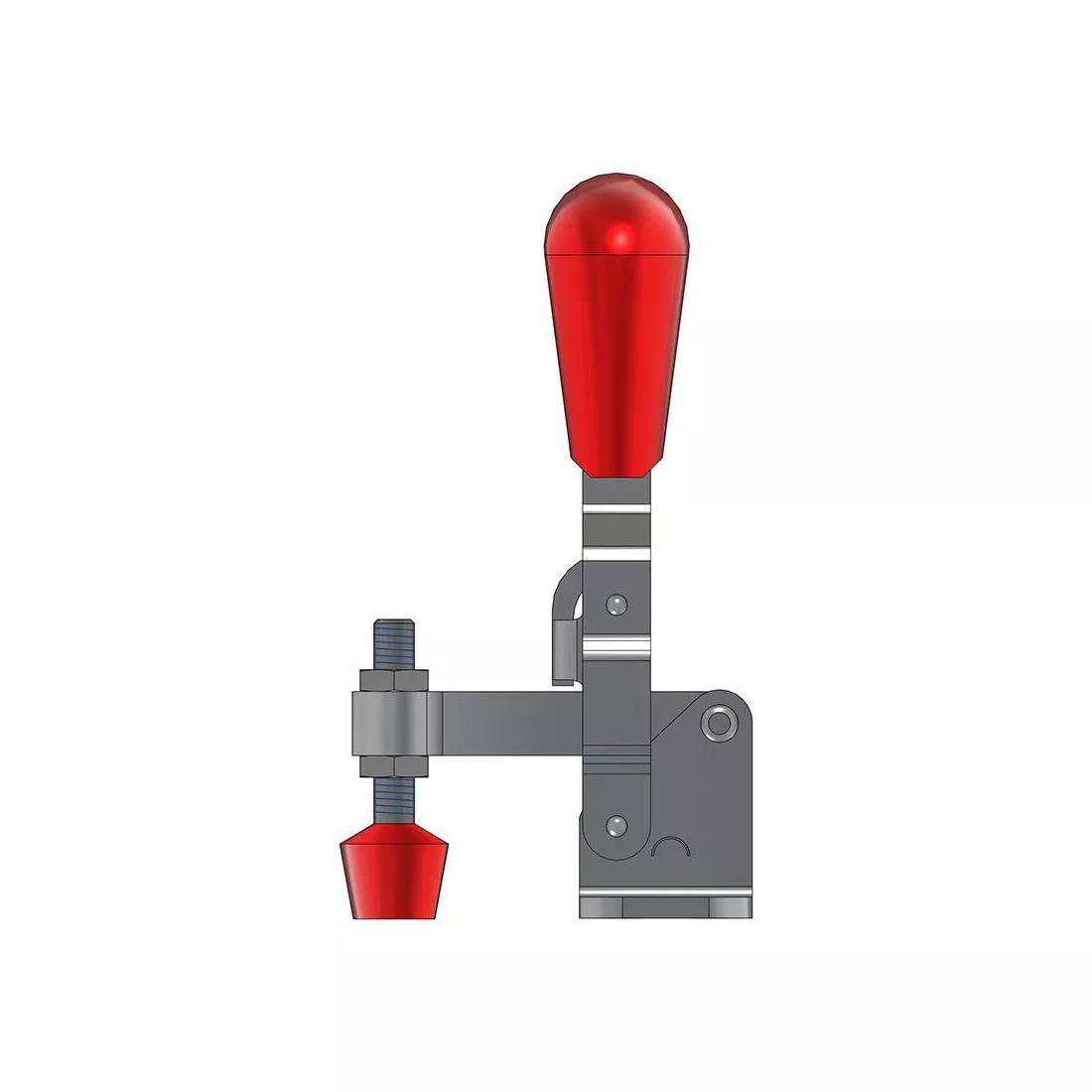

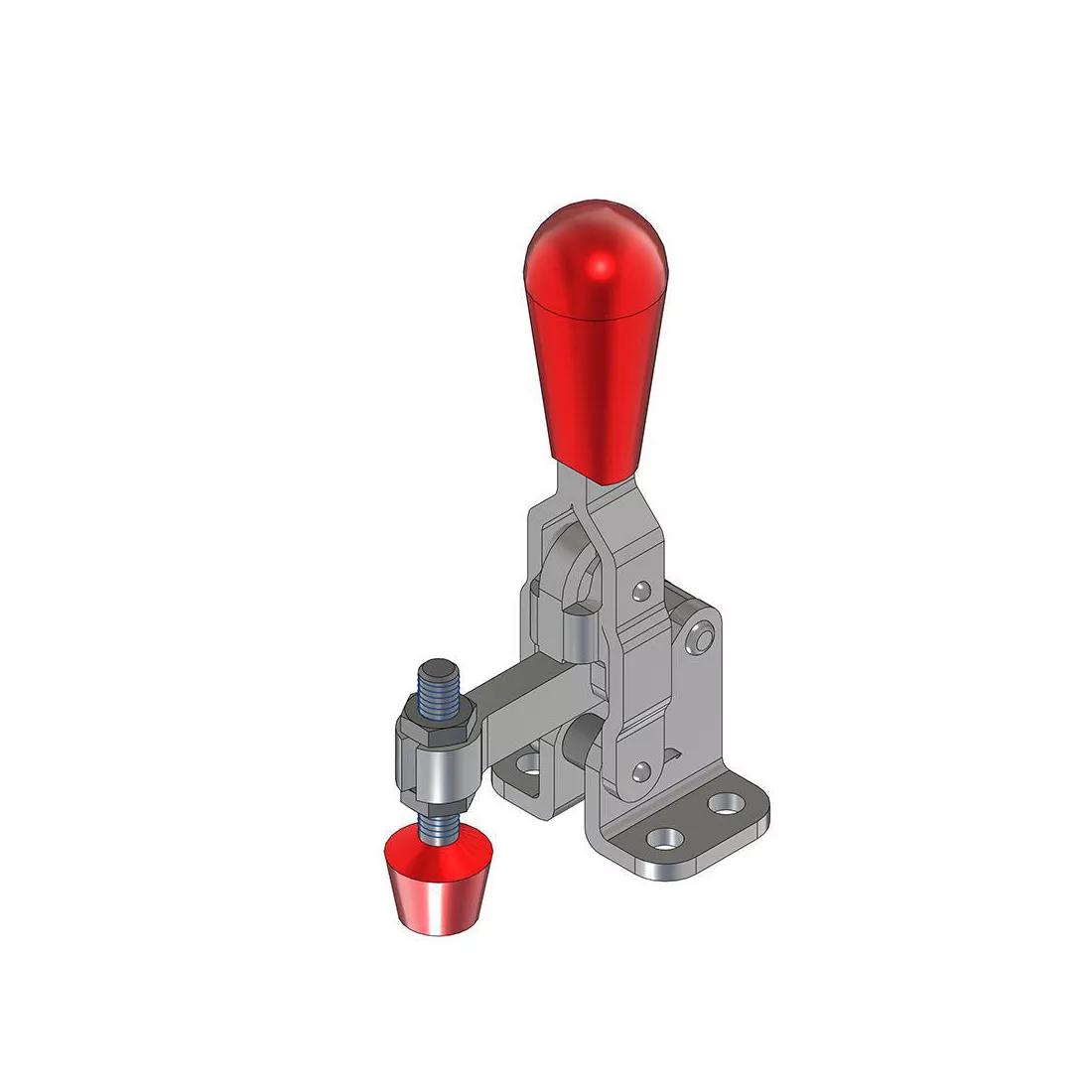

Manual Vertical Hold Down Clamp - Holding Capacity - 889.6 N | 200 lbf; Height Under Arm - 23.6 mm | 0.930 in; Base Type - Flanged; Bar Type - Solid
4.31 inH x 2.08 inL Vertical Manual Hold Down Clamp has a Solid and Flanged base providing 200 lbf of holding force while saving work space. Manufacturer Part Number: 202
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $14.36 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 202 |
| Holding Capacity | 200 lbf |
| Base Length | 1.00 in |
| Base Width | 1.57 in |
| Overall Height | 4.31 in |
| Overall Length | 2.08 in |
| Arm Length | 1.08 in |
| Height Under Arm | 0.930 in |
| Arm Movement | 105 |
| Handle Movement | 65 |
| Mounting Hole Diameter | 0.220 in |
| Mounting Hole Spacing Along Length | 0.500 in |
| Mounting Hole Spacing Along Width | 1.060 in |
| Base Type | Flanged |
| Arm Type | Solid |
| Spindle Type | Flat-Tip Bonded Neoprene |
| Spindle Thread Size | M6,1/4-20 |
| Body Material | Steel |
| Includes | M6 Spindle |
| Includes | (2) Jam Nuts |
