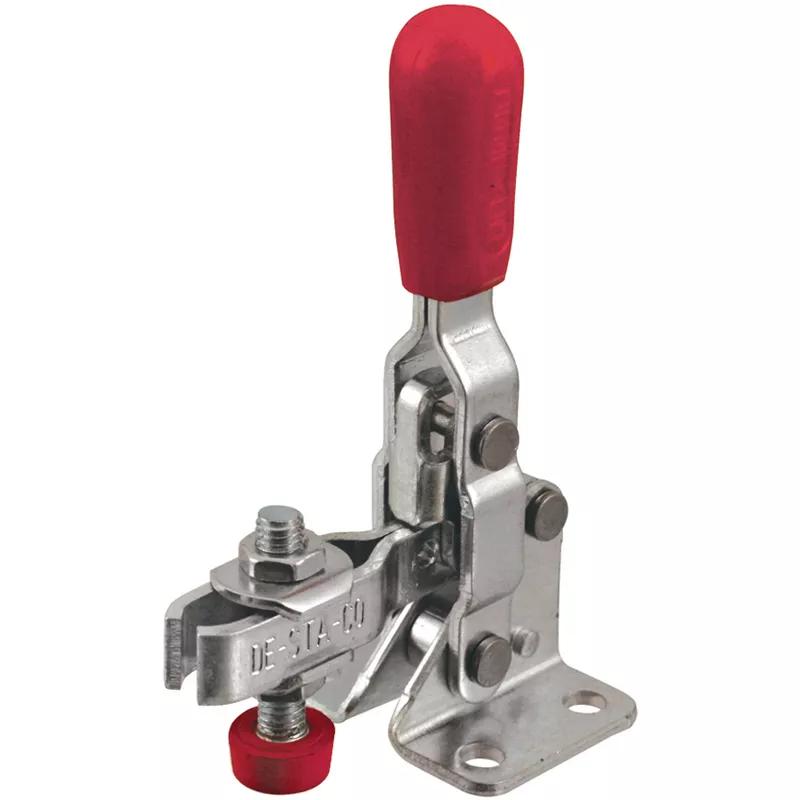

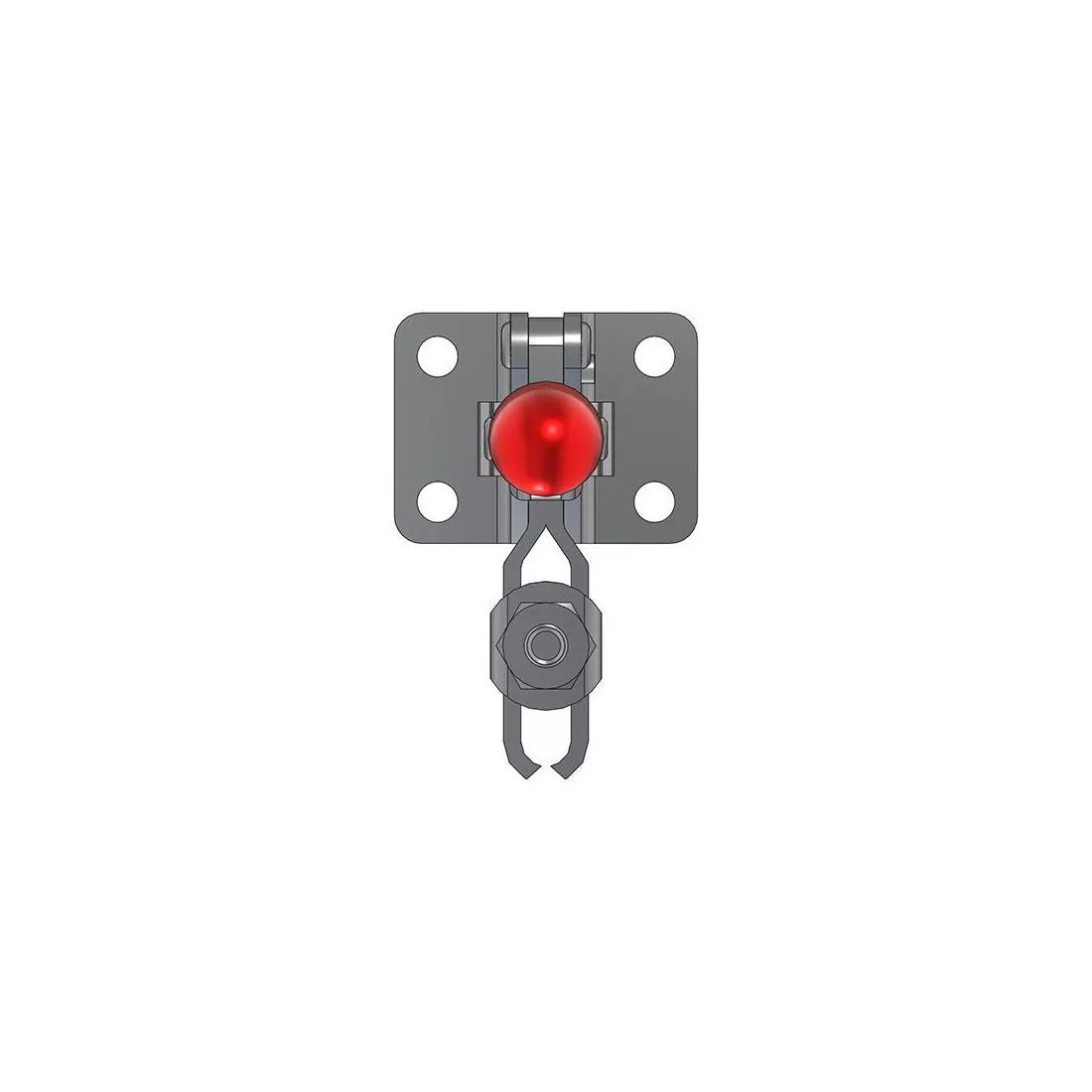

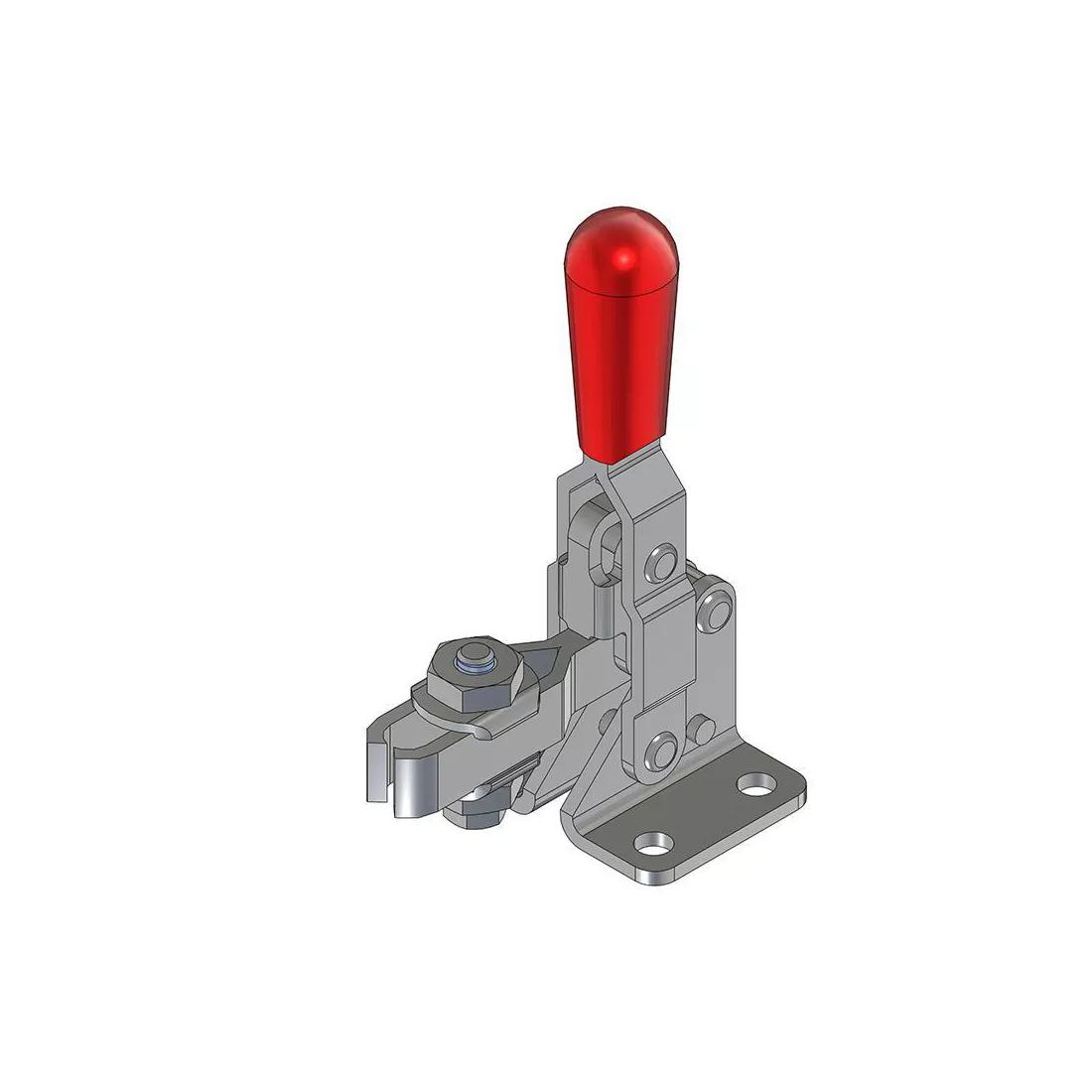

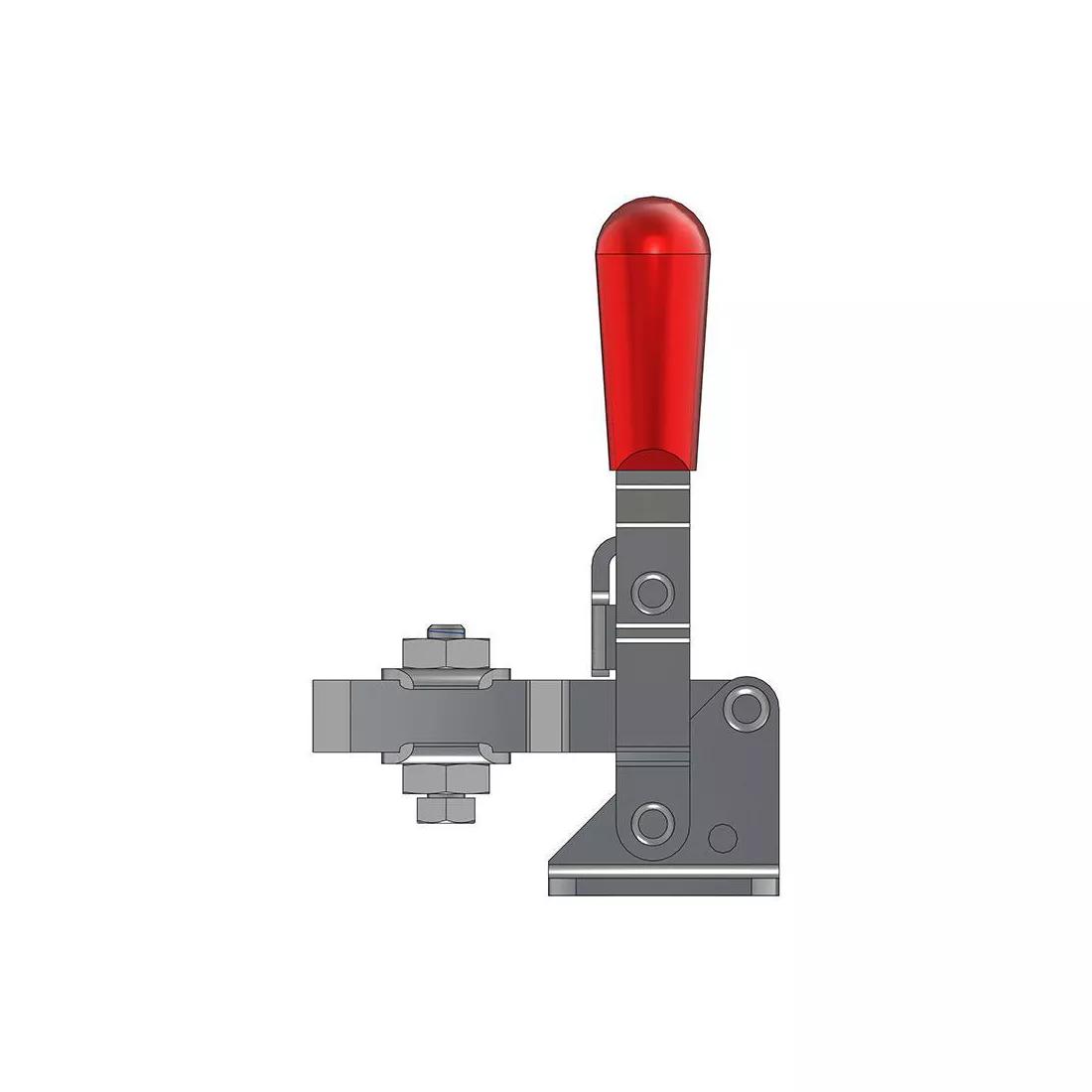

Manual Vertical Hold Down Clamp - Holding Capacity - 444.8 N | 100 lbf; Height Under Arm - 16 mm | 0.630 in; Base Type - Flanged; Bar Type - U-Bar
3.08 inH x 2.04 inL Vertical Manual Hold Down Clamp has a U-Bar and Flanged base providing 100 lbf of holding force while saving work space. Manufacturer Part Number: 201-USS
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $32.19 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 201-USS |
| Holding Capacity | 100 lbf |
| Base Length | 1.00 in |
| Base Width | 1.34 in |
| Overall Height | 3.08 in |
| Overall Length | 2.04 in |
| Arm Length | 1.04 in |
| Height Under Arm | 0.630 in |
| Arm Movement | 100 |
| Handle Movement | 55 |
| Mounting Hole Diameter | 0.170 in |
| Mounting Hole Spacing Along Length | 0.630 in |
| Mounting Hole Spacing Along Width | 0.940 in |
| Base Type | Flanged |
| Arm Type | U-Bar |
| Spindle Type | Hex Head |
| Spindle Thread Size | M5,#10 |
| Body Material | Stainless Steel |
| Includes | (2) Jam Nuts |
| Includes | (2) Flanged Washers |
| Includes | M5 Spindle |
