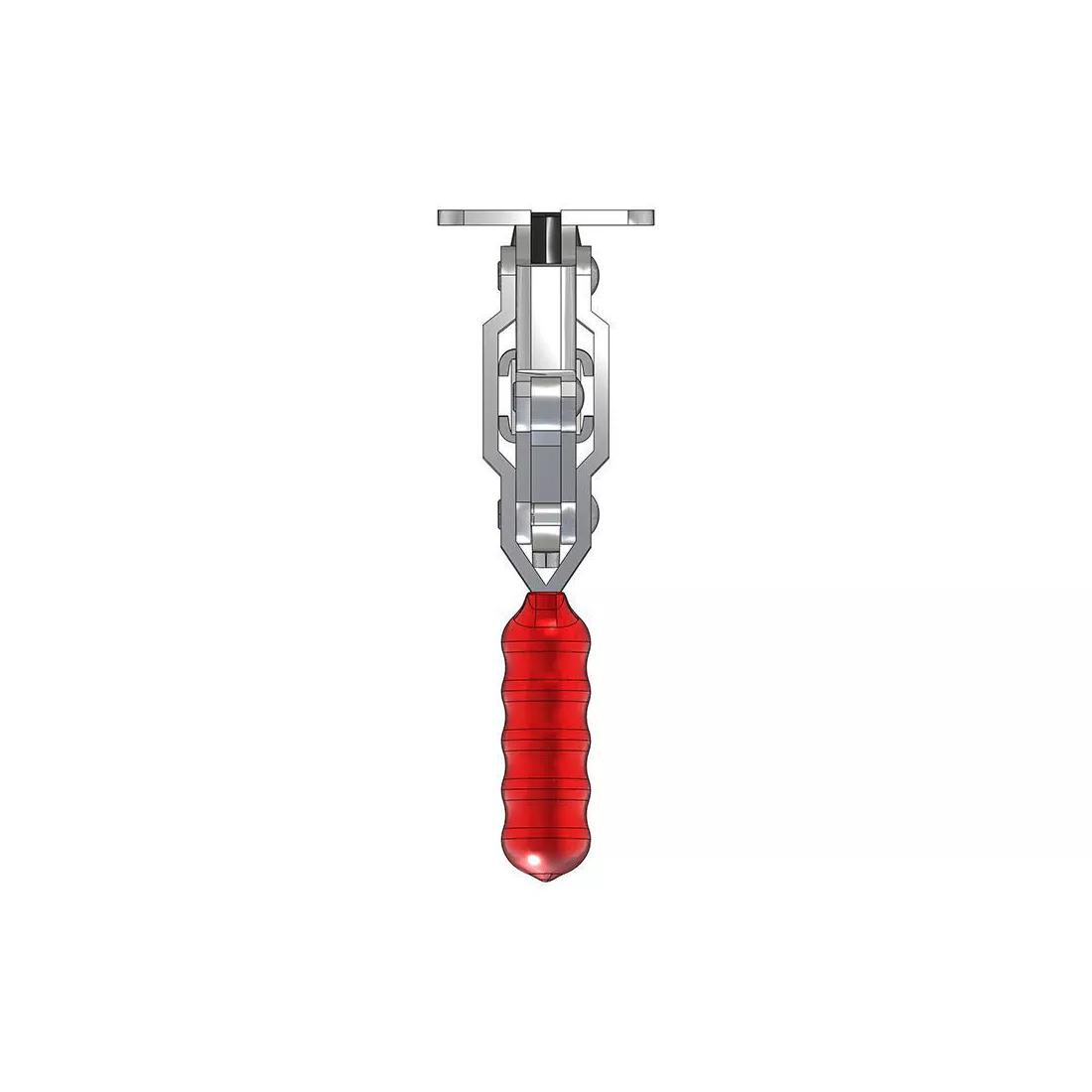

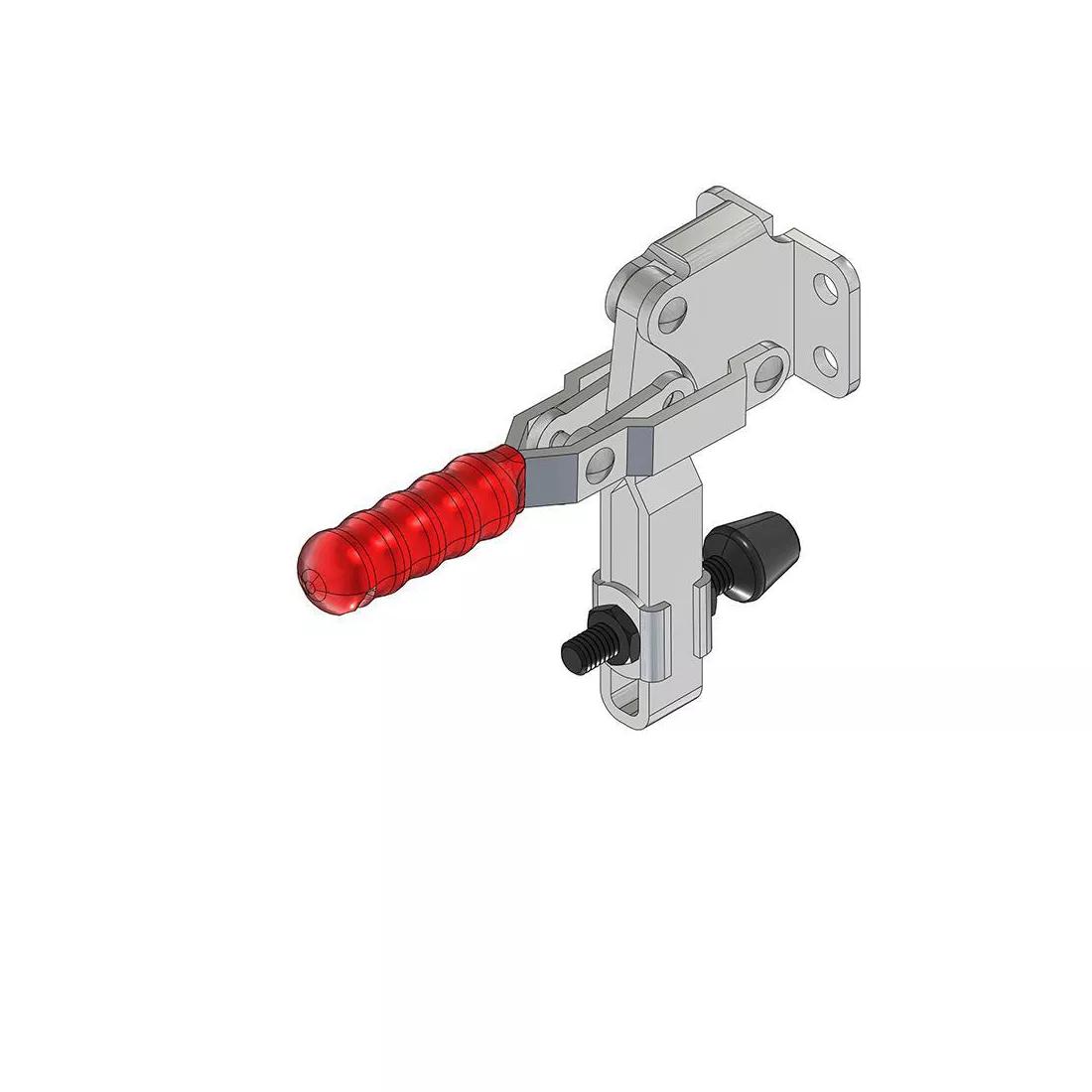

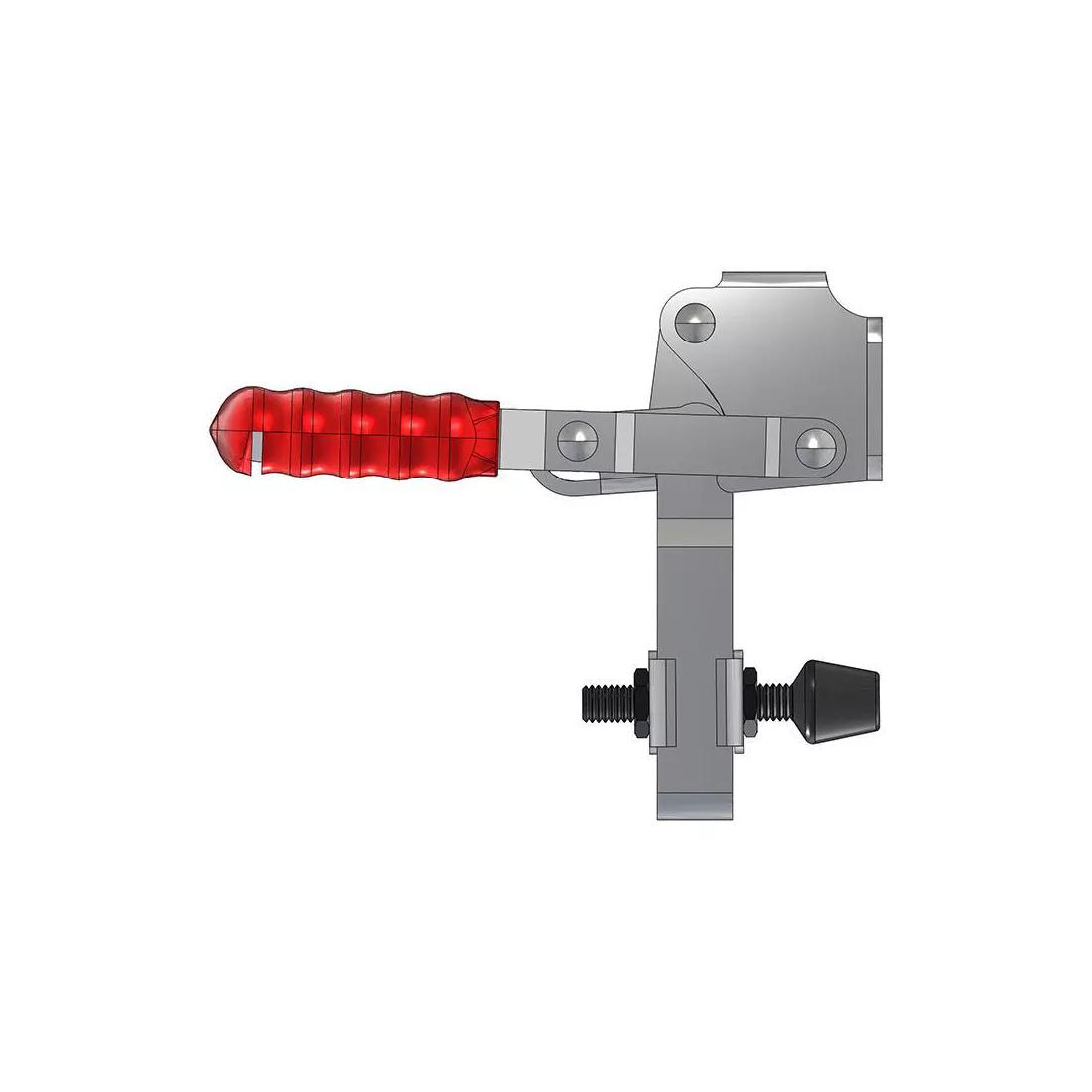

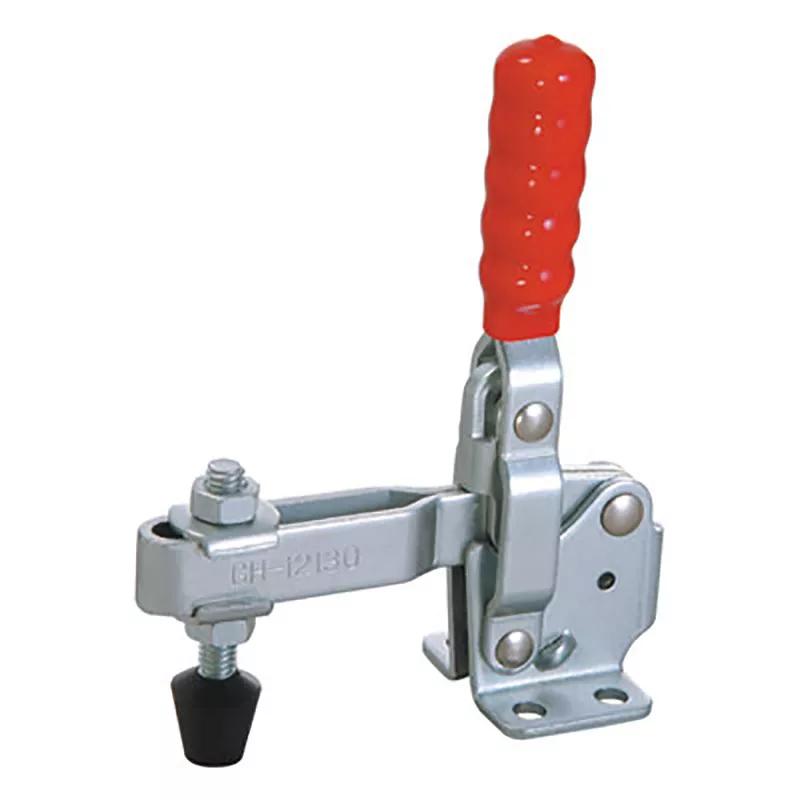

Manual Vertical Hold Down Clamp - Holding Capacity - 2224.1 N | 500 lbf; Height Under Arm - 31.8 mm | 1.250 in; Base Type - Flanged; Bar Type - U-Bar

Name: Manual Vertical Hold Down Clamps - GHC-GH12130
SKU: GHC-GH12130
Price: 11.16 USD
Availability: InStock

Item code:

GHC-GH12130

Request the lead time here For more information Delivery & returns

Spindle supplied. Manufacturer Part Number: EMC12130

SKU price information
Quantity	Unit price
1 +	$11.16

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Imperial

Metric

SKU attributes
Brand	Good Hand
Manufacturer Part Number	EMC12130
Holding Capacity	2224.1 N
Holding Capacity	500 lbf
Base Length	34.8 mm
Base Length	1.370 in
Base Width	46 mm
Base Width	1.810 in
Overall Height	139.7 mm
Overall Height	5.500 in
Overall Length	115.8 mm
Overall Length	4.560 in
Arm Length	71.4 mm
Arm Length	2.810 in
Height Under Arm	31.8 mm
Height Under Arm	1.250 in
Arm Movement	100
Handle Movement	60
Mounting Hole Diameter	7.1 mm
Mounting Hole Diameter	0.280 in
Mounting Hole Spacing Along Length	19.1 mm
Mounting Hole Spacing Along Length	0.750 in
Mounting Hole Spacing Along Width	31.8 mm
Mounting Hole Spacing Along Width	1.250 in
Base Type	Flanged
Arm Type	U-Bar
Spindle Type	Flat-Tip Bonded Neoprene
Spindle Thread Size	5/16-18 x 2-1/2
Includes	Spindle and (2) Nuts
