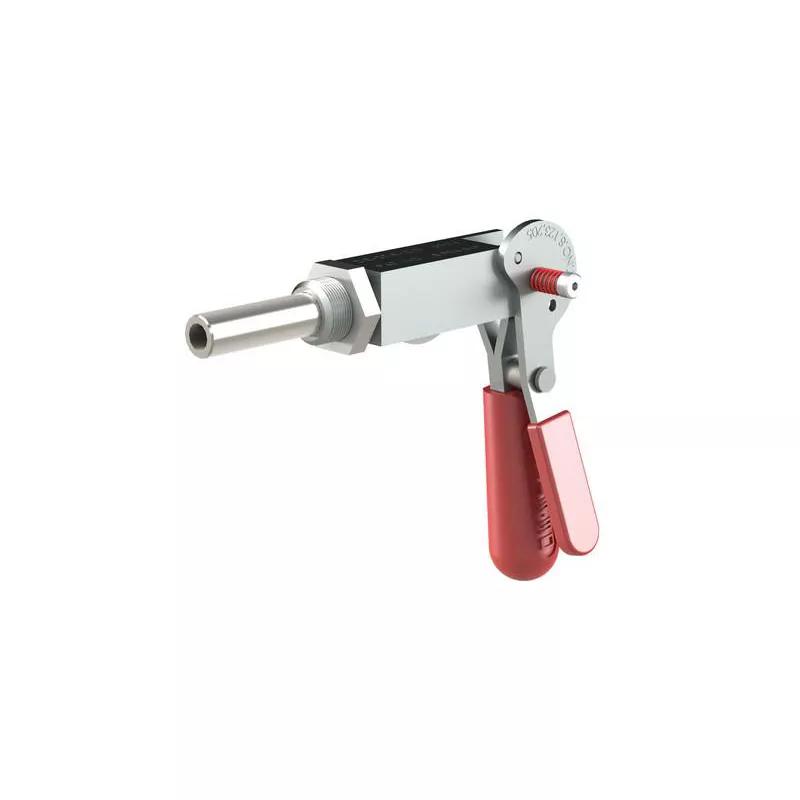

Manual Push-Pull Clamp - Mount Type - Through Hole; Holding Capacity - 2001.7 N | 450 lbf; Plunger Travel - 38.1 mm; Plunger Diameter - 12.7 mm | 0.500 in; Plunger Thread Size - 5/16-18
Mounts through a hole or in a tapped hole. Locks over center in both the extended and retracted positions. Applications include assembly, checking fixtures, welding and tensioning devices. Manufacturer Part Number: 6004-R
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $149.30 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 6004-R |
| Holding Capacity | 450 lbf |
| Plunger Travel | 38.1 mm |
| Plunger Diameter | 0.500 in |
| Plunger Thread Type | Internal Thread |
| Overall Length | 5.520 in |
| Overall Height | 4.210 in |
| Mount Type | Through Hole |
| Handle Movement Action | Reverse Action |
| Body Material | Steel |
