Manual Hold Down Clamp - Height Under Arm - 12.7 mm | 0.500 in; Holding Capacity - 667.2 N | 150 lbf; Steel

Name: Manual Horizontal Hold Down Clamps - TC-305-U
SKU: TC-305-U
Price: 14.7400 USD
Availability: InStock

Item code:

TC-305-U

181 In stock For more information Delivery & returns

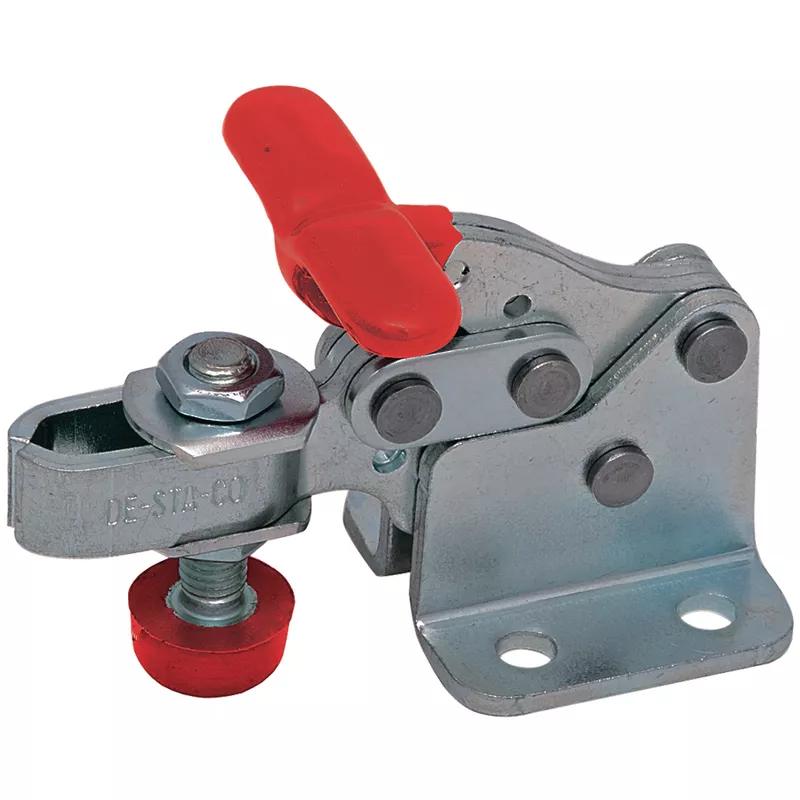

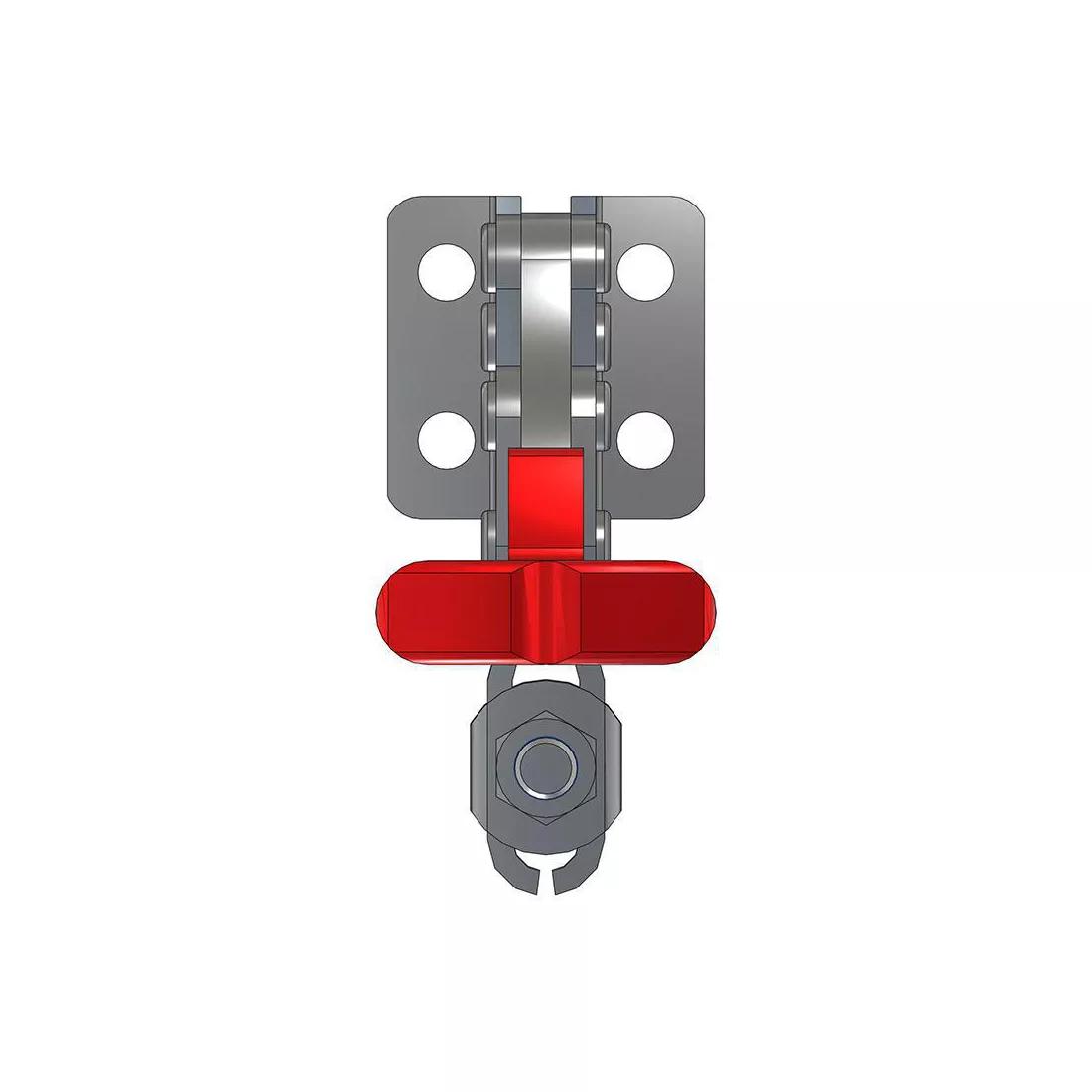

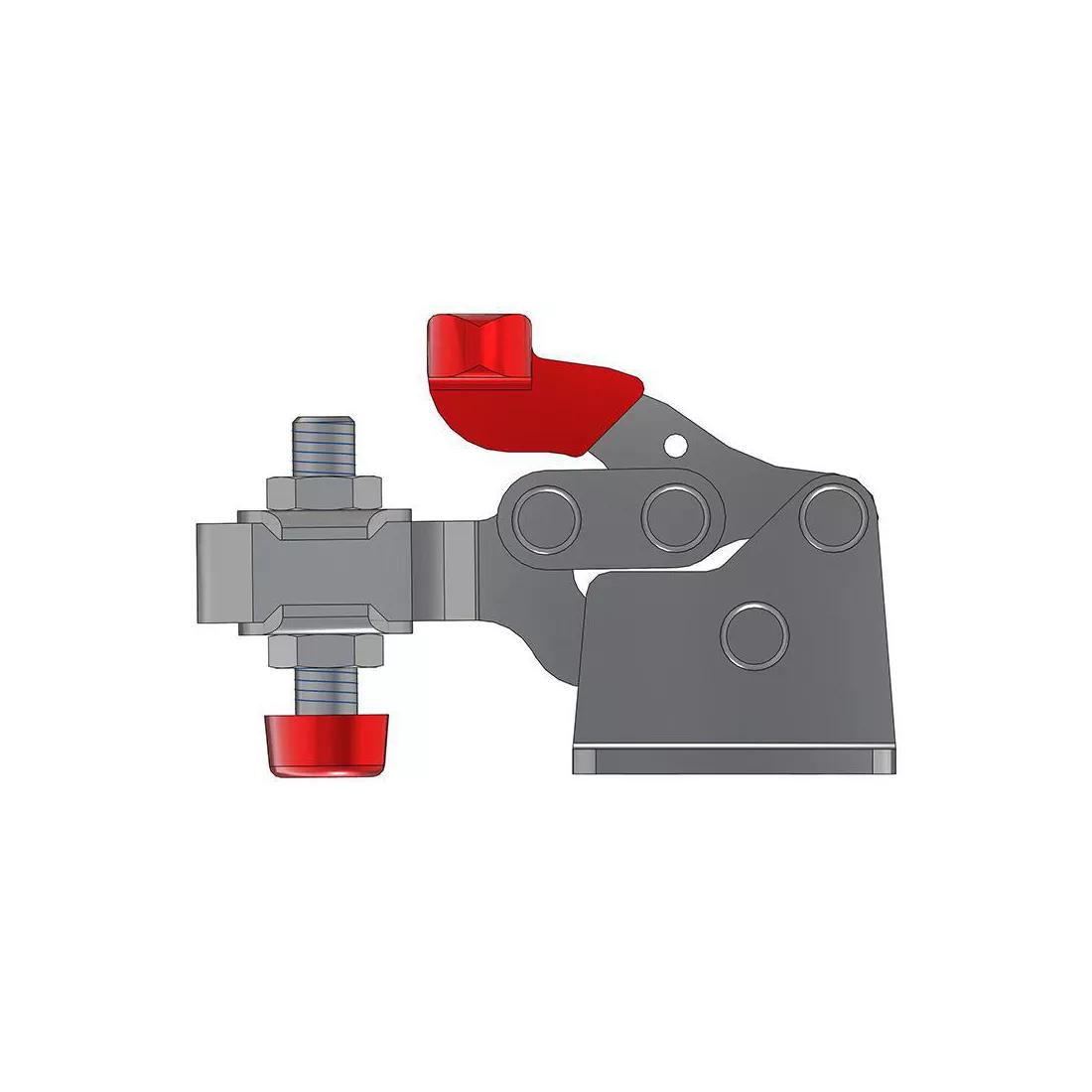

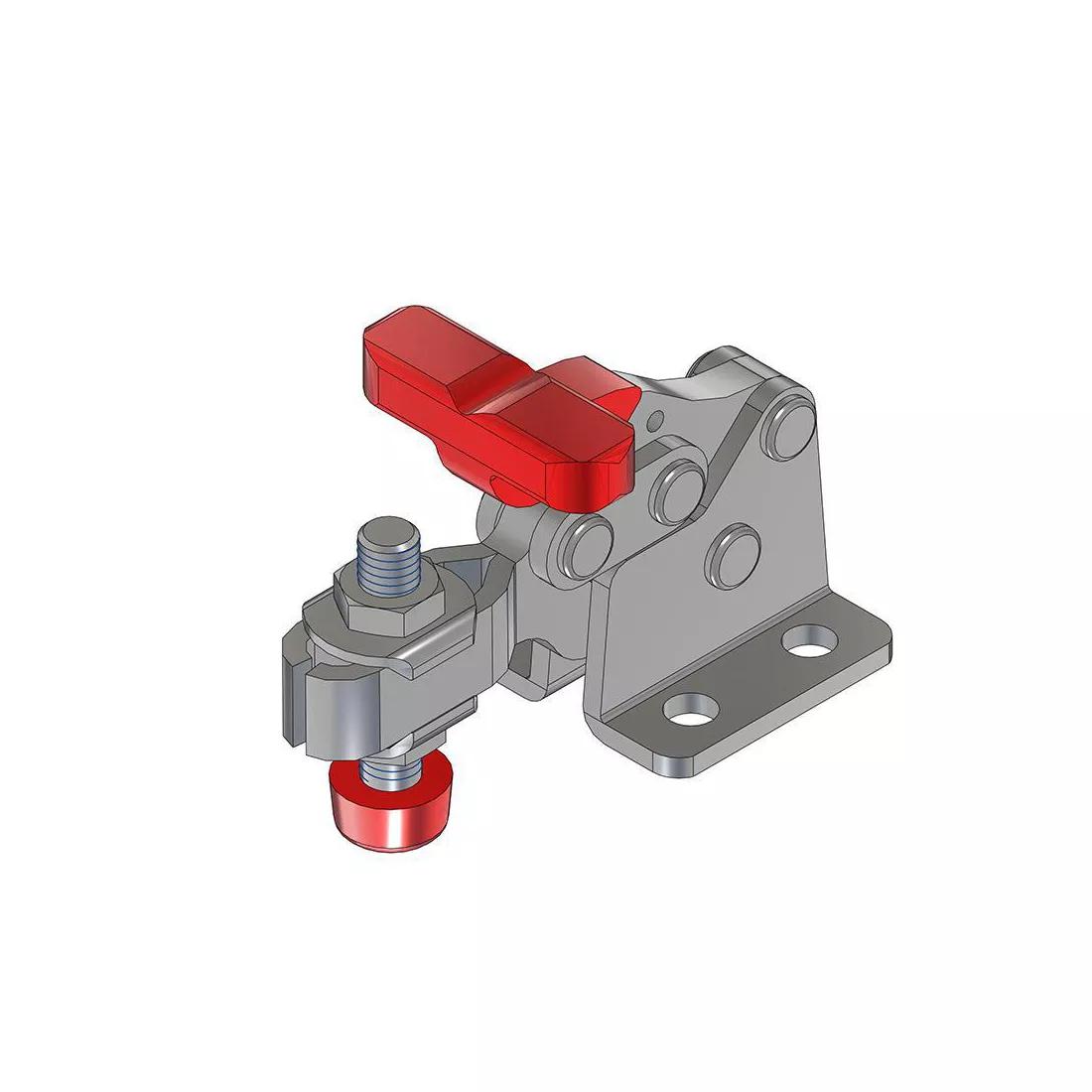

1.380 inH x 2.220 inL Horizontal Manual Hold Down Clamp has a U-Bar and Flanged base providing of holding force while saving work space.

SKU price information
Quantity	Unit price
1 +	$14.74

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Imperial

Metric

SKU attributes
Brand	DESTACO
Holding Capacity	667.2 N
Holding Capacity	150 lbf
Base Length	13.5 mm
Base Length	.53 in
Base Width	16 mm
Base Width	.63 in
Overall Height	35.1 mm
Overall Height	1.38 in
Overall Length	56.4 mm
Overall Length	2.22 in
Arm Length	30.2 mm
Arm Length	1.19 in
Height Under Arm	12.7 mm
Height Under Arm	0.500 in
Arm Movement	90
Handle Movement	170
Mounting Hole Diameter	4.6 mm
Mounting Hole Diameter	0.180 in
Mounting Hole Spacing Along Length	15.7 mm
Mounting Hole Spacing Along Length	0.620 in
Mounting Hole Spacing Along Width	13.5 mm
Mounting Hole Spacing Along Width	0.530 in
Base Type	Flanged
Arm Type	U-Bar
Spindle Type	Neoprene Tipped
Spindle Thread Size	10-32,M5
