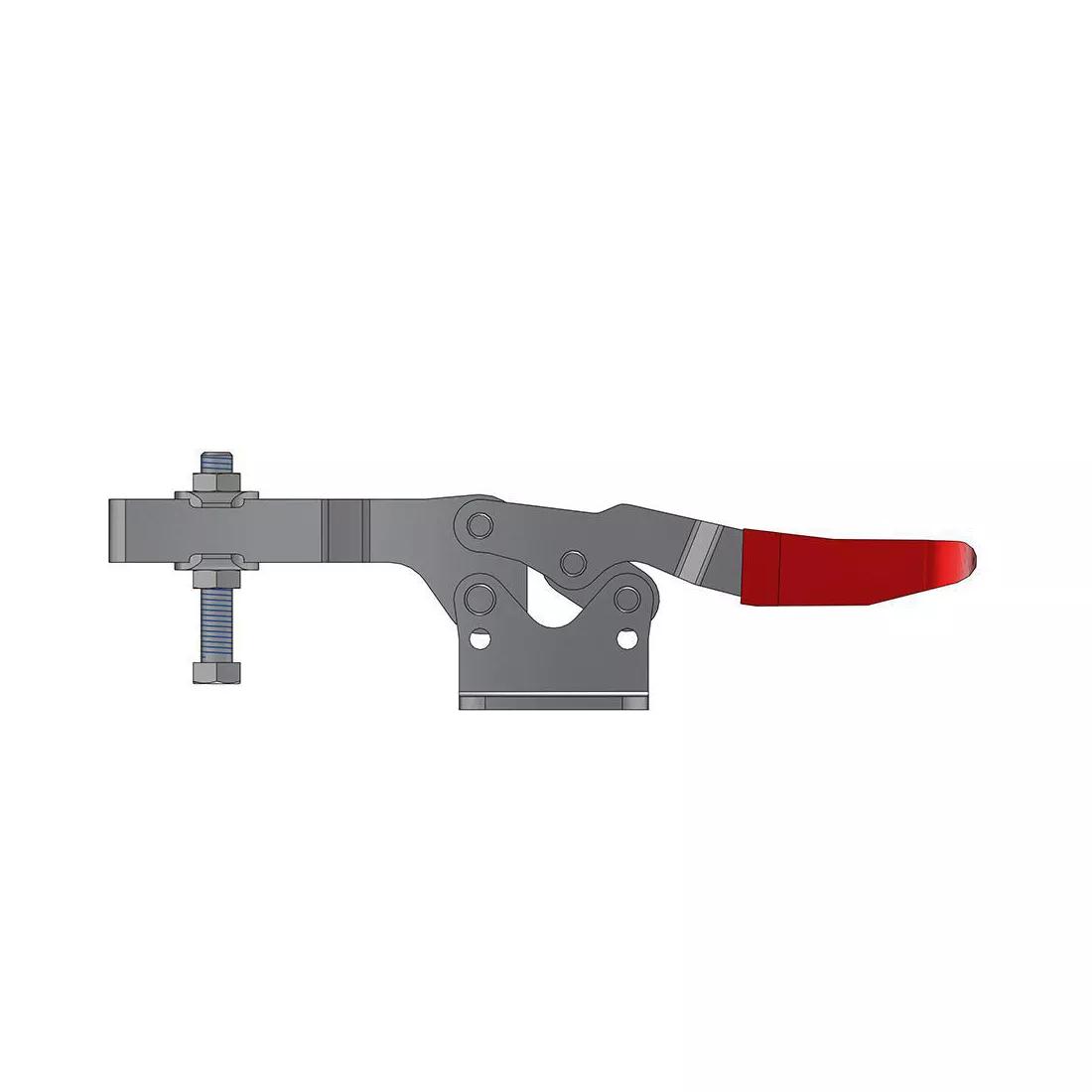

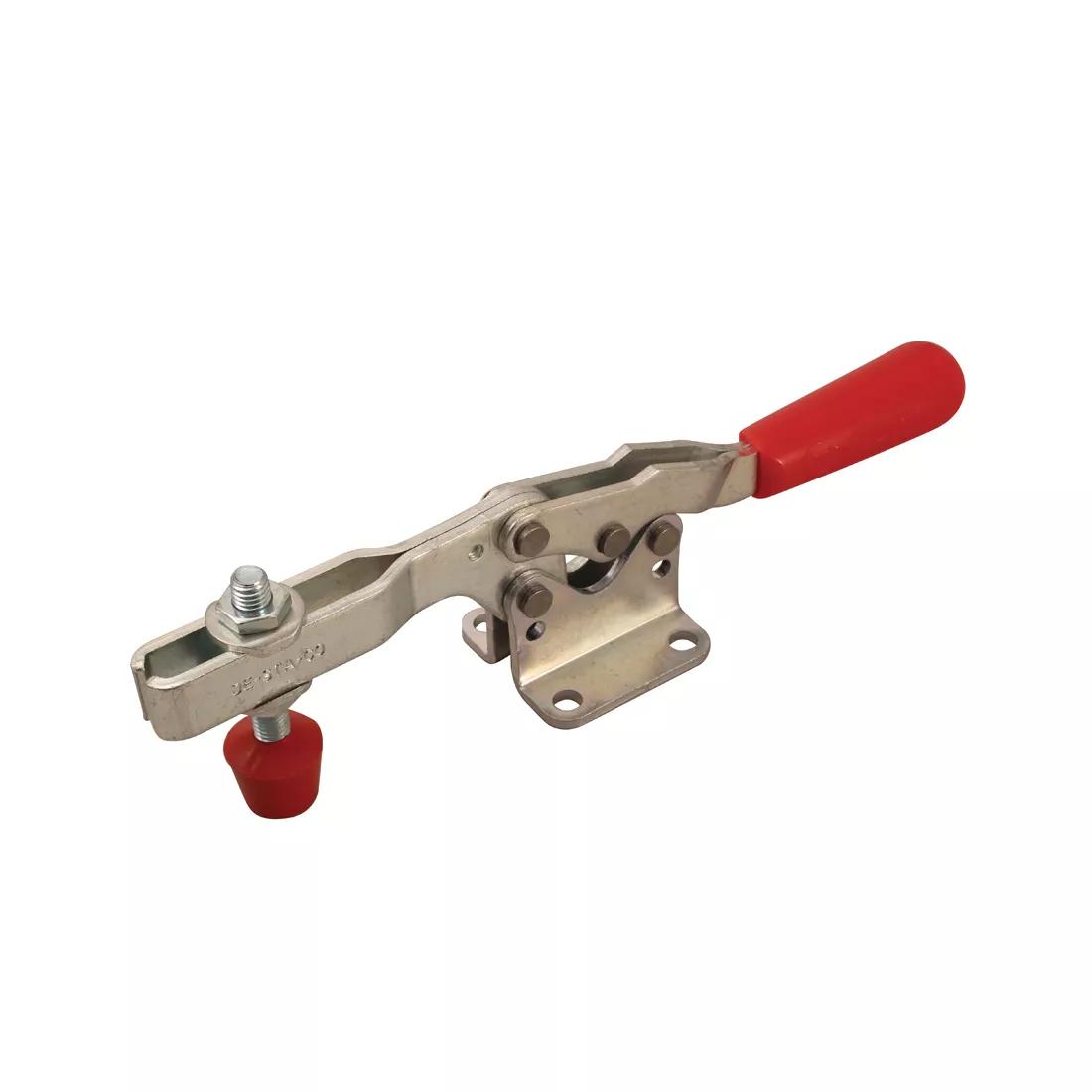

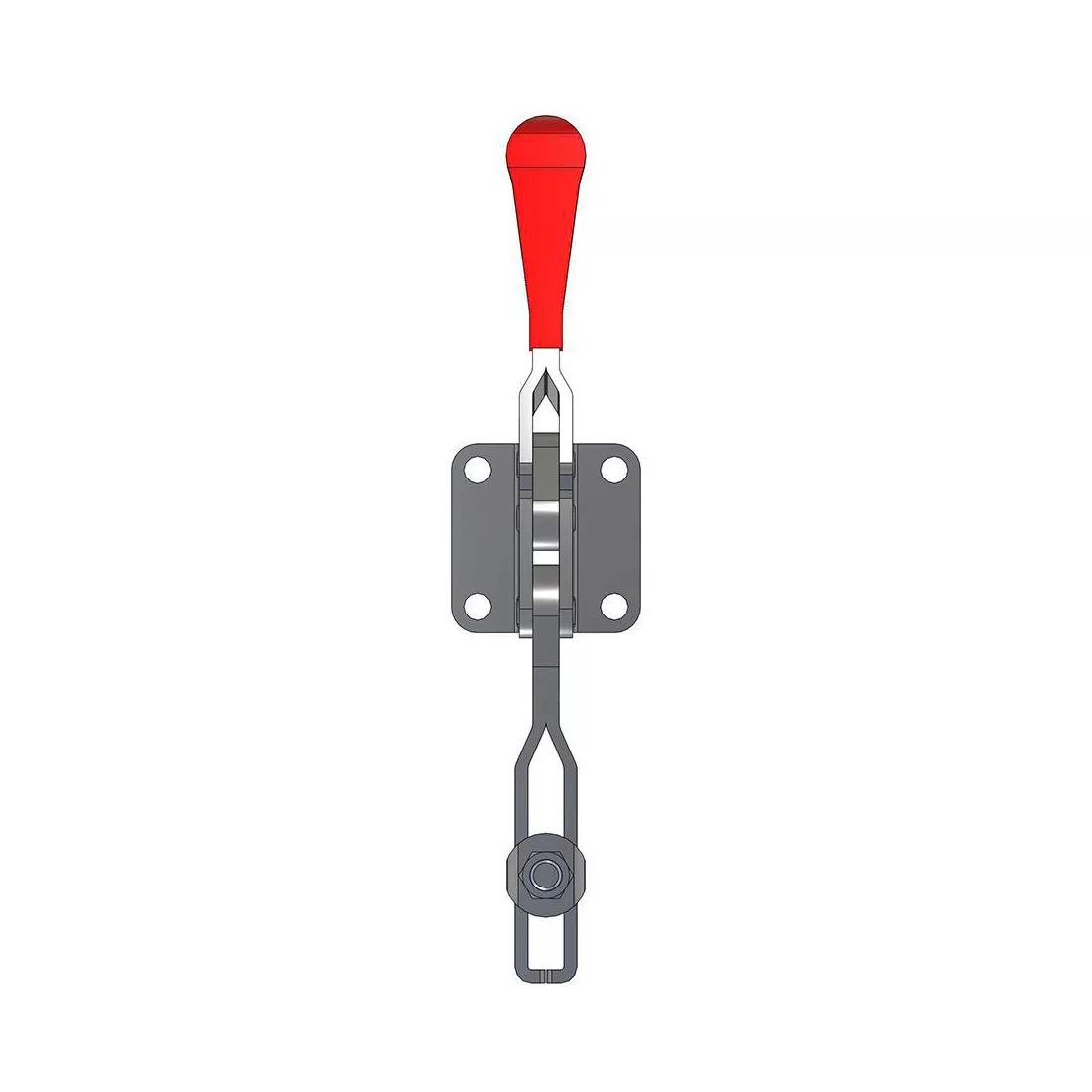

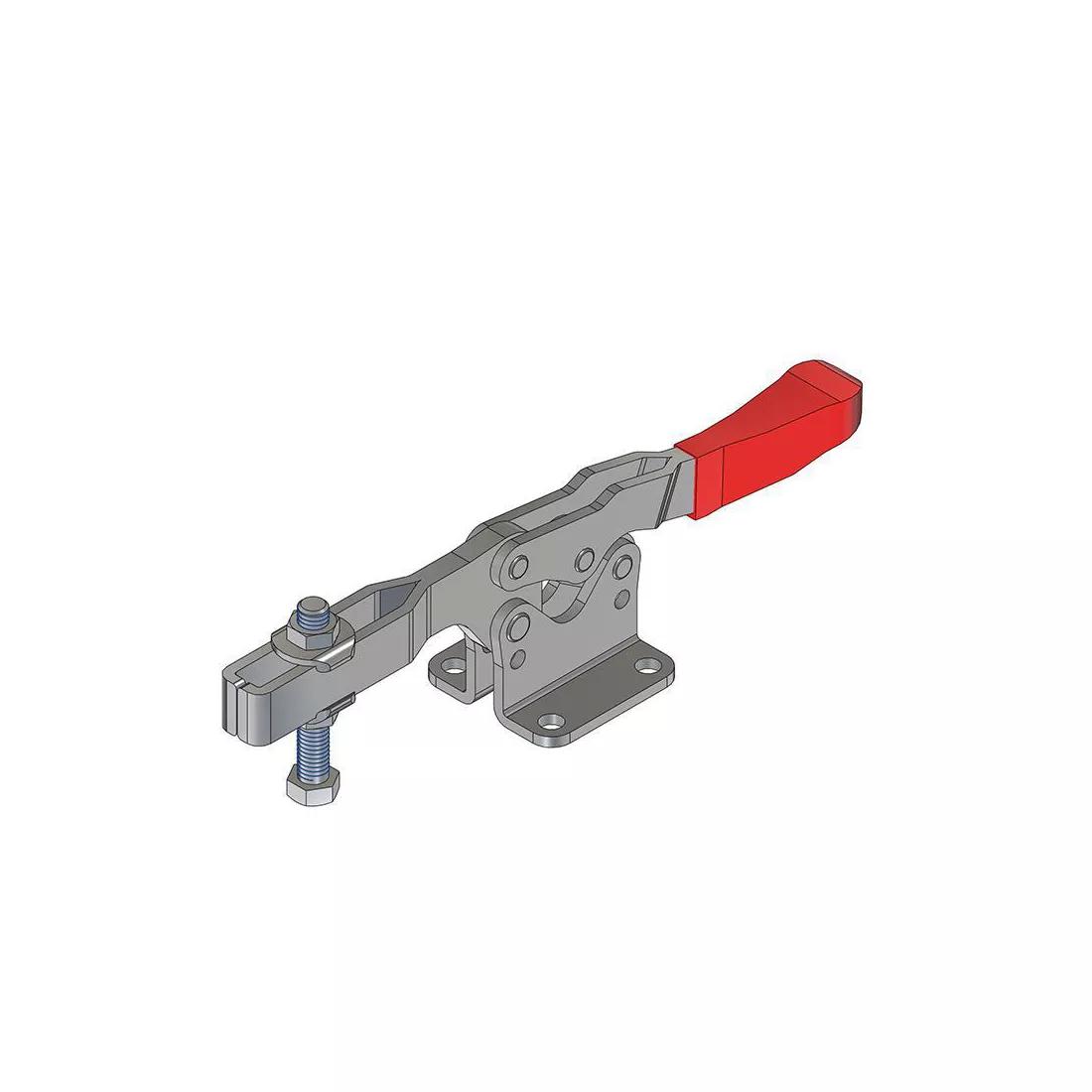

Manual Horizontal Hold Down Clamp - Holding Capacity 3781 N | 850 lbf; Height Under Arm 44.5 mm | 1.750 in; Base Type Flanged; Bar Type U-Bar
2.550 inH x 10.870 inL Horizontal Manual Hold Down Clamp has a U-Bar and Flanged base providing of holding force while saving work space. Manufacturer Part Number: 235-USS
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $89.91 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 235-USS |
| Holding Capacity | 850 lbf |
| Base Length | 2.25 in |
| Base Width | 2.26 in |
| Overall Height | 2.55 in |
| Overall Length | 10.87 in |
| Arm Length | 4.16 in |
| Height Under Arm | 1.750 in |
| Arm Movement | 92 |
| Handle Movement | 70 |
| Mounting Hole Diameter | 0.330 in |
| Mounting Hole Spacing Along Length | 1.630 in |
| Mounting Hole Spacing Along Width | 1.630 in |
| Base Type | Flanged |
| Arm Type | U-Bar |
| Spindle Type | SS Hex Head |
| Spindle Thread Size | 3/8-16,M10 |
