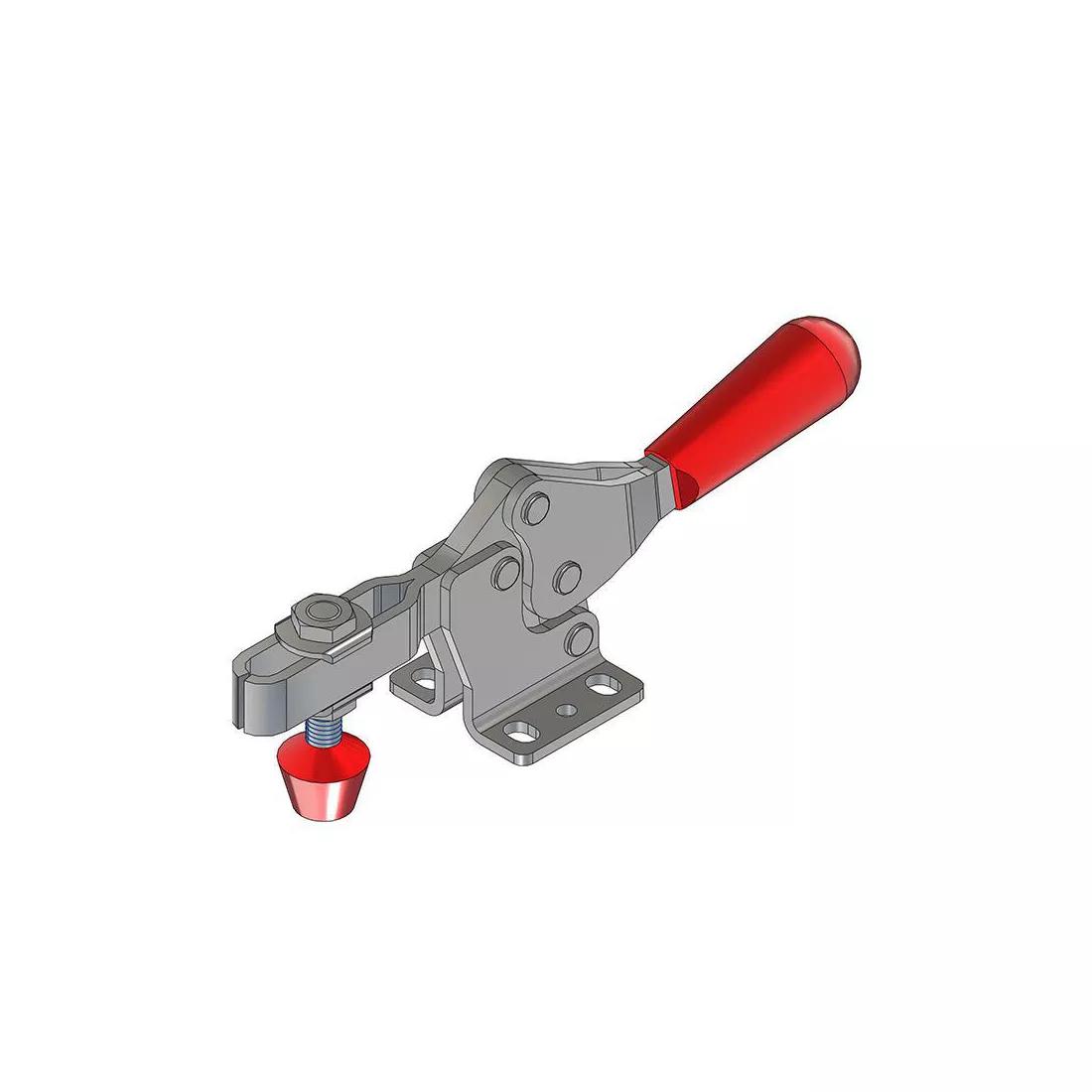

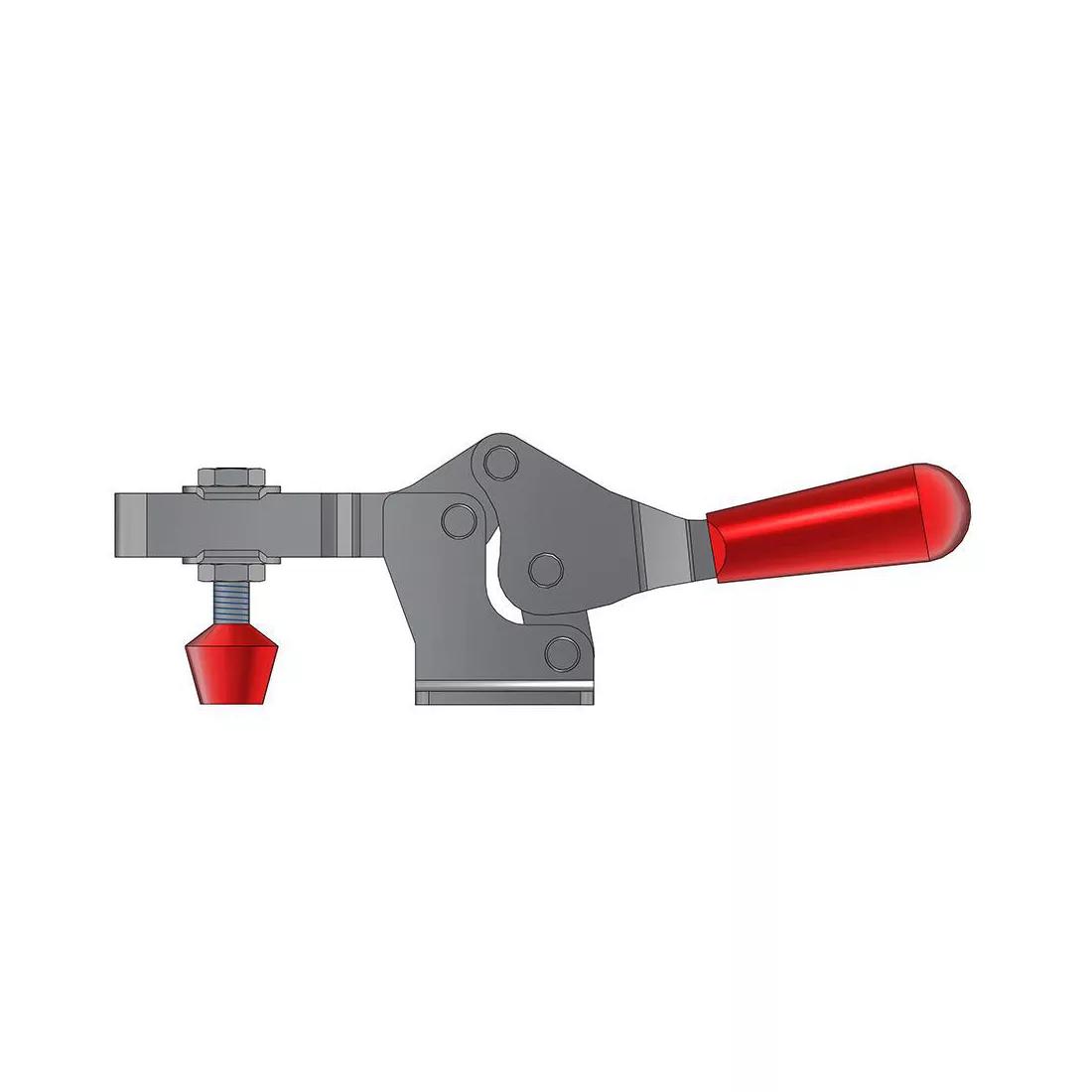

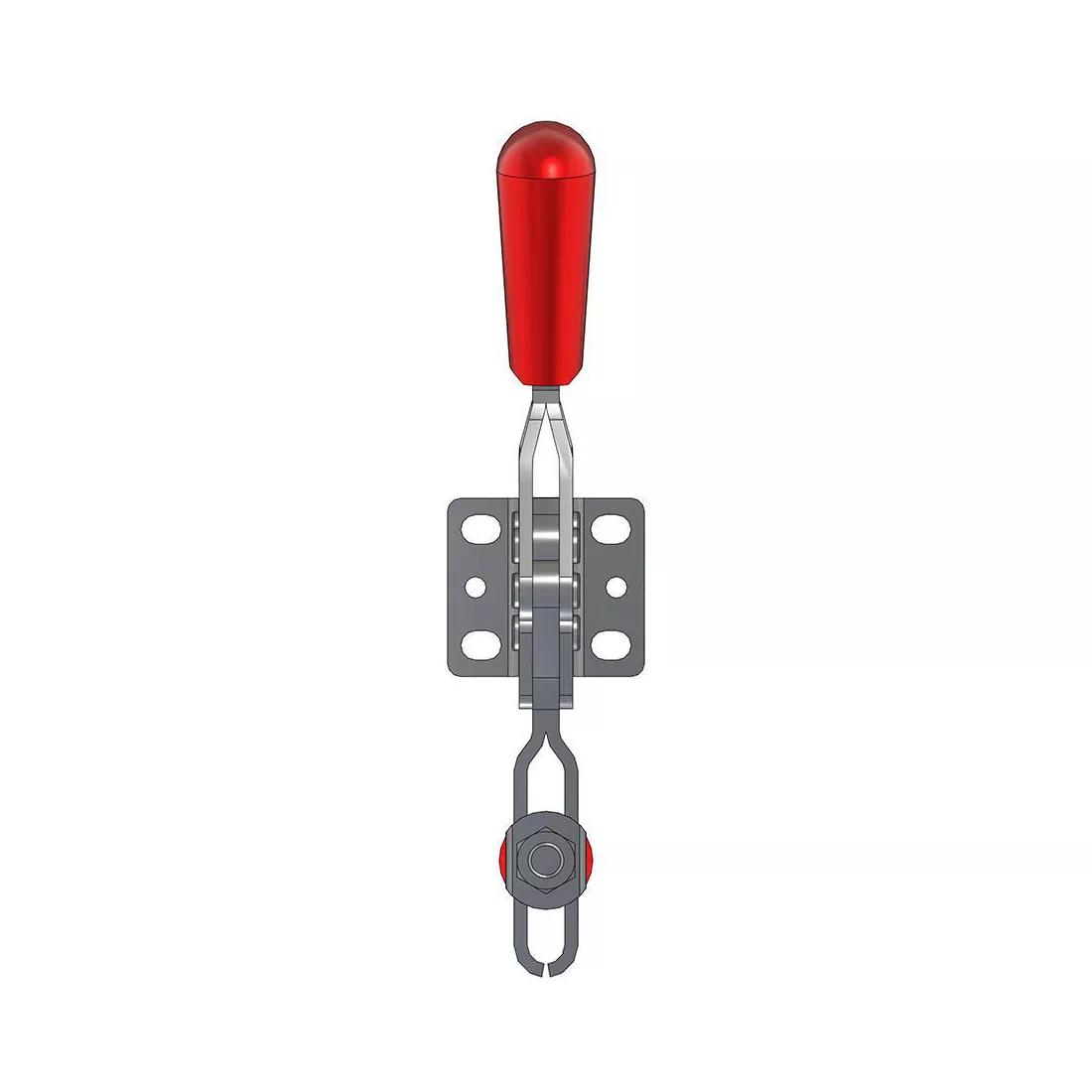

Manual Horizontal Hold Down Clamp - Holding Capacity 2224.1 N | 500 lbf; Height Under Arm 33 mm | 1.300 in; Base Type Flanged; Bar Type U-Bar
2.430 inH x 7.560 inL Horizontal Manual Hold Down Clamp has a U-Bar and Flanged base providing of holding force while saving work space. Manufacturer Part Number: 227-U
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $19.94 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 227-U |
| Holding Capacity | 500 lbf |
| Base Length | 7.48 in |
| Base Width | 1.74 in |
| Overall Height | 2.43 in |
| Overall Length | 7.56 in |
| Arm Length | 2.65 in |
| Height Under Arm | 1.300 in |
| Arm Movement | 91 |
| Handle Movement | 56 |
| Mounting Hole Spacing Along Length | 1.240 in |
| Mounting Hole Spacing Along Width | 1.020 in |
| Base Type | Flanged |
| Arm Type | U-Bar |
| Spindle Type | Neoprene Tipped |
| Spindle Thread Size | 5/16-18,M8 |
