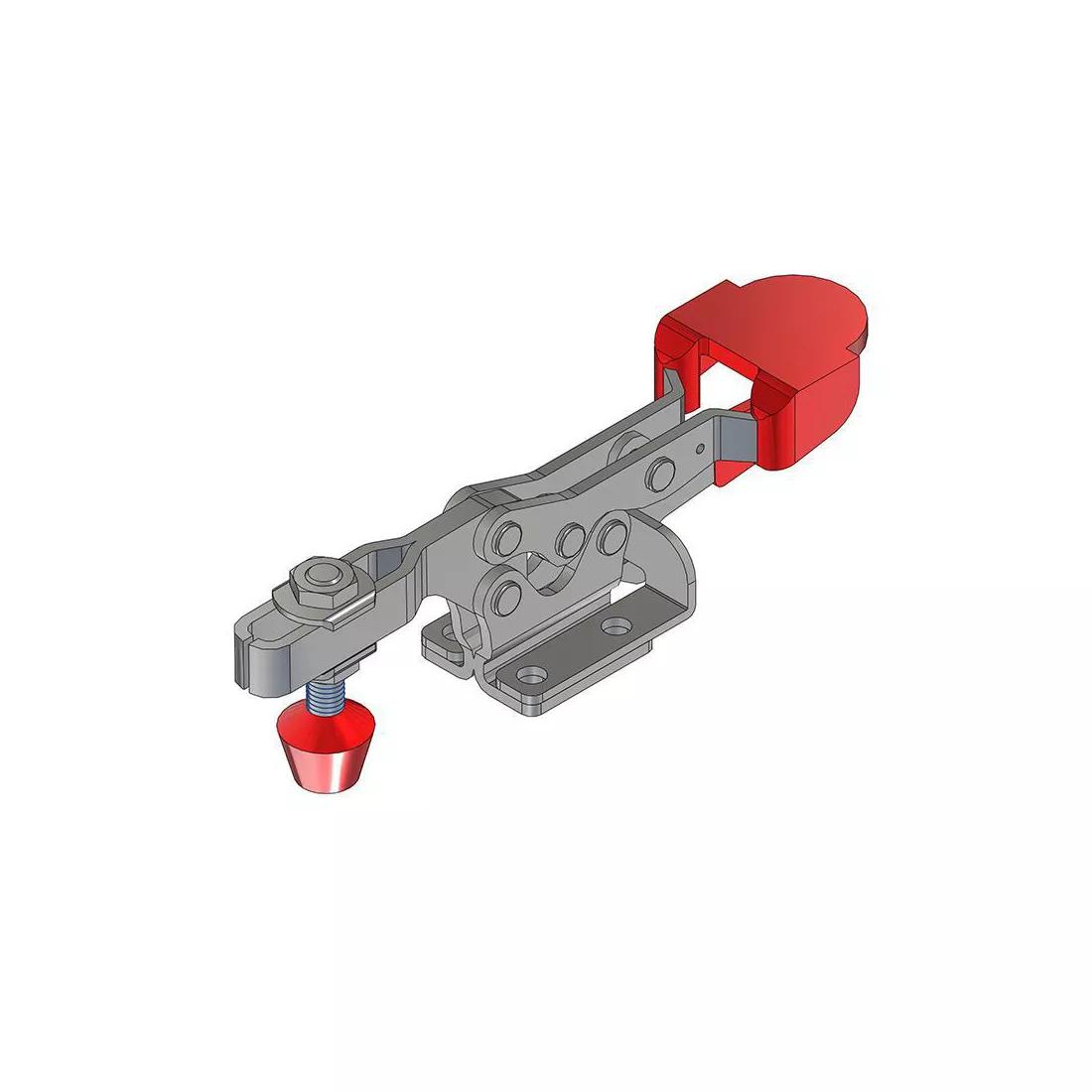

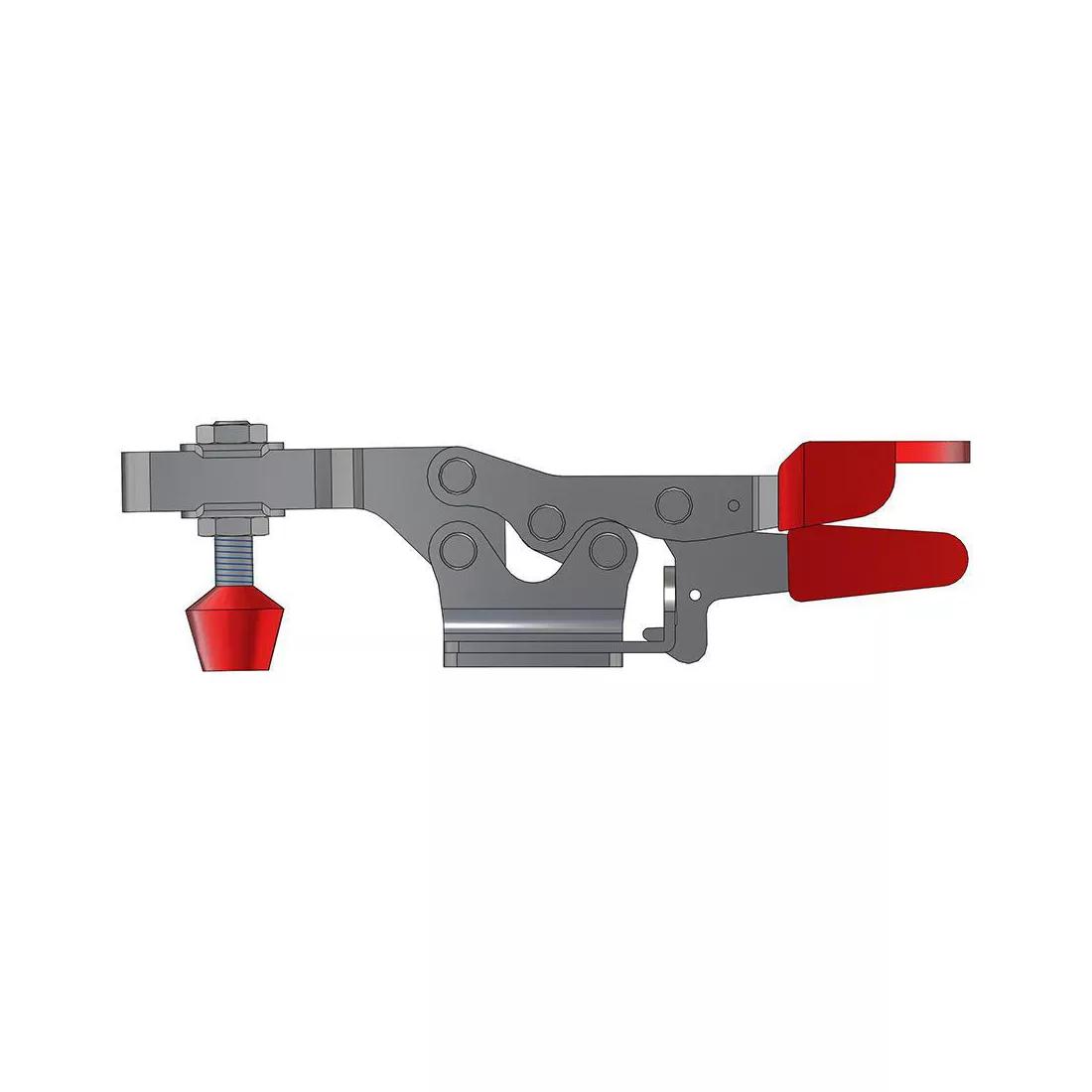

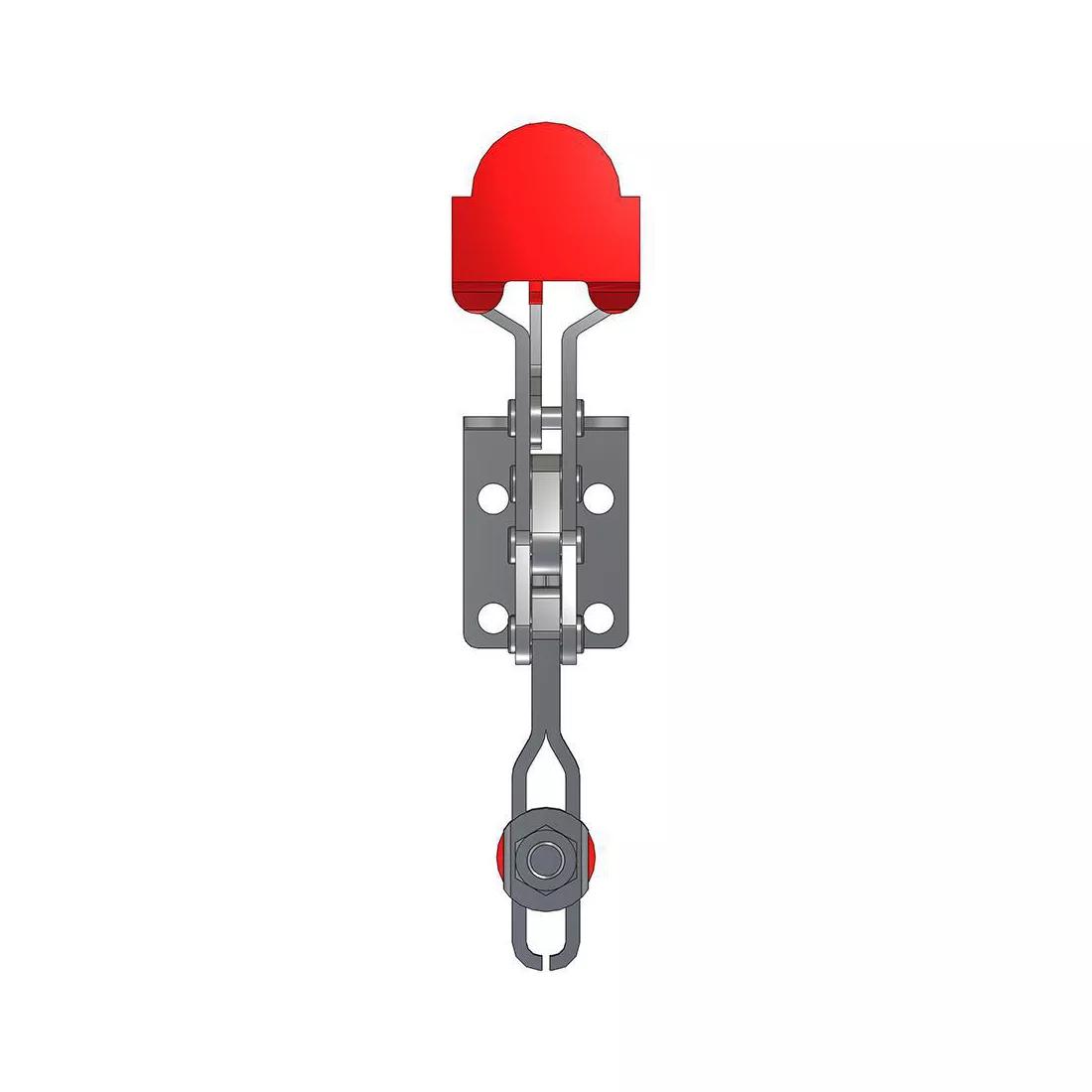

Manual Horizontal Hold Down Clamp - Holding Capacity 2224.1 N | 500 lbf; Height Under Arm 33.5 mm | 1.320 in; Base Type Flanged; Bar Type U-Bar
1.920 inH x 7.140 inL Horizontal Manual Hold Down Clamp has a U-Bar and Flanged base providing of holding force while saving work space. Manufacturer Part Number: 225-UR
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $40.75 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 225-UR |
| Holding Capacity | 500 lbf |
| Base Length | 1.50 in |
| Base Width | 1.37 in |
| Overall Height | 1.92 in |
| Overall Length | 7.14 in |
| Arm Length | 1.38 in |
| Height Under Arm | 1.320 in |
| Arm Movement | 92 |
| Handle Movement | 70 |
| Mounting Hole Diameter | 0.260 in |
| Mounting Hole Spacing Along Length | 0.870 in |
| Mounting Hole Spacing Along Width | 1.000 in |
| Base Type | Flanged |
| Arm Type | U-Bar |
| Spindle Type | Neoprene Tipped |
| Spindle Thread Size | M8, 5/16 |
