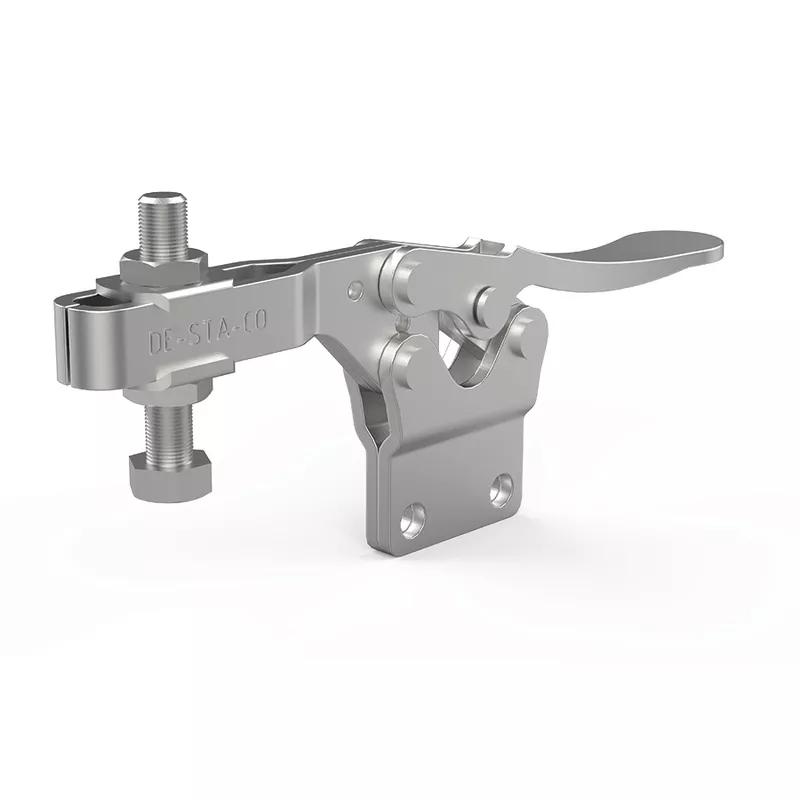

Manual Horizontal Hold Down Clamp - Holding Capacity 2668.9 N | 600 lbf; Height Under Arm 41.4 mm | 1.630 in; Base Type Straight; Bar Type U-Bar
2.130 inH x 6.700 inL Horizontal Manual Hold Down Clamp has a U-Bar and Straight base providing of holding force while saving work space. Manufacturer Part Number: 225-UBSS
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $72.90 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 225-UBSS |
| Manufacturer Part Number | 225-UBSS |
| Holding Capacity | 600 lbf |
| Holding Capacity | 600 lbf |
| Base Length | 1.50 in |
| Base Length | 1.50 in |
| Base Width | 1.37 in |
| Base Width | 1.37 in |
| Overall Height | 2.13 in |
| Overall Height | 2.13 in |
| Overall Length | 6.70 in |
| Overall Length | 6.70 in |
| Height Under Arm | 1.630 in |
| Height Under Arm | 1.630 in |
| Arm Movement | 92 |
| Arm Movement | 92 |
| Handle Movement | 70 |
| Handle Movement | 70 |
| Mounting Hole Spacing Along Length | 0.870 in |
| Mounting Hole Spacing Along Length | 0.870 in |
| Mounting Hole Spacing Along Width | 1.000 in |
| Mounting Hole Spacing Along Width | 1.000 in |
| Base Type | Straight |
| Base Type | Straight |
| Arm Type | U-Bar |
| Arm Type | U-Bar |
| Spindle Type | SS Hex Head |
| Spindle Type | SS Hex Head |
| Spindle Thread Size | M8, 5/16 |
| Spindle Thread Size | M8, 5/16 |
