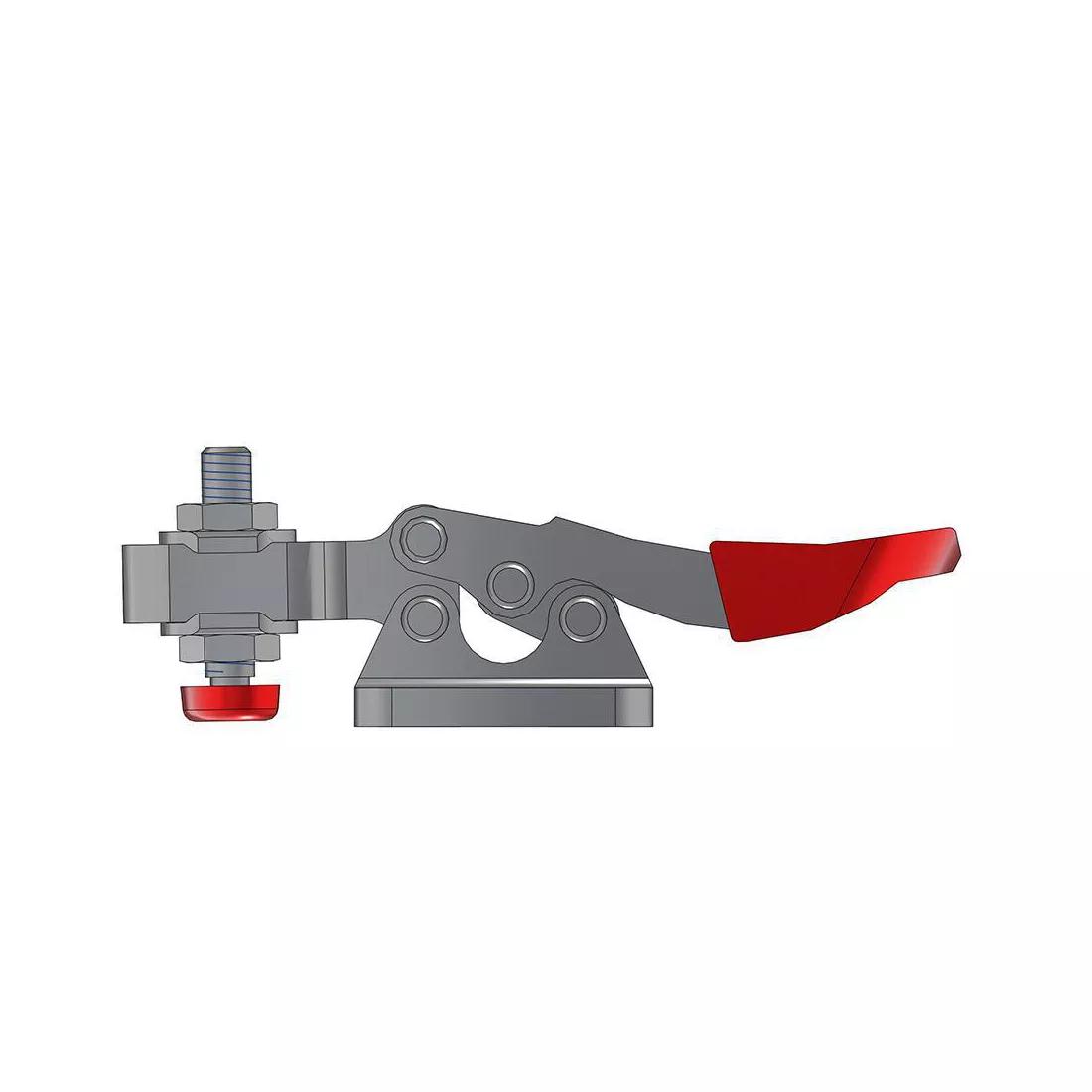

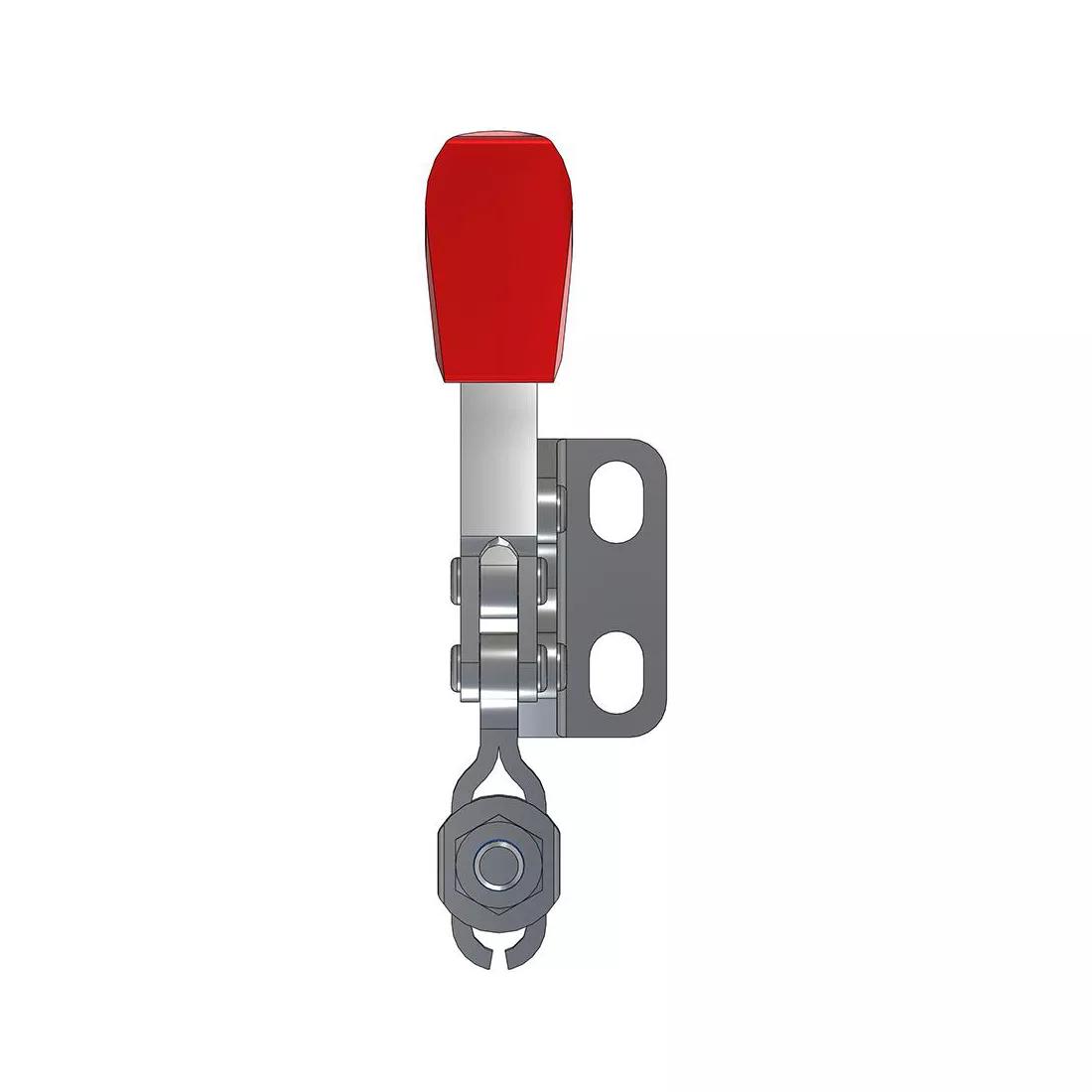

Manual Horizontal Hold Down Clamp - Holding Capacity 266.9 N | 60 lbf; Height Under Arm 7.9 mm | 0.310 in; Base Type Left Flange; Bar Type U-Bar
.670 inH x 2.650 inL Horizontal Manual Hold Down Clamp has a U-Bar and Left Flange base providing of holding force while saving work space. Manufacturer Part Number: 205-UL
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $19.33 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Destaco |
|---|---|
| Manufacturer Part Number | 205-UL |
| Holding Capacity | 60 lbf |
| Base Width | 0.95 in |
| Overall Height | .67 in |
| Overall Length | 2.65 in |
| Arm Length | 0.73 in |
| Height Under Arm | 0.310 in |
| Arm Movement | 90 |
| Handle Movement | 80 |
| Mounting Hole Spacing Along Width | 0.620 in |
| Base Type | Left Flange |
| Arm Type | U-Bar |
| Spindle Type | Neoprene Tipped |
| Spindle Thread Size | 8-32,M4 |
