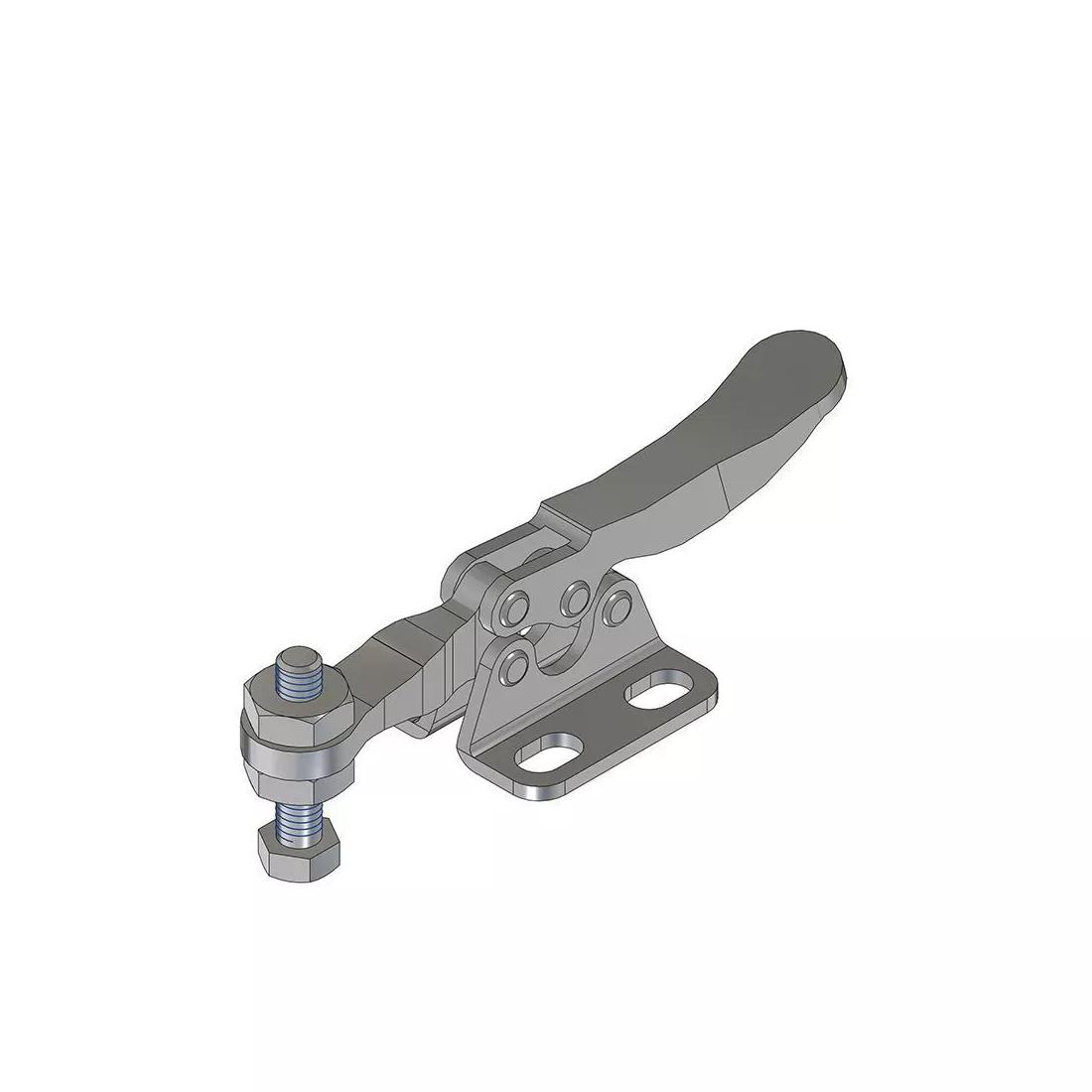

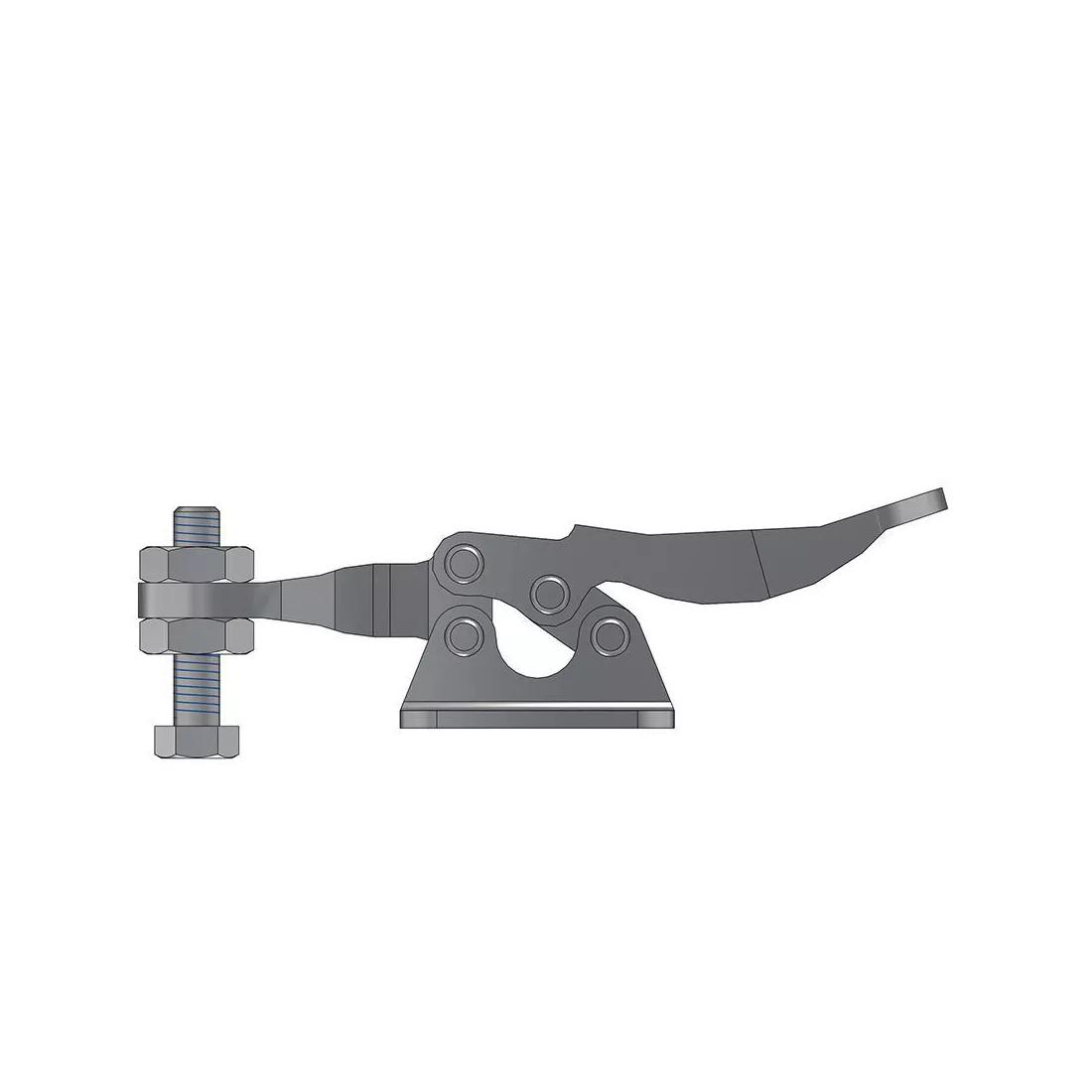

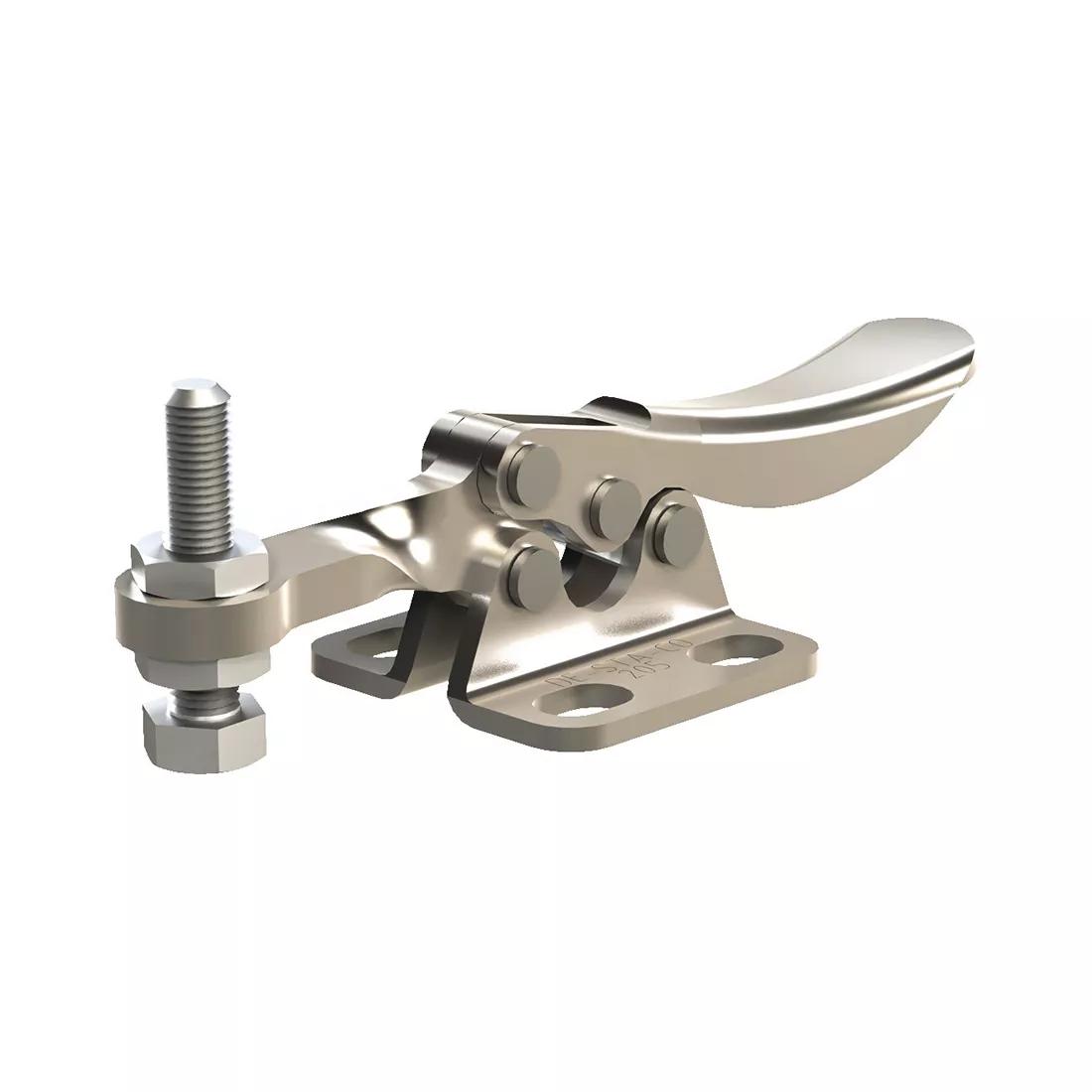

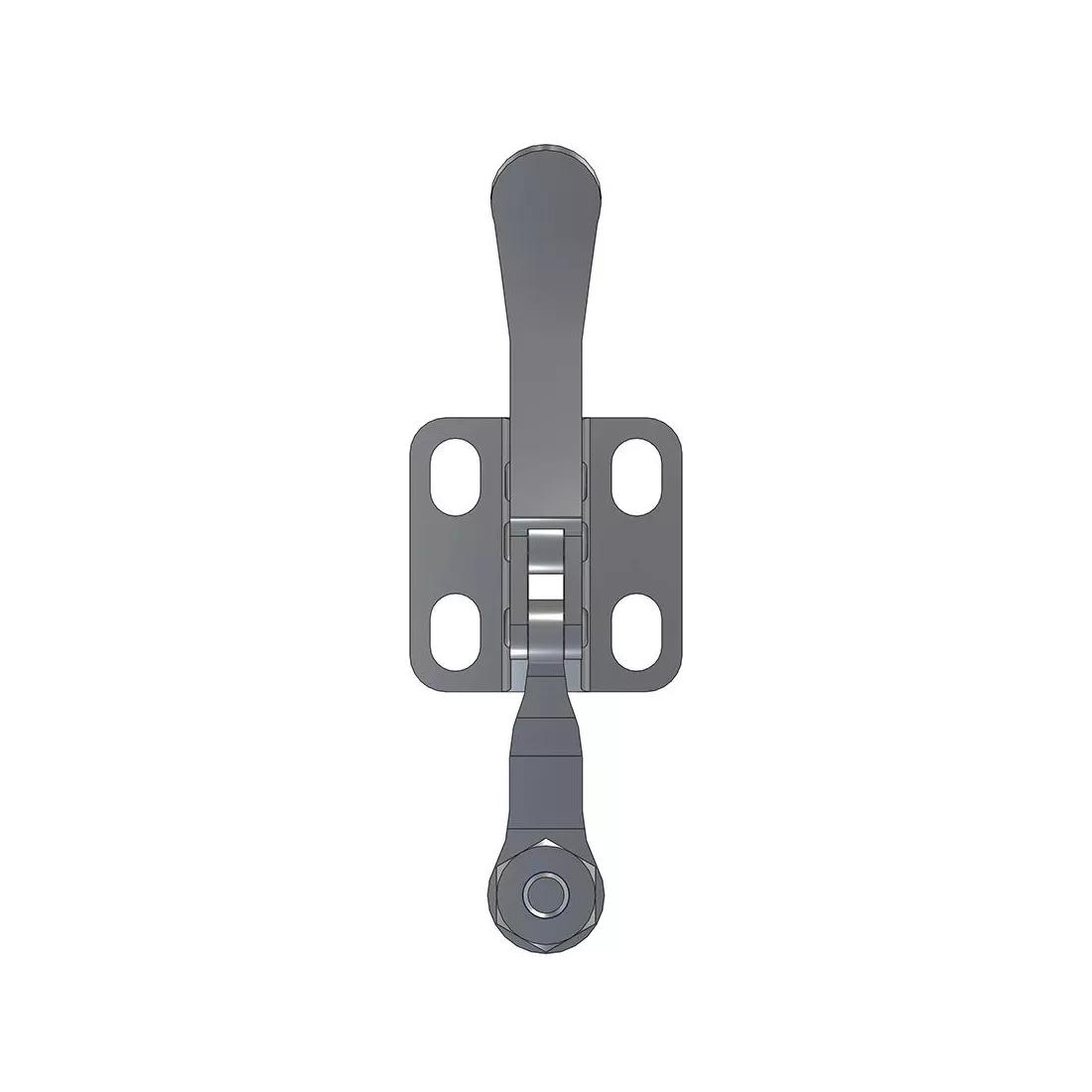

Manual Horizontal Hold Down Clamp - Holding Capacity 333.6 N | 75 lbf; Height Under Arm 9.4 mm | 0.370 in; Base Type Flanged; Bar Type Solid
.670 inH x 2.750 inL Horizontal Manual Hold Down Clamp has a Solid and Flanged base providing of holding force while saving work space. Manufacturer Part Number: 205-SSS
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $22.62 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 205-SSS |
| Holding Capacity | 75 lbf |
| Base Length | 0.95 in |
| Base Width | 0.95 in |
| Overall Height | 0.67 in |
| Overall Length | 2.75 in |
| Height Under Arm | 0.370 in |
| Arm Movement | 94 |
| Handle Movement | 82 |
| Mounting Hole Spacing Along Length | 0.620 in |
| Mounting Hole Spacing Along Width | 0.620 in |
| Base Type | Flanged |
| Arm Type | Solid |
| Spindle Type | Hex Head |
| Spindle Thread Size | 8-32,M4 |
