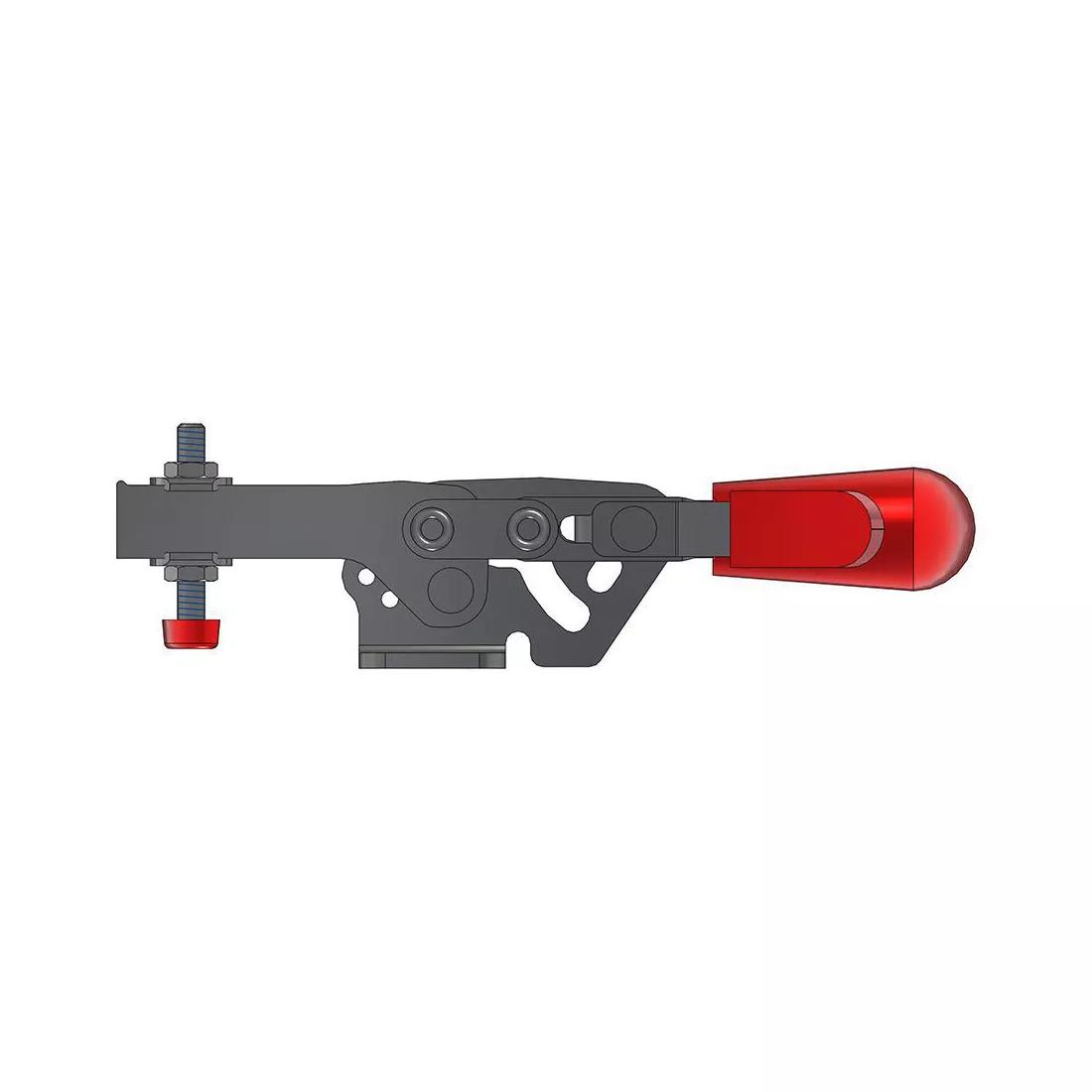

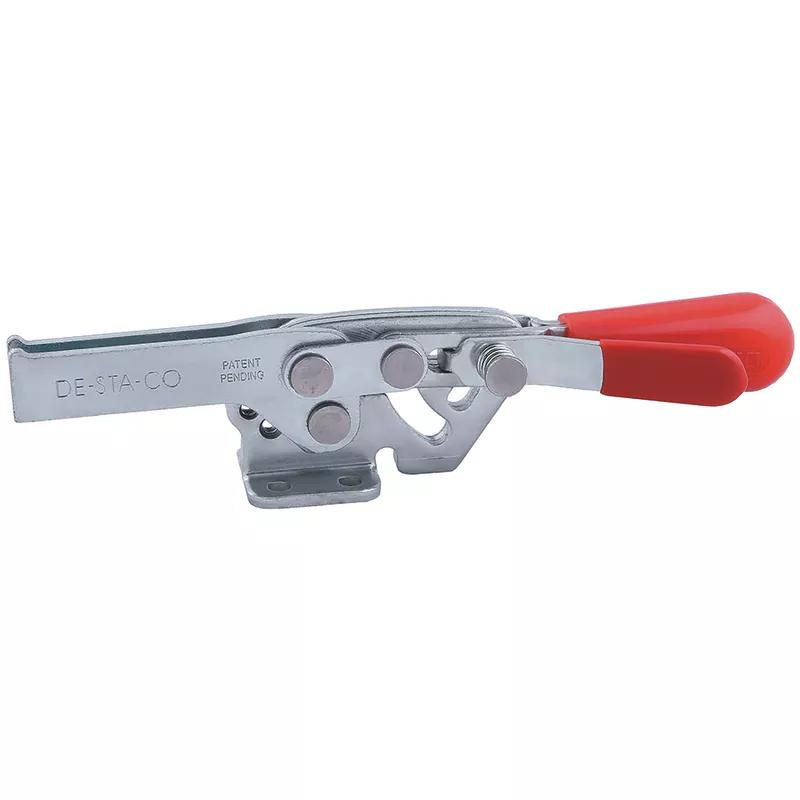

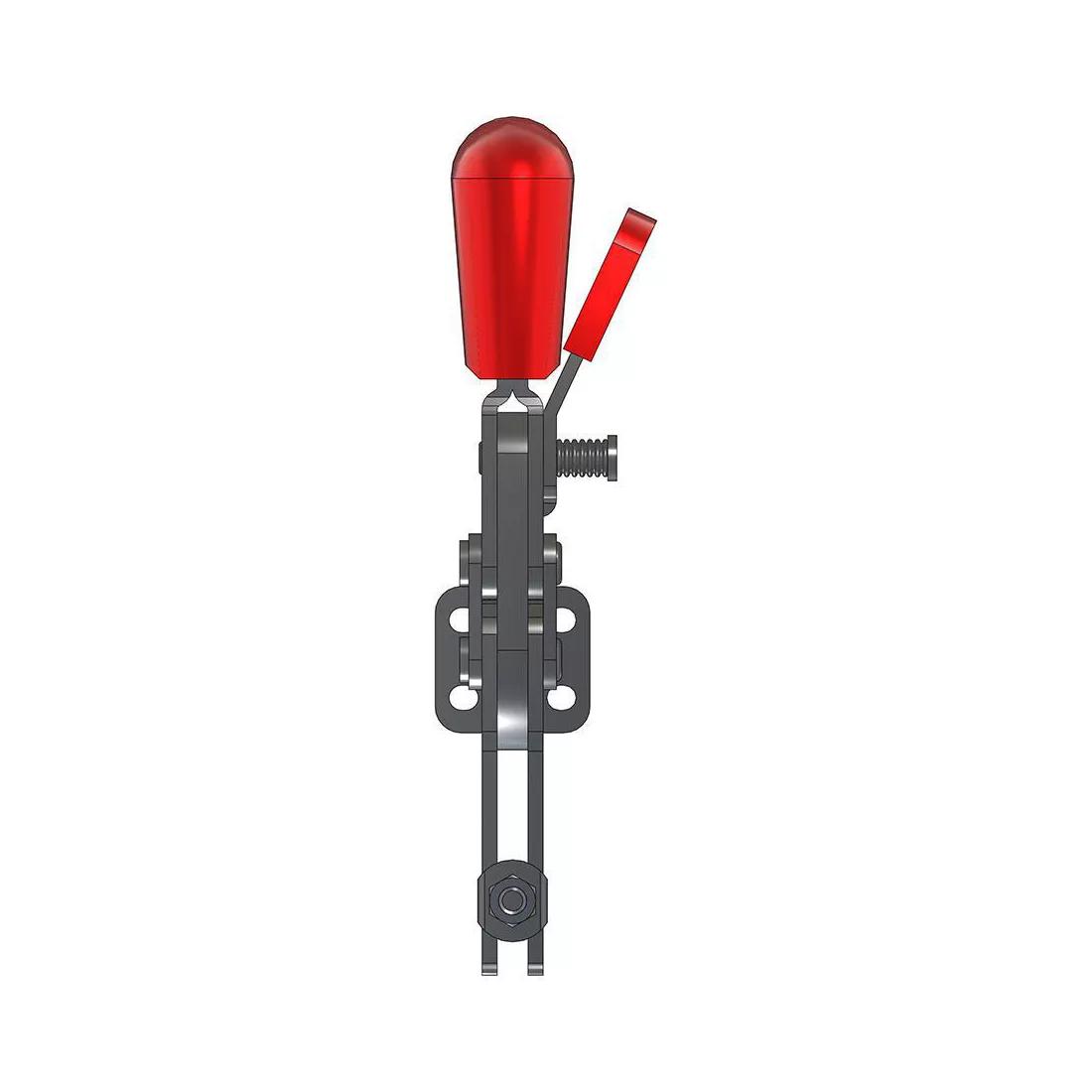

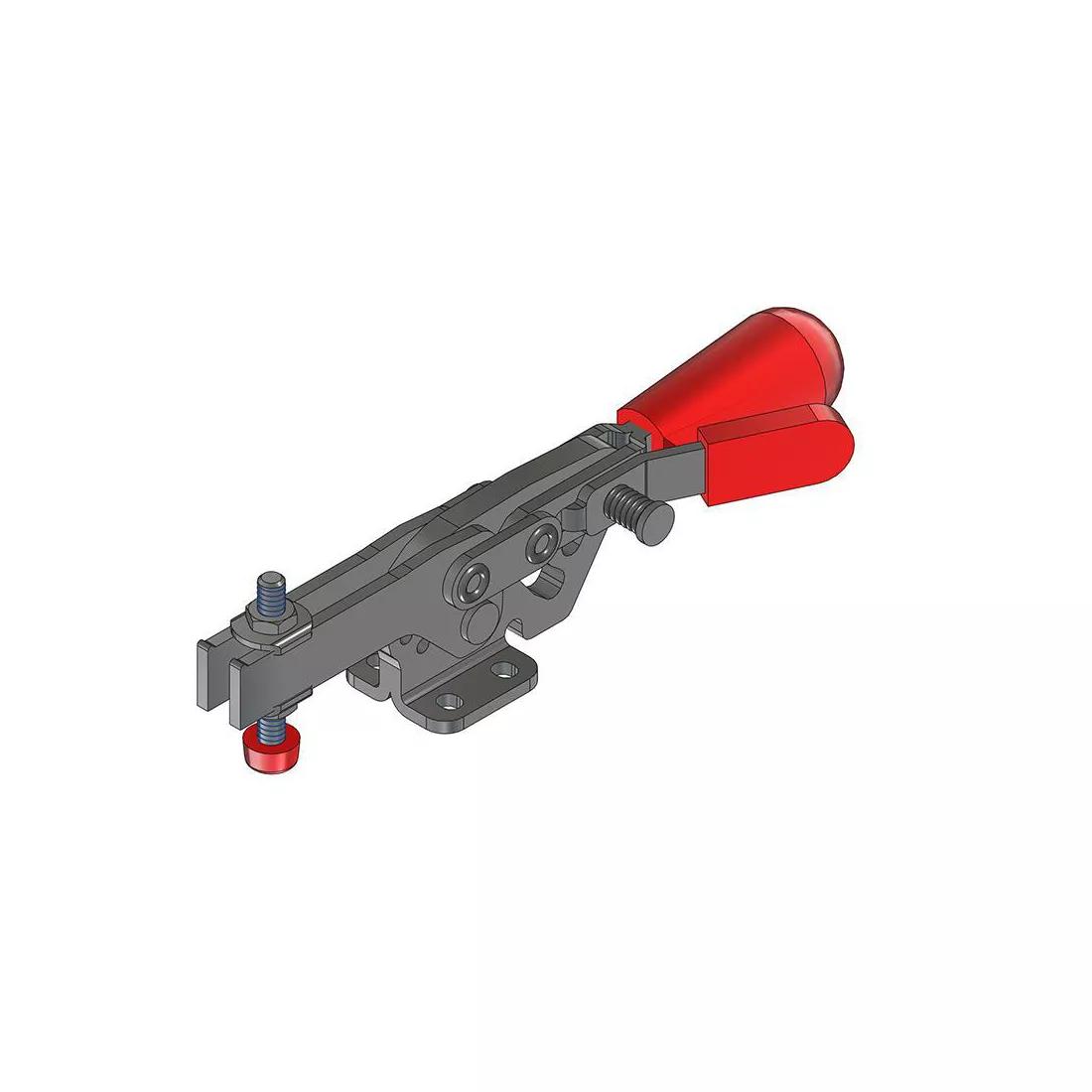

Manual Horizontal Hold Down Clamp - Holding Capacity 1312.2 N | 295 lbf; Height Under Arm 19.1 mm | 0.750 in; Base Type Flanged; Bar Type U-Bar
1.270 inH x 5.880 inL Horizontal Manual Hold Down Clamp has a U-Bar and Flanged base providing of holding force while saving work space. Manufacturer Part Number: 2013-UR
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $41.31 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 2013-UR |
| Holding Capacity | 295 lbf |
| Base Length | 1.00 in |
| Base Width | 1.06 in |
| Overall Height | 1.27 in |
| Overall Length | 5.88 in |
| Arm Length | 2.65 in |
| Height Under Arm | 0.750 in |
| Arm Movement | 70 |
| Handle Movement | 58 |
| Mounting Hole Diameter | 0.170 in |
| Mounting Hole Spacing Along Length | .70 in |
| Mounting Hole Spacing Along Width | 0.530 in |
| Base Type | Flanged |
| Arm Type | U-Bar |
| Spindle Thread Size | 10-32,M5 |
