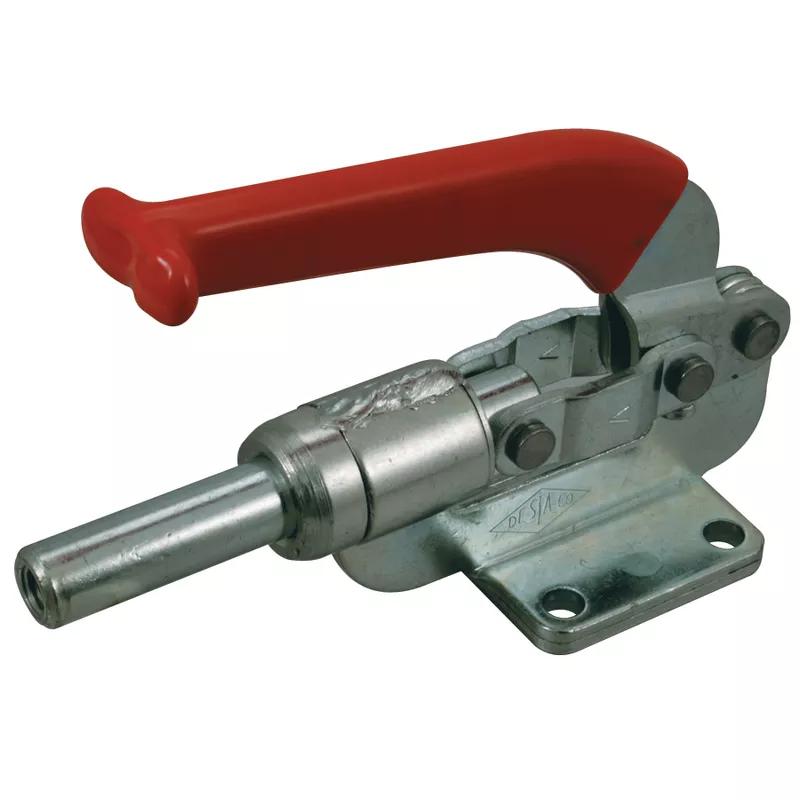

Manual Push-Pull Clamp - Flanged Base; Holding Capacity 3558.6 N | 800 lbf; Plunger Travel 41.4 mm; Plunger Diameter 16 mm | 0.630 in; Plunger Thread Size 3/8-16;M10
Flanged Base Manual Push Pull Clamp fits spindle threads to hold materials in place with 800 lbs of force. The low profile clamp uses a Forward Action to prevent slippage and movement. Manufacturer Part Number: 610
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $40.91 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 610 |
| Holding Capacity | 800 lbf |
| Plunger Travel | 41.4 mm |
| Plunger Diameter | 0.630 in |
| Plunger Thread Type | Internal Thread |
| Plunger Thread Size | 3/8-16;M10 |
| Overall Length | 6.720 in |
| Overall Height | 4.380 in |
| Height to Plunger Center | 43.2 mm |
| Base Width | 2.250 in |
| Base Length | 2.250 in |
| Mount Type | Flange Mount |
| Handle Movement Action | Forward Action |
