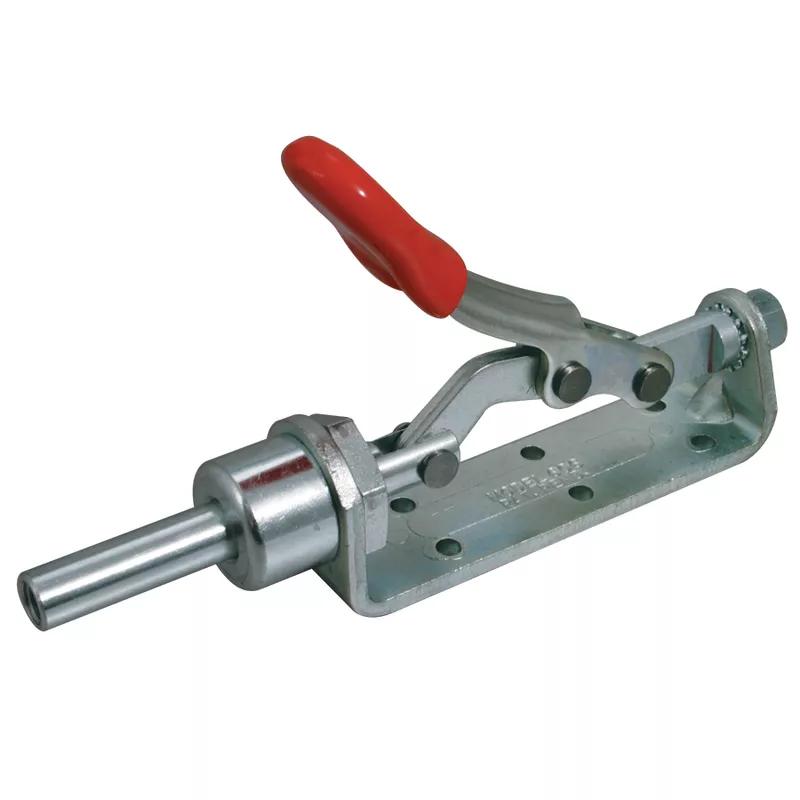

Manual Push-Pull Clamp - Flanged Base; Holding Capacity 2001.7 N | 450 lbf; Plunger Travel 38.1 mm; Plunger Diameter 11.2 mm | 0.440 in; Plunger Thread Size 5/16-18;M8
Flanged Base Manual Push Pull Clamp fits spindle threads to hold materials in place with 450 lbs of force. The low profile clamp uses a Forward Swivel Action to prevent slippage and movement. Manufacturer Part Number: 606
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $52.56 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 606 |
| Holding Capacity | 450 lbf |
| Plunger Travel | 38.1 mm |
| Plunger Diameter | 0.440 in |
| Plunger Thread Type | Internal Thread |
| Plunger Thread Size | 5/16-18;M8 |
| Overall Length | 6.720 in |
| Overall Height | 2.620 in |
| Height to Plunger Center | 22.4 mm |
| Base Width | 1.130 in |
| Base Length | 4.270 in |
| Mount Type | Flange Mount |
| Handle Movement Action | Forward Swivel Action |
