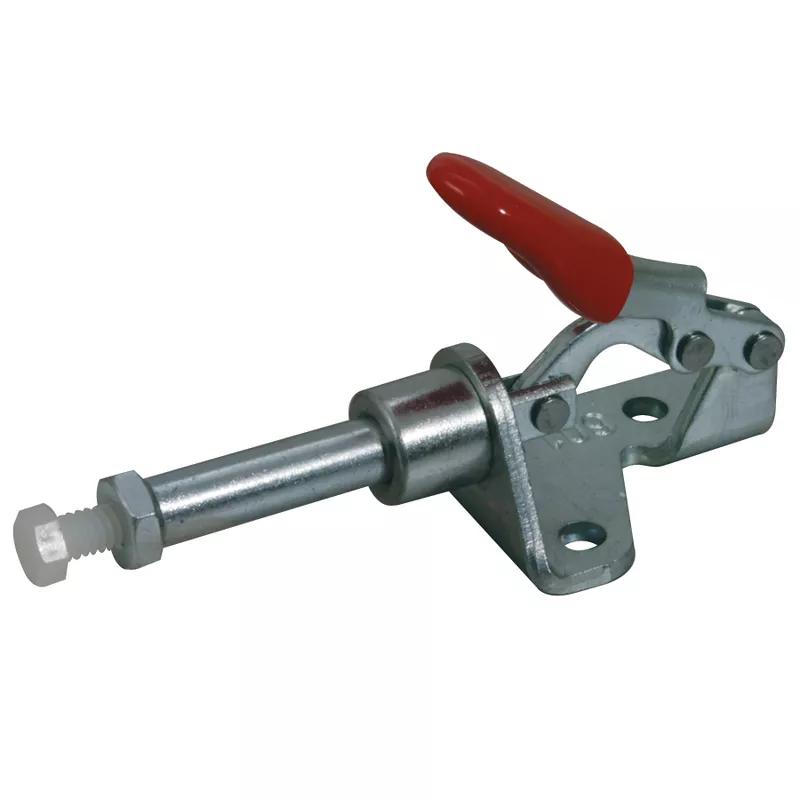

Manual Push-Pull Clamp - Flanged Base; Holding Capacity 444.8 N | 100 lbf; Plunger Travel 16 mm; Plunger Diameter 6.4 mm | 0.250 in; Plunger Thread Size 8-32;M4
Flanged Base Manual Push Pull Clamp fits spindle threads to hold materials in place with 100 lbs of force. The low profile clamp uses a Forward Action to prevent slippage and movement. Manufacturer Part Number: 601
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $15.34 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 601 |
| Holding Capacity | 100 lbf |
| Plunger Travel | 16 mm |
| Plunger Diameter | 0.250 in |
| Plunger Thread Type | Internal Thread |
| Plunger Thread Size | 8-32;M4 |
| Overall Length | 2.620 in |
| Overall Height | 1.190 in |
| Height to Plunger Center | 12.7 mm |
| Base Width | 1.050 in |
| Base Length | 1.330 in |
| Mount Type | Flange Mount |
| Handle Movement Action | Forward Action |
