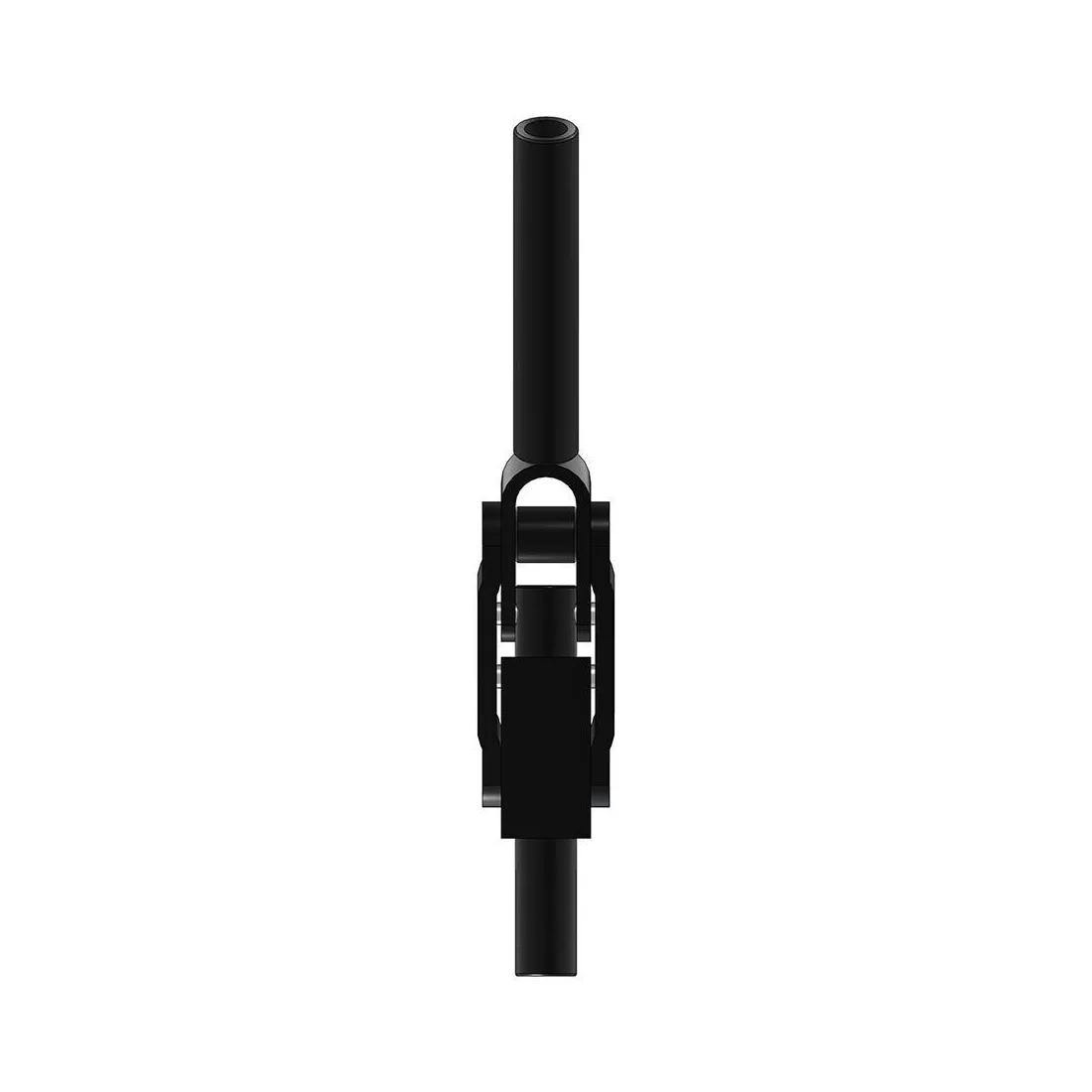

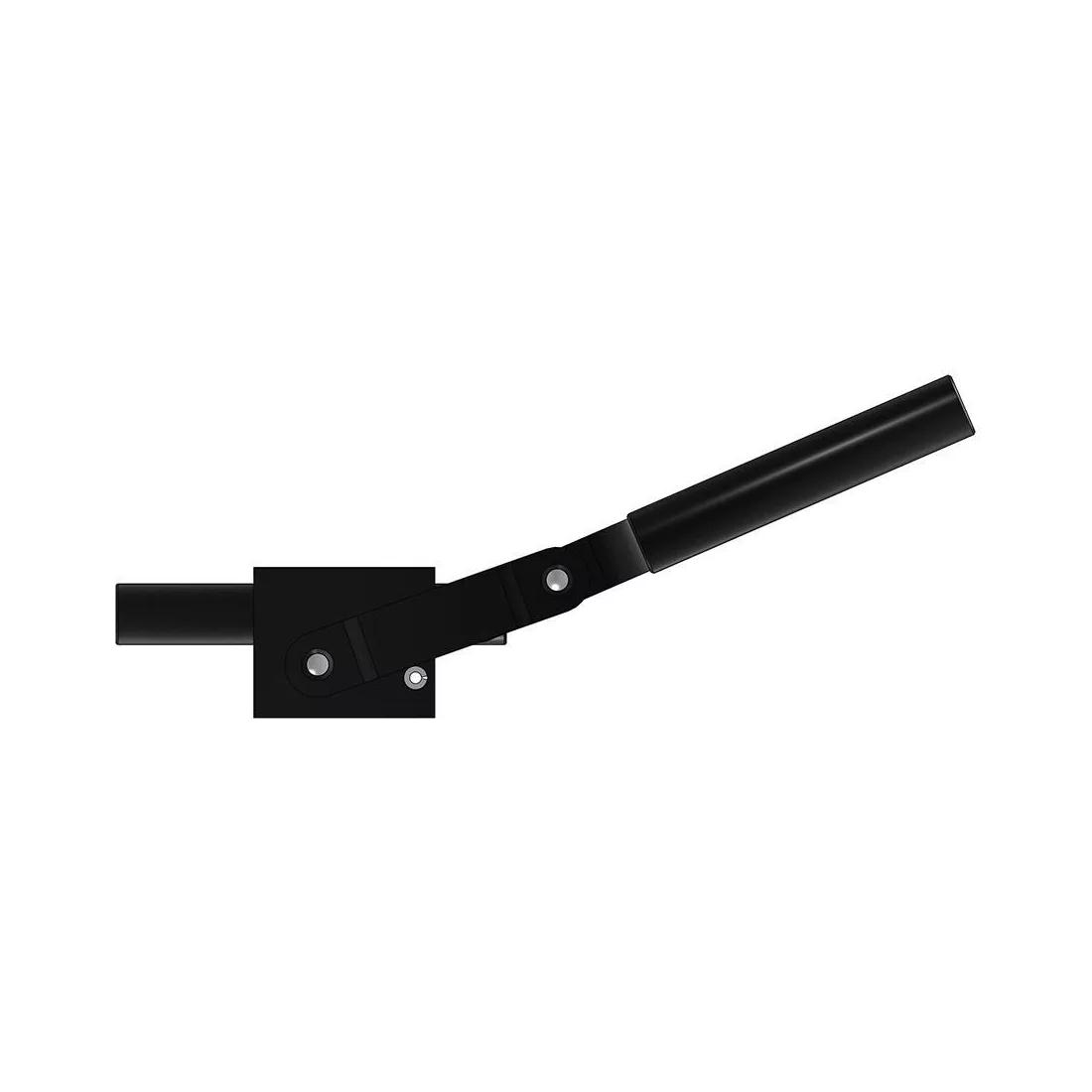

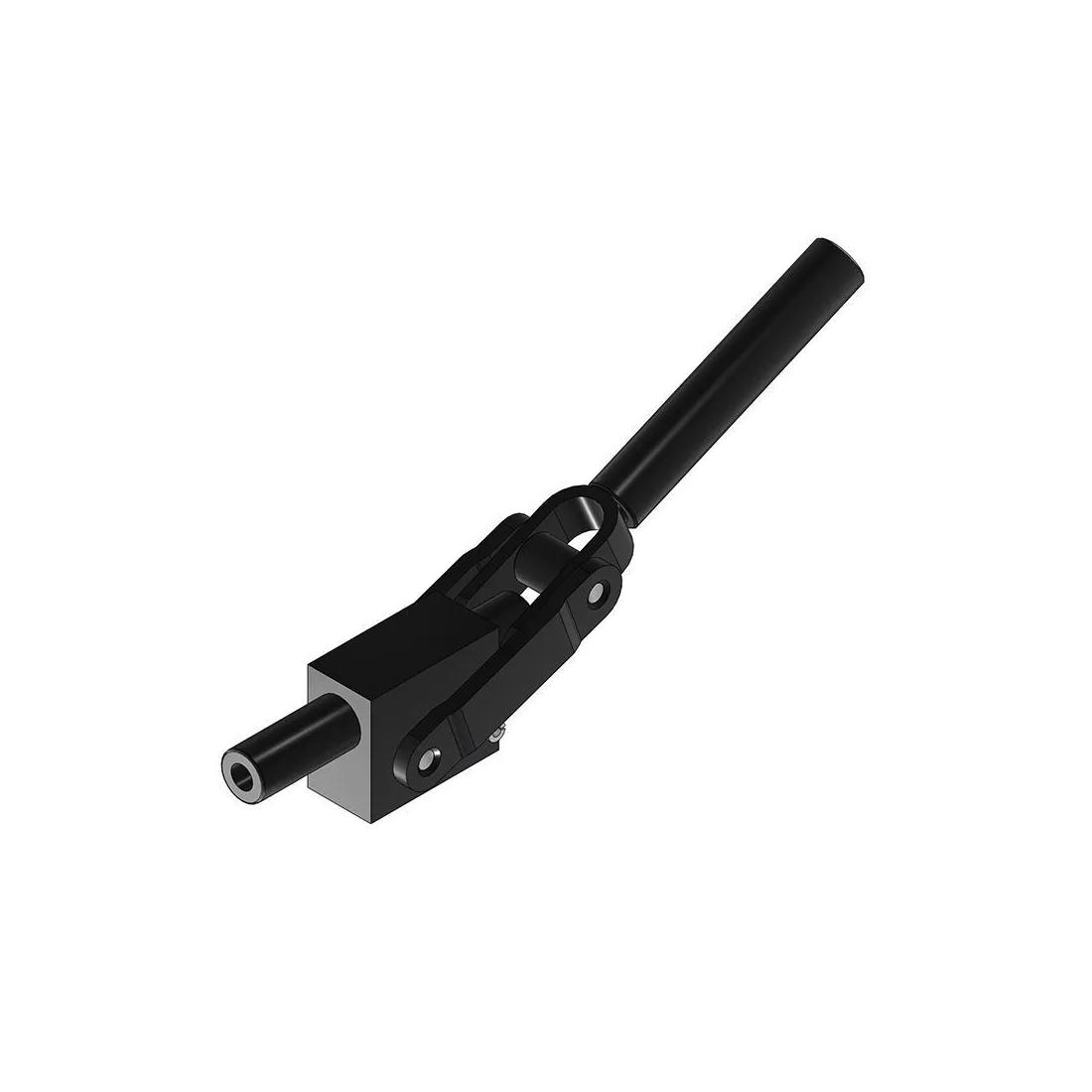

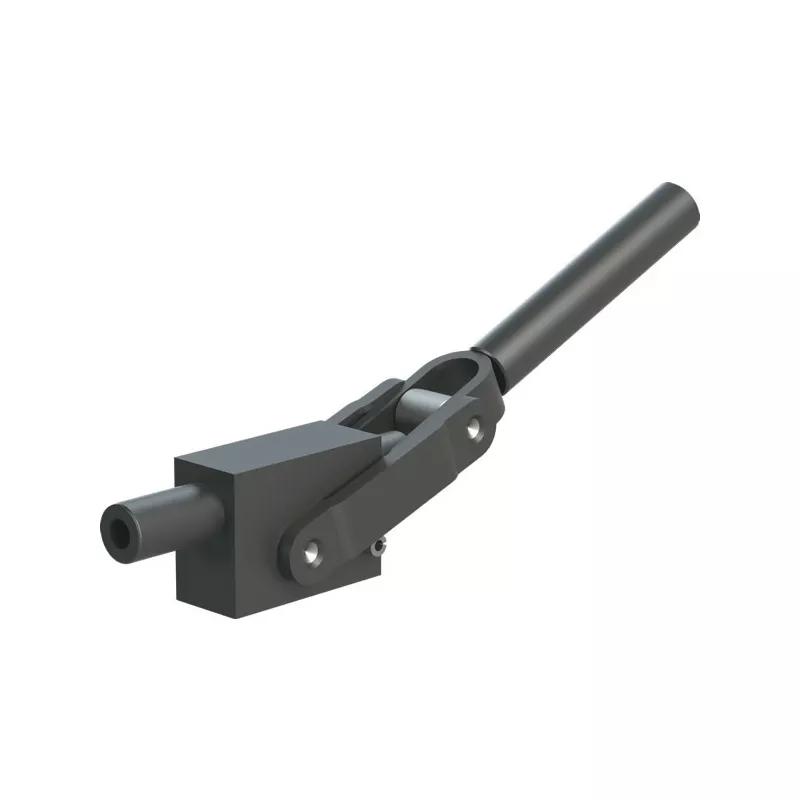

Manual Push-Pull Clamp - Weld On; Holding Capacity 11120.6 N | 2500 lbf; Plunger Travel 25.4 mm; Plunger Diameter 13 mm | 0.510 in; Plunger Thread Size M8
Weld On Manual Push Pull Clamp fits M8 spindle threads to hold materials in place with 2500 lbs of force. The low profile clamp uses a Reverse Action to prevent slippage and movement. Manufacturer Part Number: 5131-MB
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $57.32 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | DESTACO |
|---|---|
| Manufacturer Part Number | 5131-MB |
| Holding Capacity | 2500 lbf |
| Plunger Travel | 25.4 mm |
| Plunger Diameter | 0.510 in |
| Plunger Thread Size | M8 |
| Overall Length | 7.370 in |
| Overall Height | 2.910 in |
| Height to Plunger Center | 22.1 mm |
| Mount Type | Weld-On |
| Handle Movement Action | Reverse Action |
