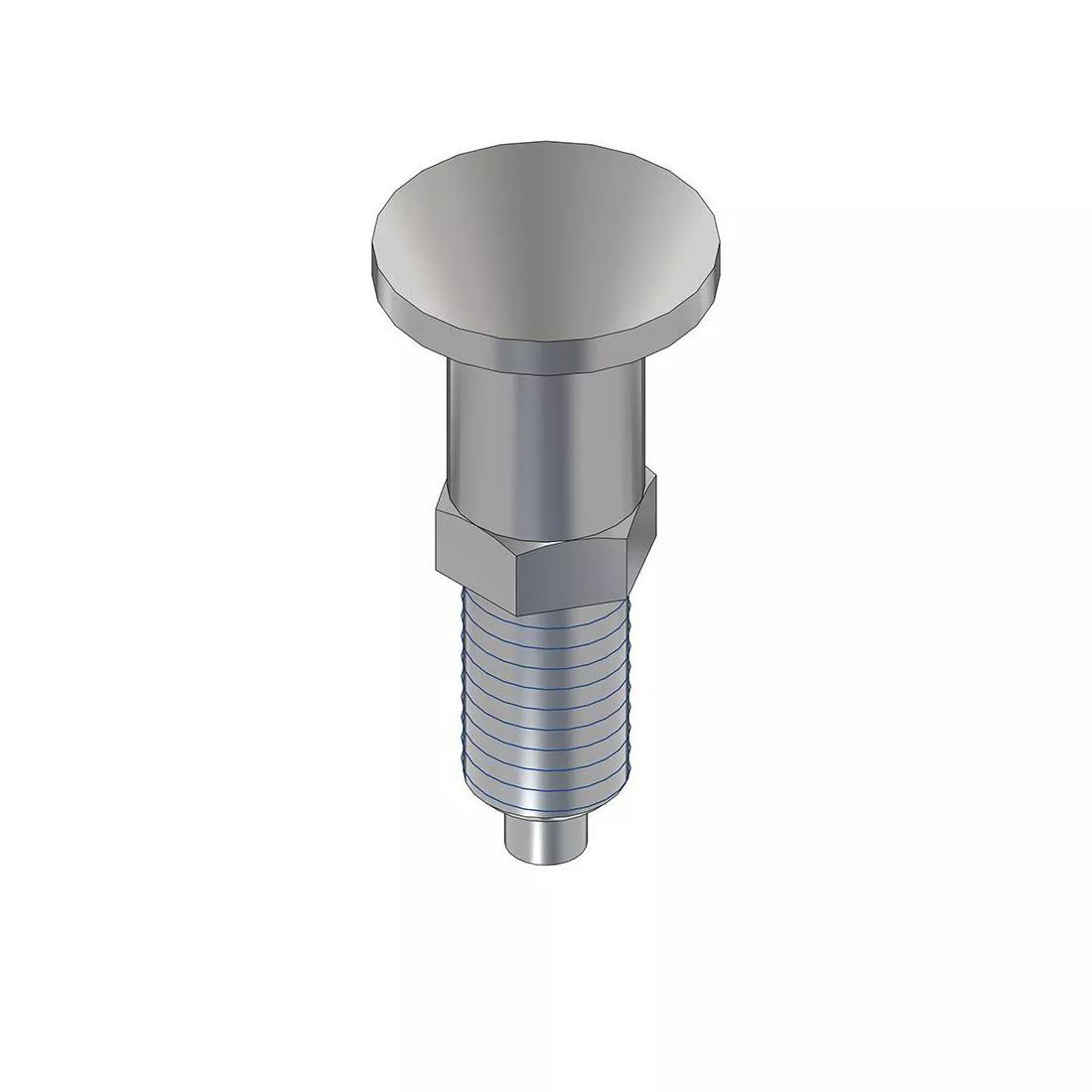

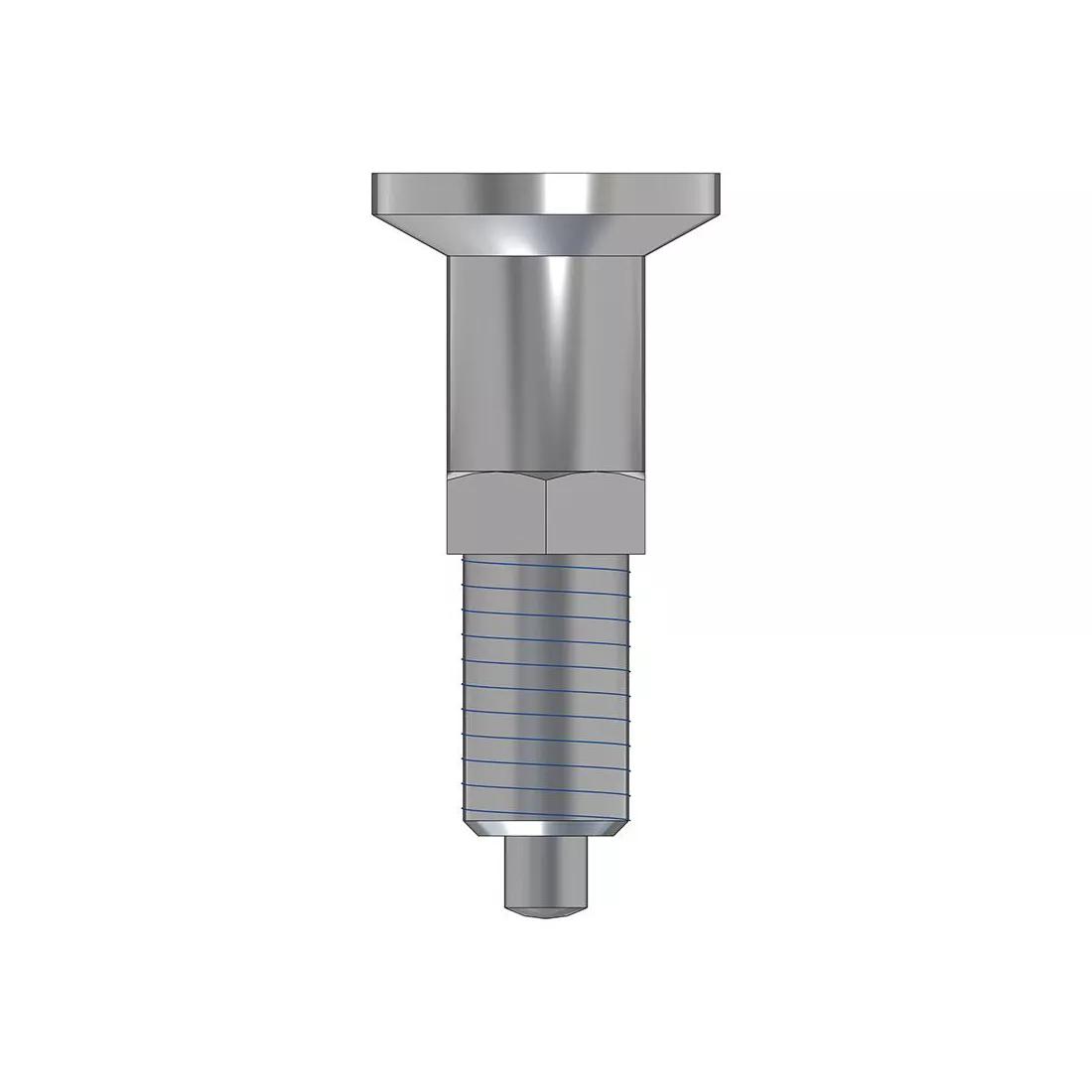

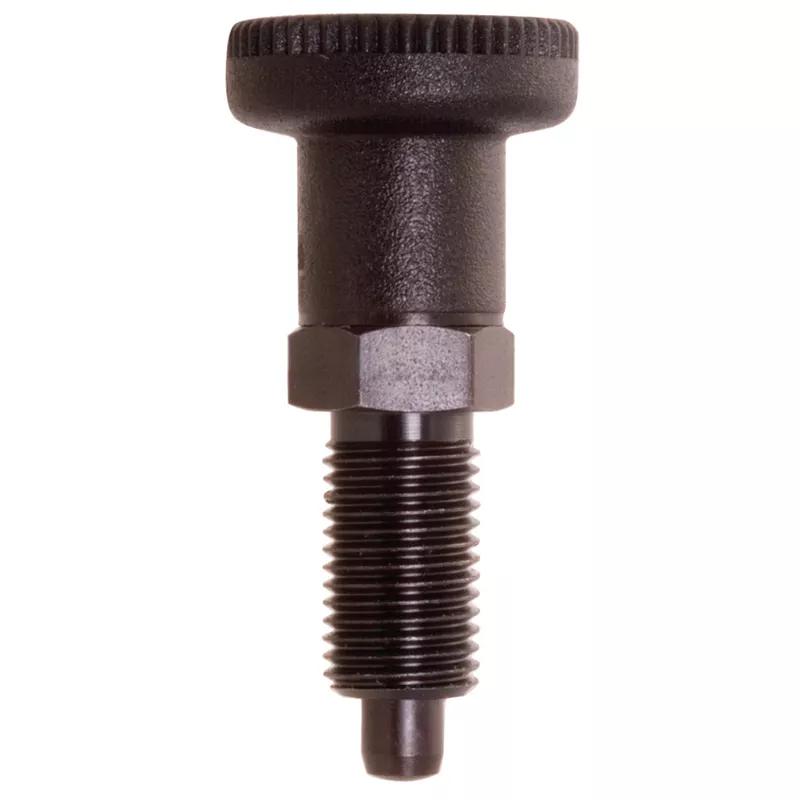

Non Locking Threaded Index Plunger - Body Thread Size M10 x 1; ; Nose Diameter 5.0 mm | 0.197 in; Initial End Force 7.0 N; Final End Force 17.0 N
WIP-110 Manufacturer Part Number: 617-5-M10X1-A
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $11.38 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Initial End Force | 7.0 N |
|---|---|
| Final End Force | 17.0 N |
| Body Thread Size | M10 x 1 |
| Nose Diameter | 0.197 in |
| Handle Type | Round Knurled Knob Handle |
| Body Material | Steel |
| Nose Material | Steel |
| Body Length | 0.669 in |
| Nose Projection | 0.197 in |
| Handle Diameter | 0.827 in |
| Handle Material | Black Matte Plastic |
| Overall Length | 1.772 in |
| Handle Locking Type | Non-Locking |
| Material | Steel |
| Type | Indexing Plungers |
