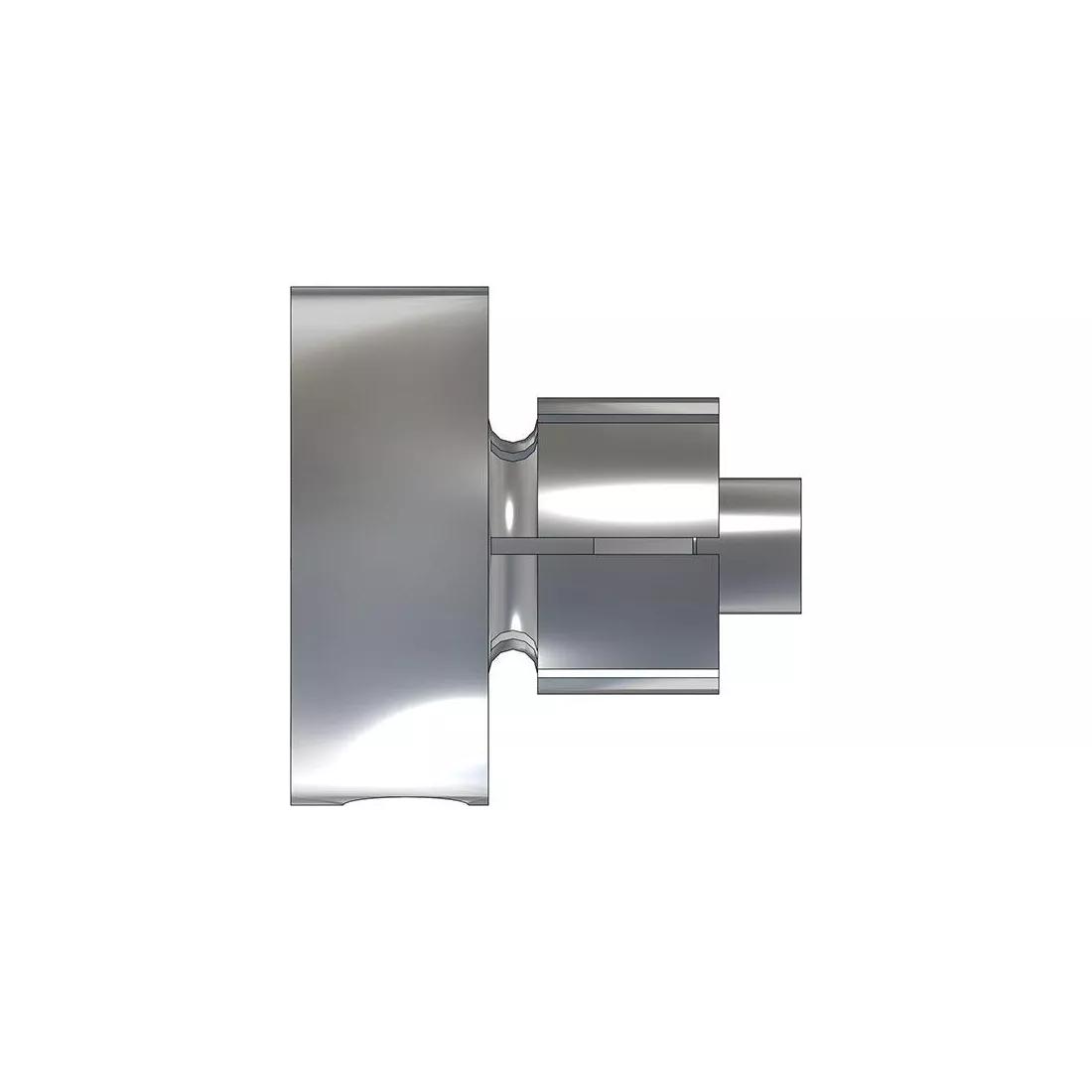

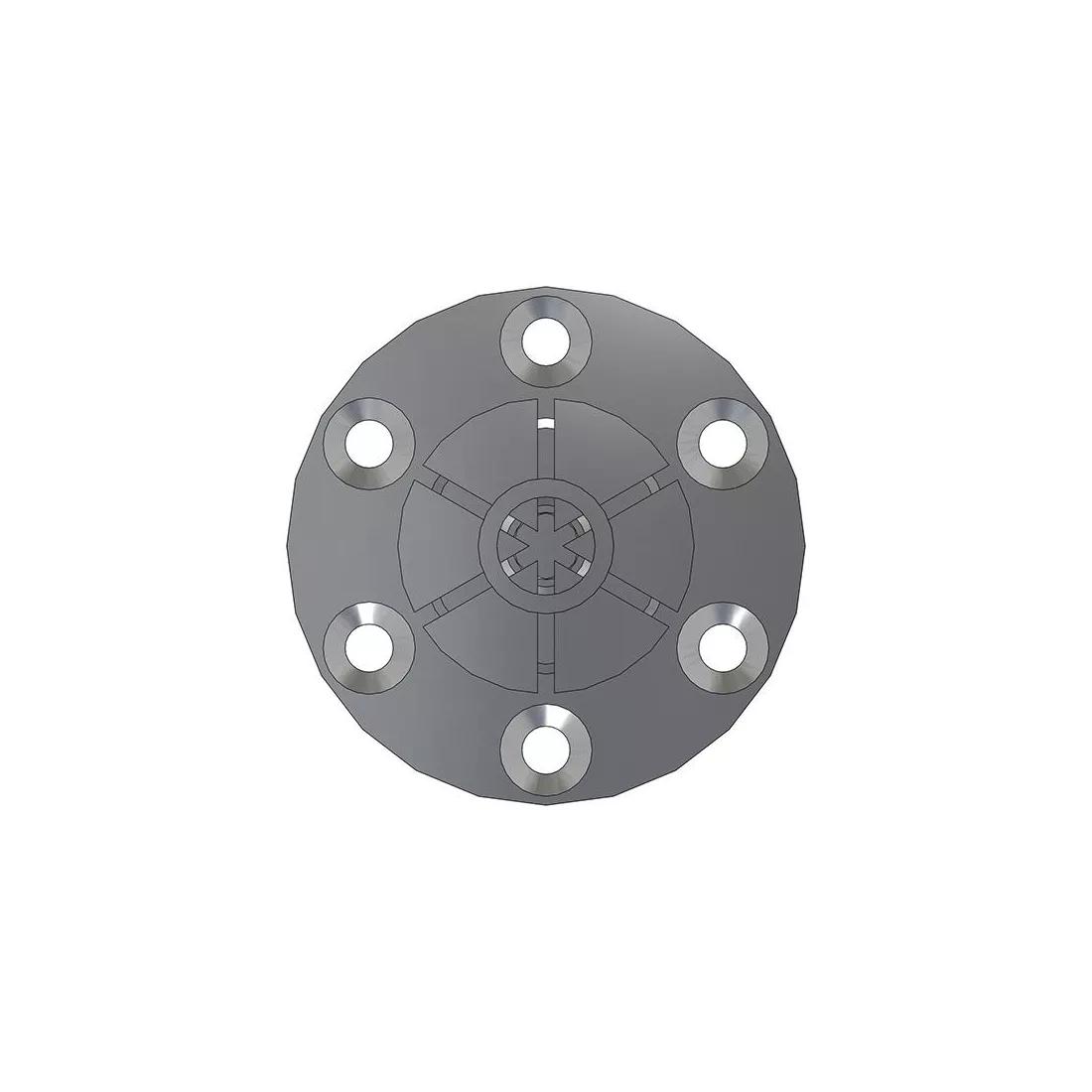

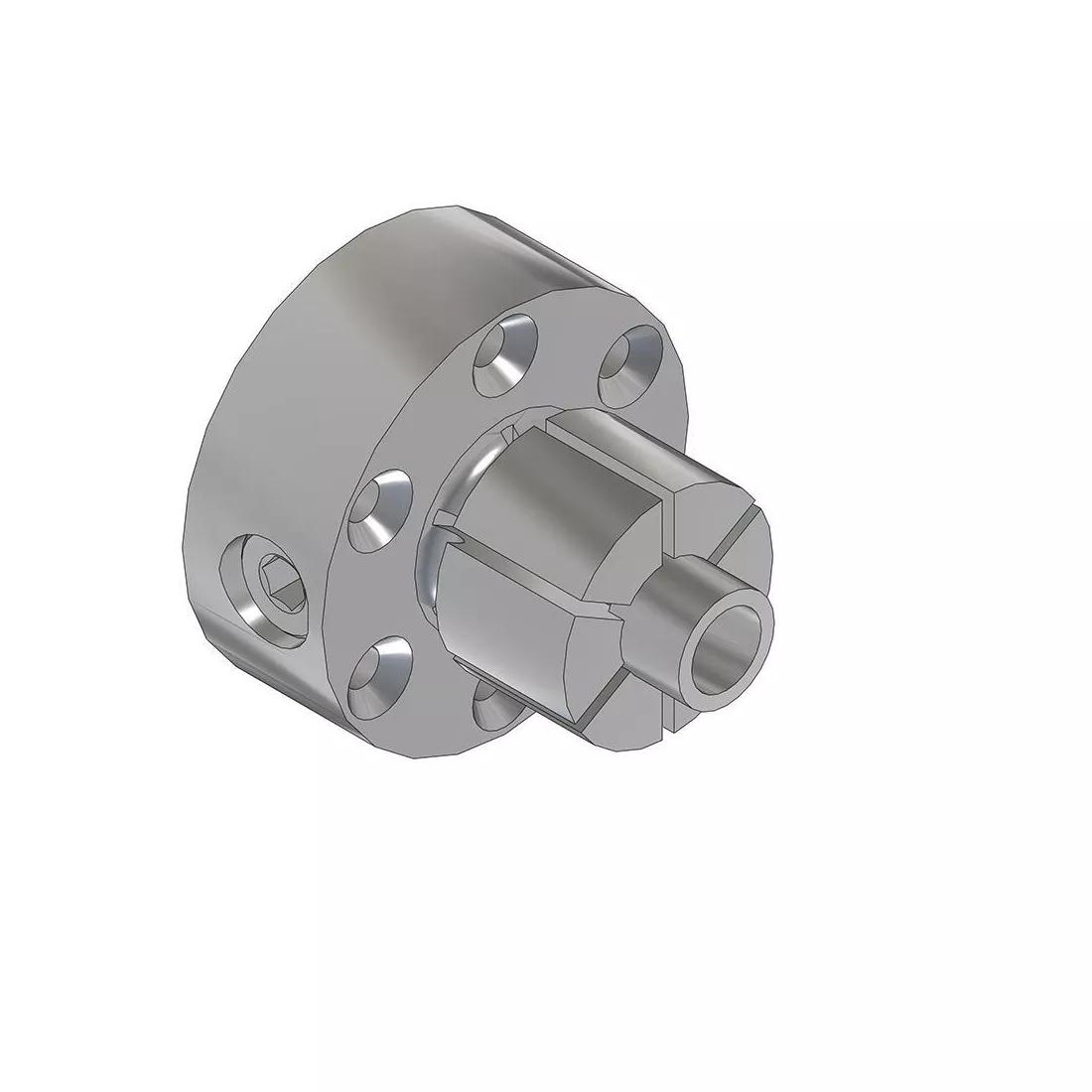

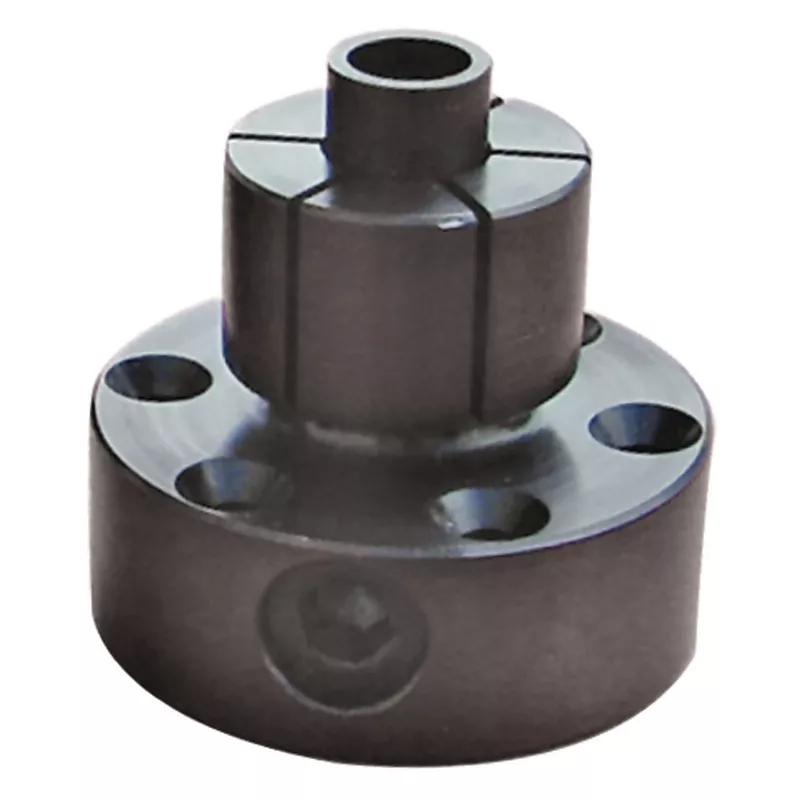

ID Expansion Clamp; Maximum Compatible Inside Diameter=28.7 mm,
8-32 x 1.550 BHCS Mount Milling holds multiple parts on a .71 in-1.13 in I.D. for machining on secondary operations on lathe parts. Manufacturer Part Number: 31210
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Mitee-Bite |
|---|---|
| Manufacturer Part Number | 31210 |
| Type | ID Expansion Clamps |
| Holding Capacity | 4000 lbf |
| Mount Type | 8-32 x 1.550 BHCS |
| Maximum Compatible Inside Diameter | 28.7 mm |
| Flange Diameter | 1.968 in |
| Flange Thickness | 0.750 in |
| Height Under Flange | .875 in |
