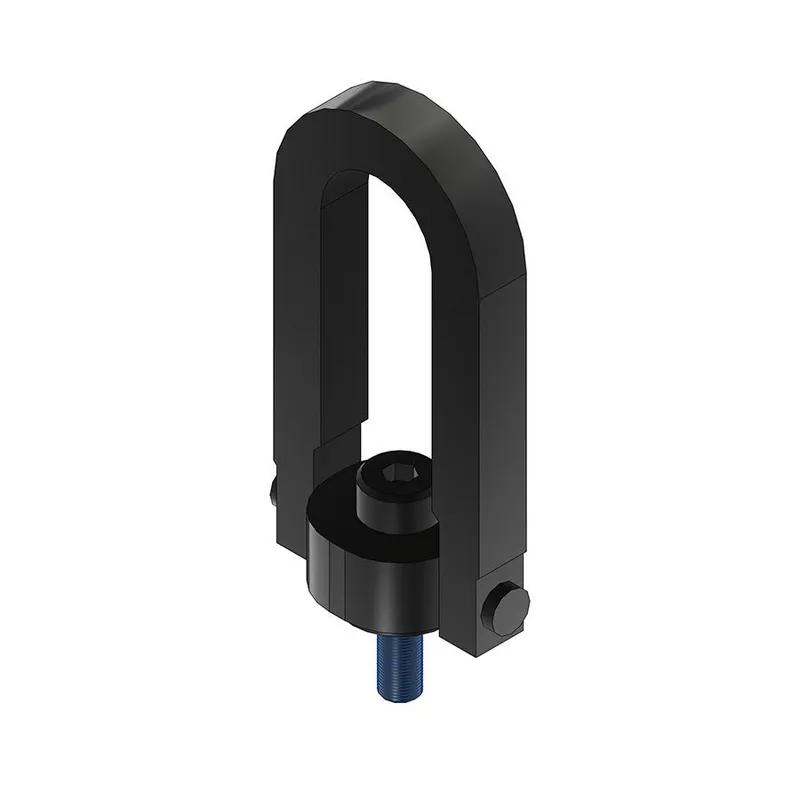

SHR-23324_Isometric Rendering

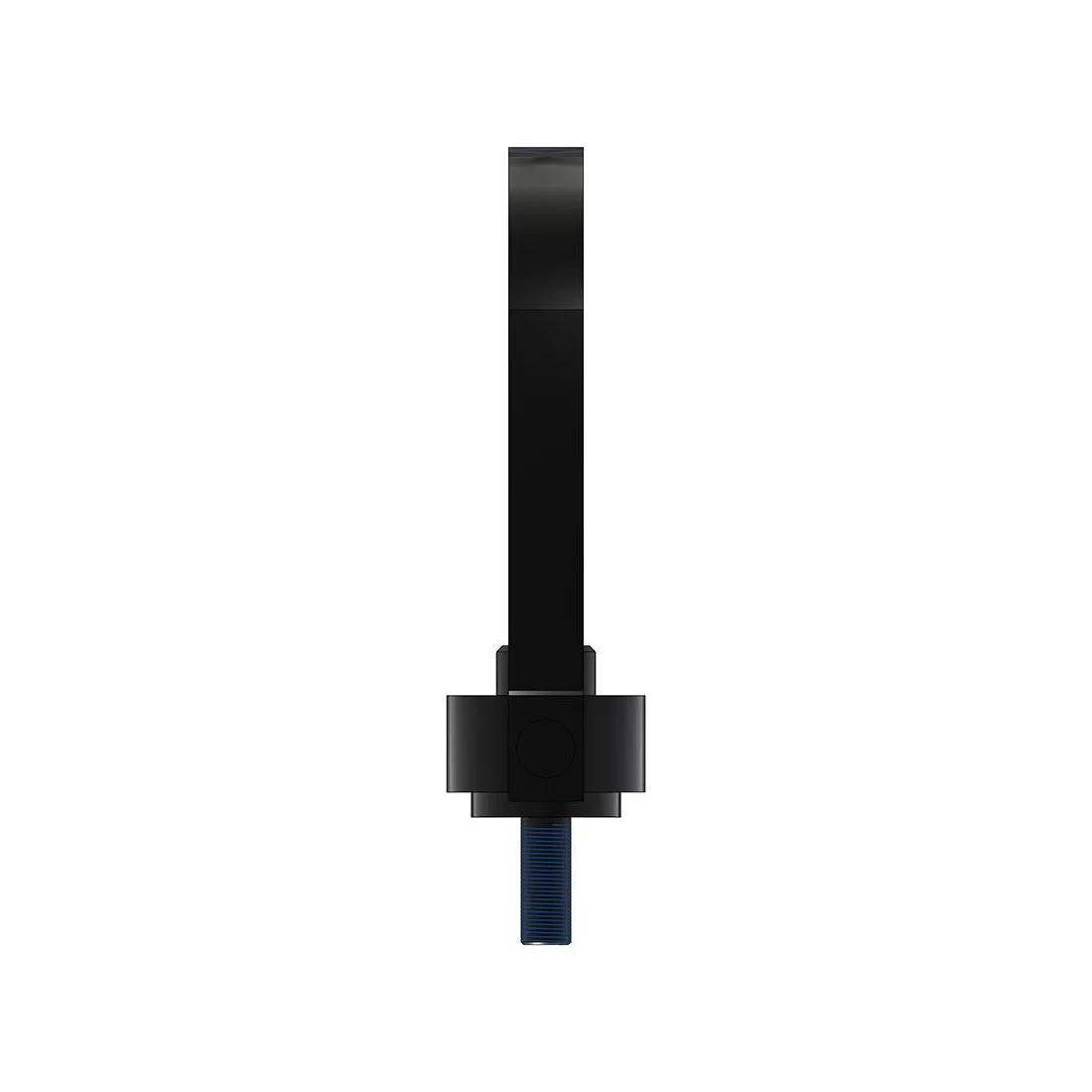

SHR-23324_Right Rendering

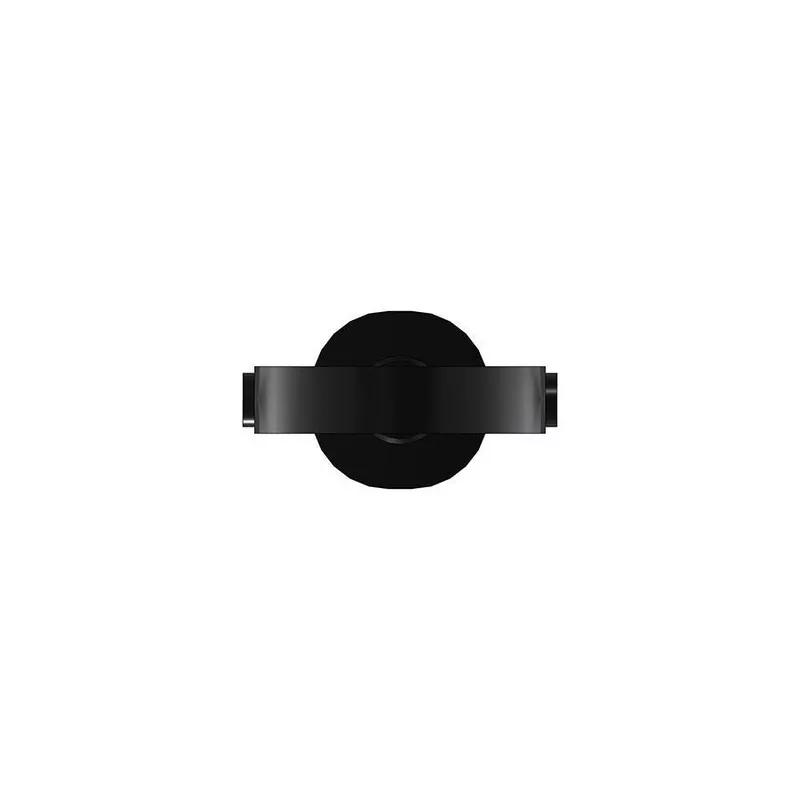

SHR-23324_Top Rendering

Hoist Ring; Load Capacity - 11120.6 N | 2500 lbf, Torque - 38 Nm | 28.0 lb-ft

Item code:

SHR-23324

Request the lead time here For more information Delivery & returns

Hoist Ring Manufacturer Part Number: 23324

SKU price information
Quantity	Unit price
1 +	$137.20

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Specifications

Imperial

Metric

SKU attributes
Brand	American Drill Bushing
Manufacturer Part Number	23324
Load Capacity	11120.6 N
Load Capacity	2500 lbf
Torque	38 Nm
Torque	28.0 lb-ft
Safety Factor	5:1
Ring Type	Hoist
Swivel Action	360 Degree Swivel
Base Height	31 mm
Base Height	1.220 in
Base Diameter	50.5 mm
Base Diameter	1.990 in
Ring Diameter	19.1 mm
Ring Diameter	0.750 in
Ring Inside Height	108 mm
Ring Inside Height	4.250 in
Bushing Width	38.1 mm
Bushing Width	38.1 mm
Bolt Length	32.5 mm
Bolt Length	1.280 in
Thread Size	1/2-13
Overall Width	89.4 mm
Overall Width	3.520 in
Overall Height	170.7 mm
Overall Height	6.720 in
Coating	Black Oxide
