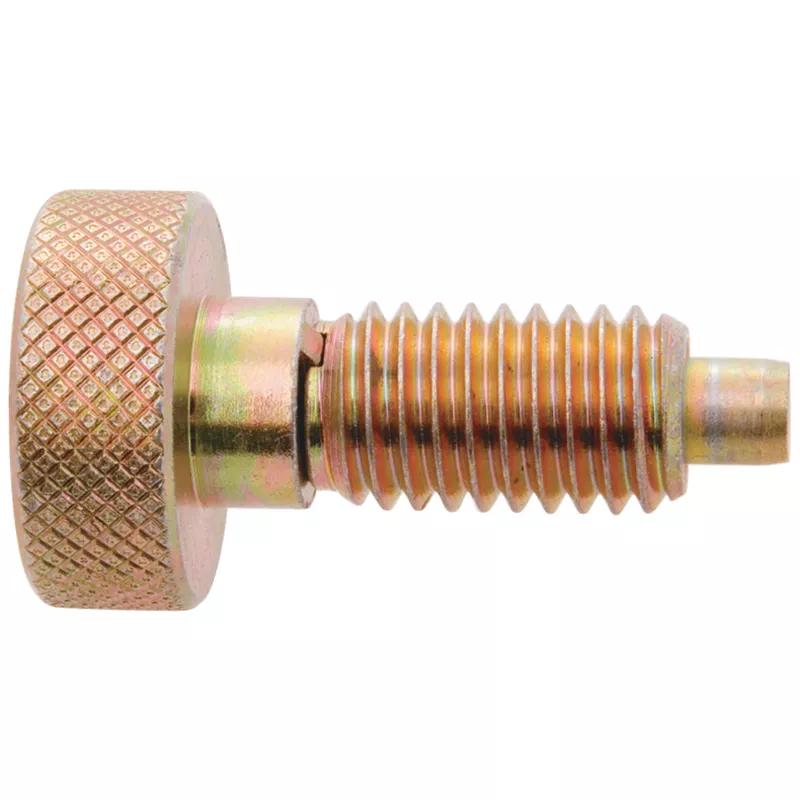

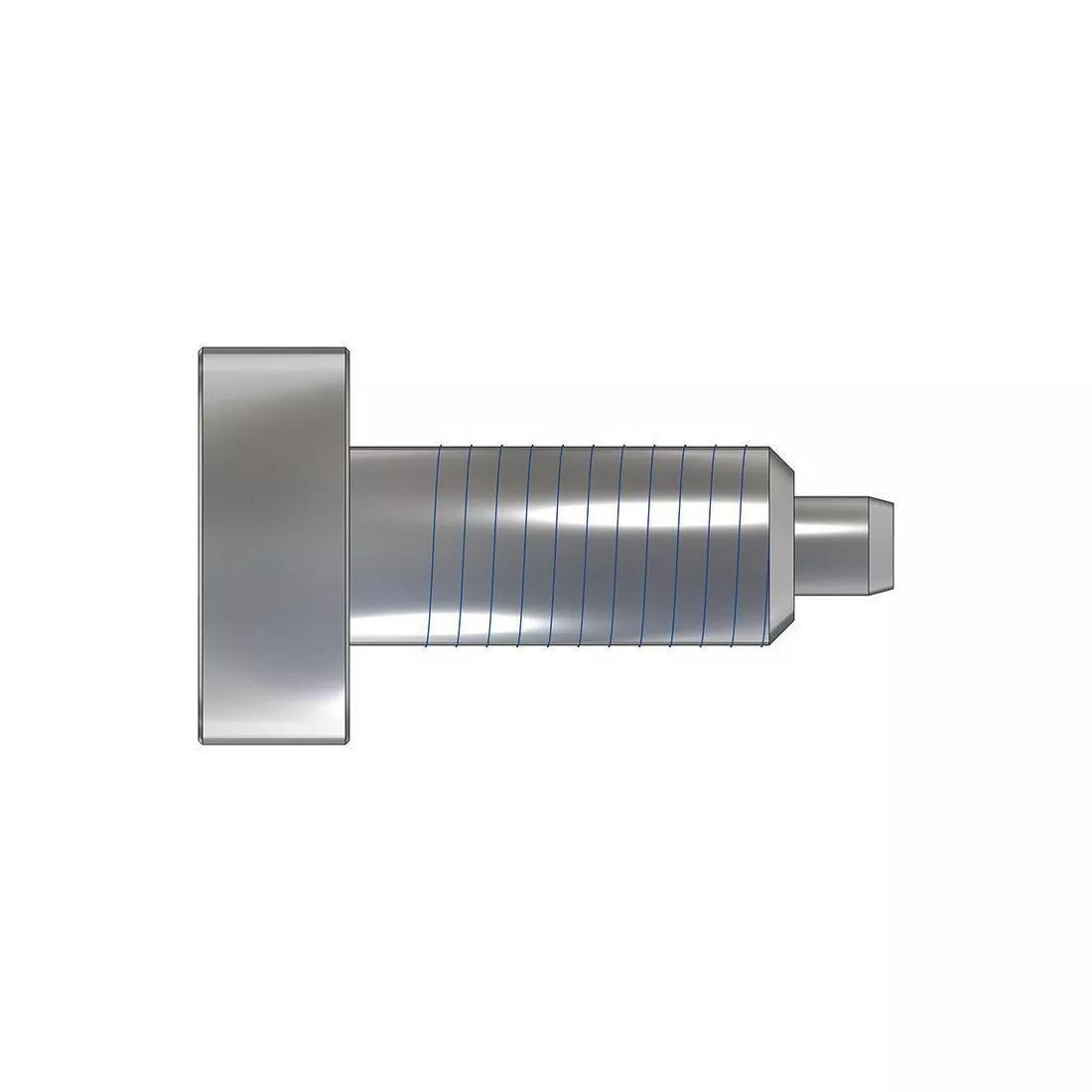

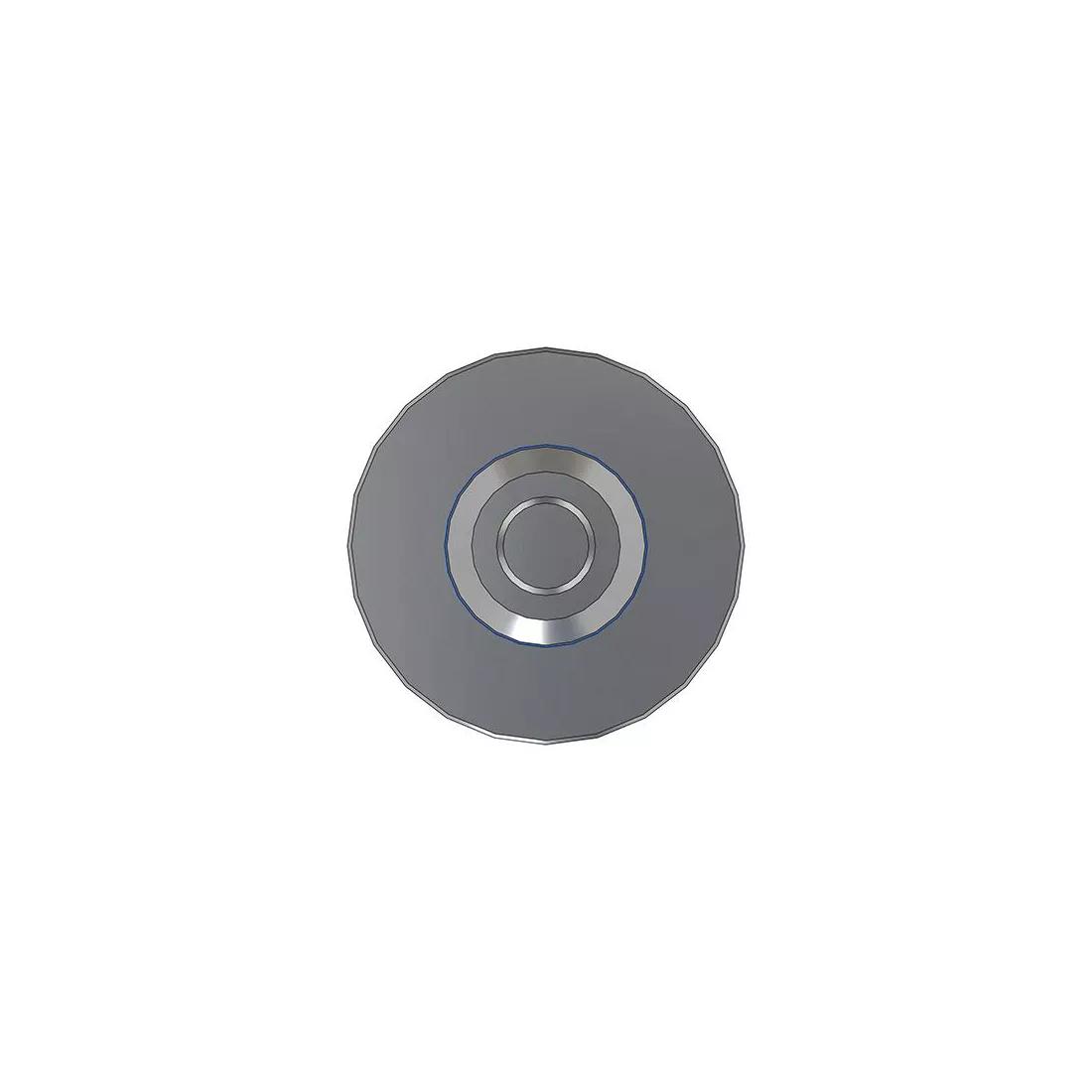

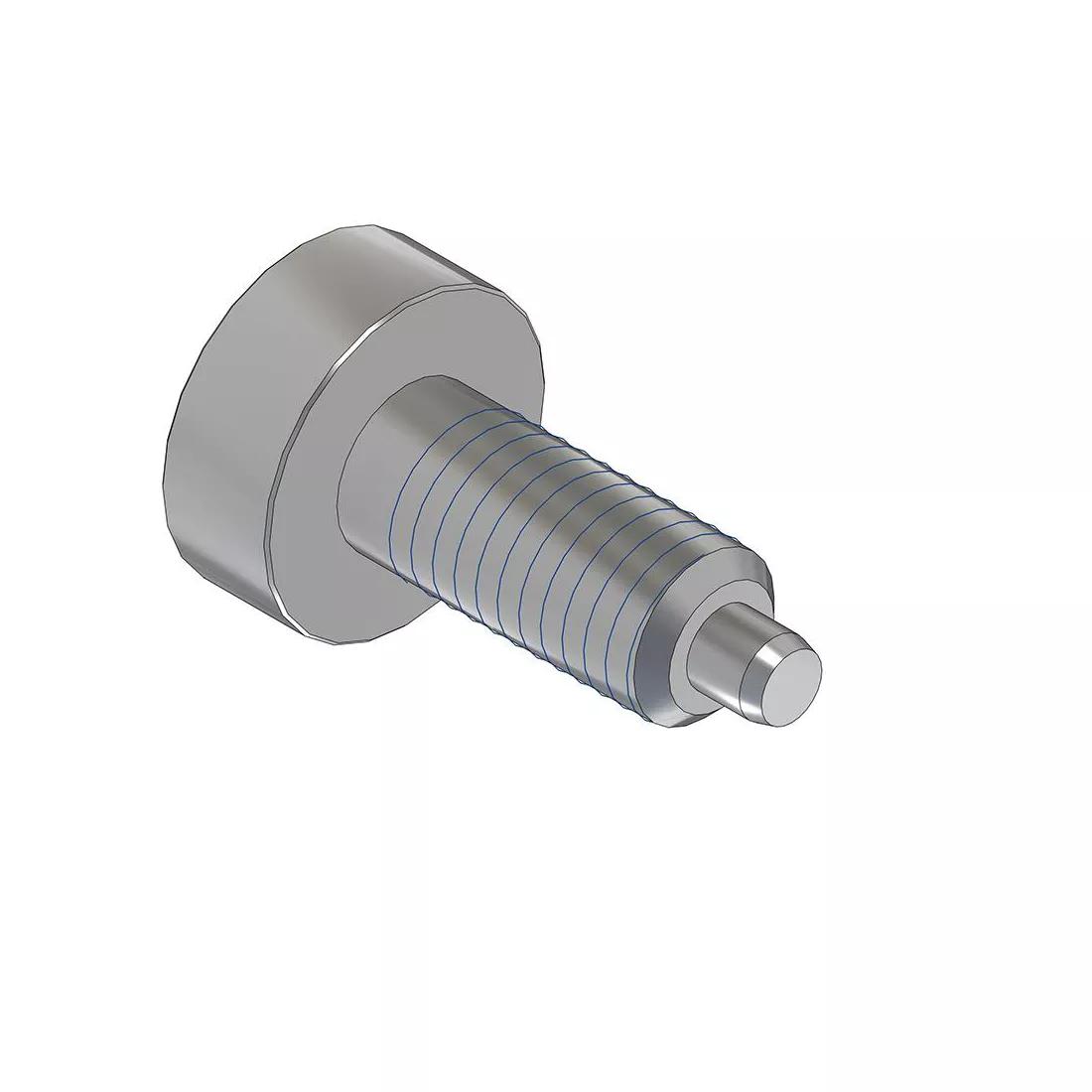

Round Knob Spring Plunger - Body Thread Size 1/2-13; Body Thread Length 22.2 mm | 0.875 in; Nose Diameter 6.3 mm | 0.249 in; Initial End Force 0.5 kg | 1.0 lbs; Final End Force 4.5 kg | 10.000 lbs
PHR-4SS Manufacturer Part Number: SSL500P
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $22.78 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Body Thread Size | 1/2-13 |
|---|---|
| Body Material | Stainless Steel |
| Nose Material | Stainless Steel |
| Nose Diameter | 0.249 in |
| Body Thread Length | 0.875 in |
| Nose Projection | 0.250 in |
| Initial End Force | 1.0 lbs |
| Final End Force | 10.000 lbs |
| Handle Type | Round Knob Handle |
| Handle Material | Stainless Steel |
| Material | Stainless Steel |
| Type | Spring Plungers |
