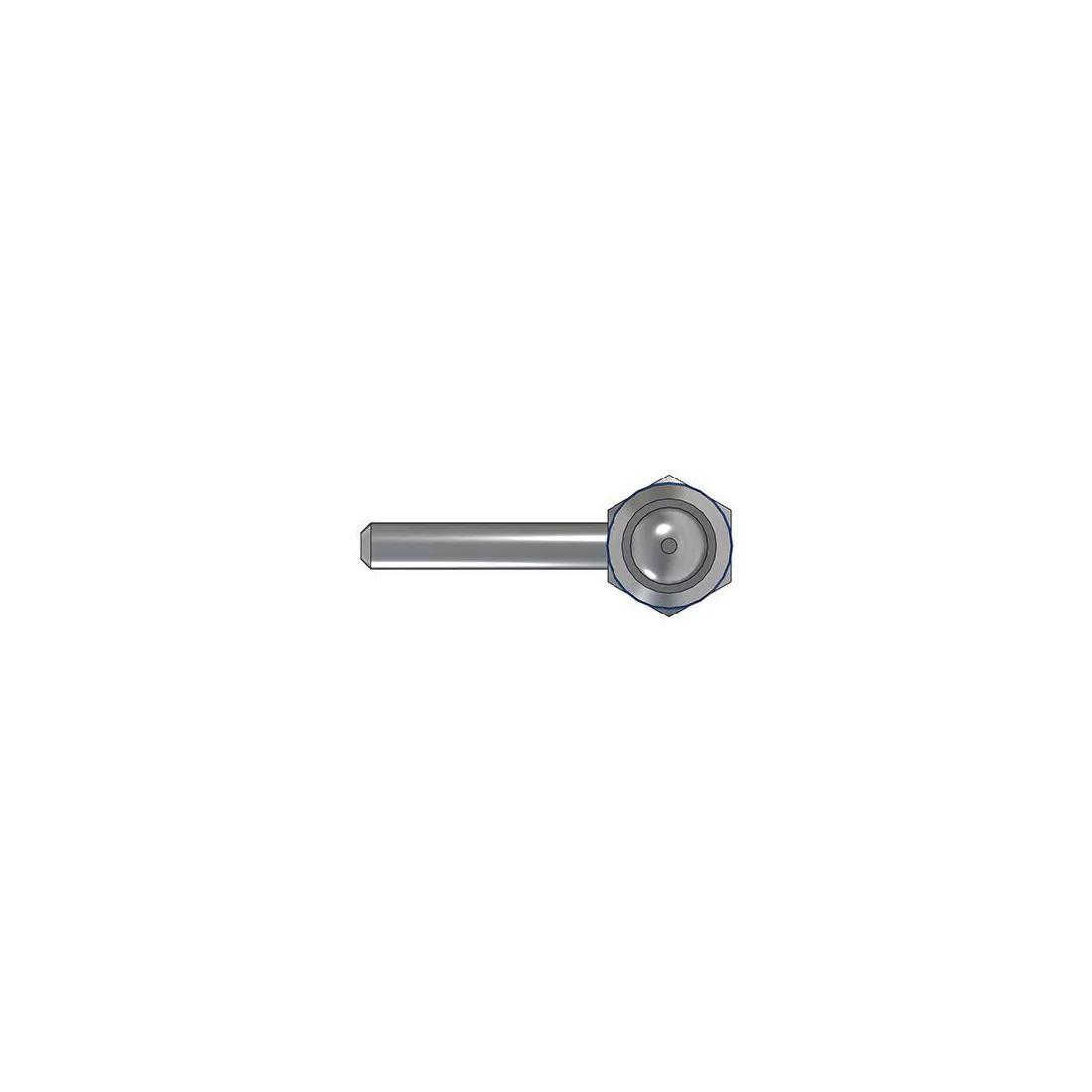

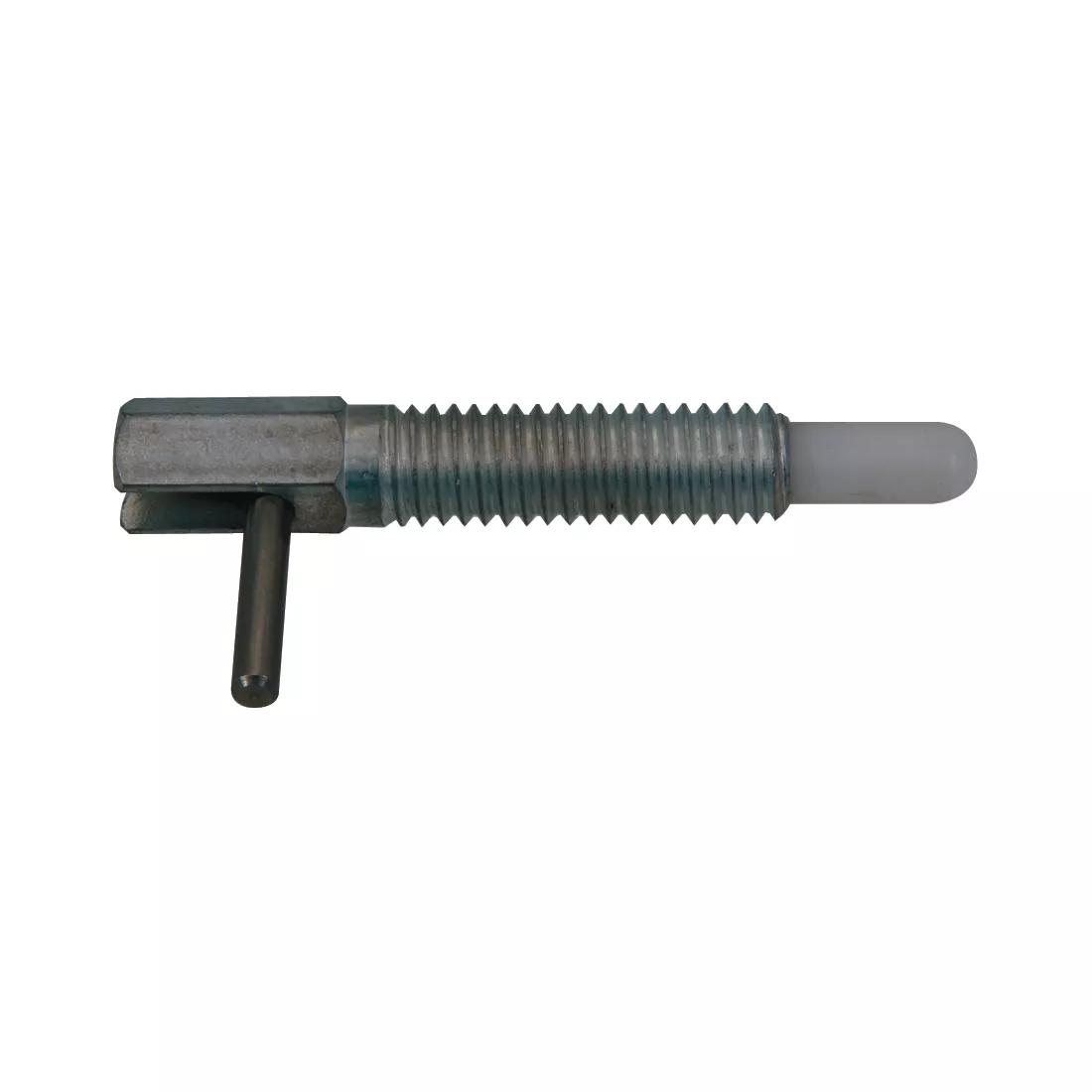

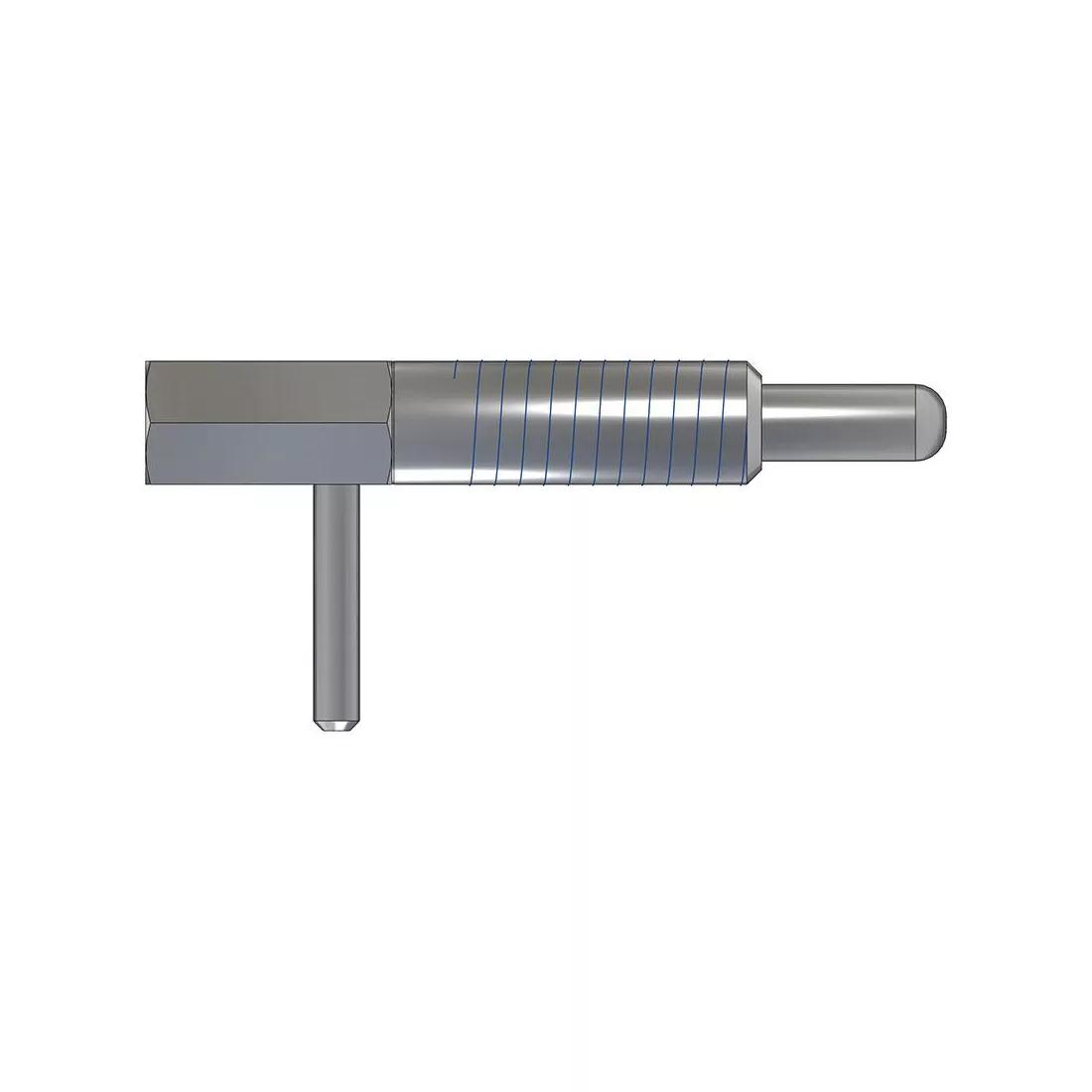

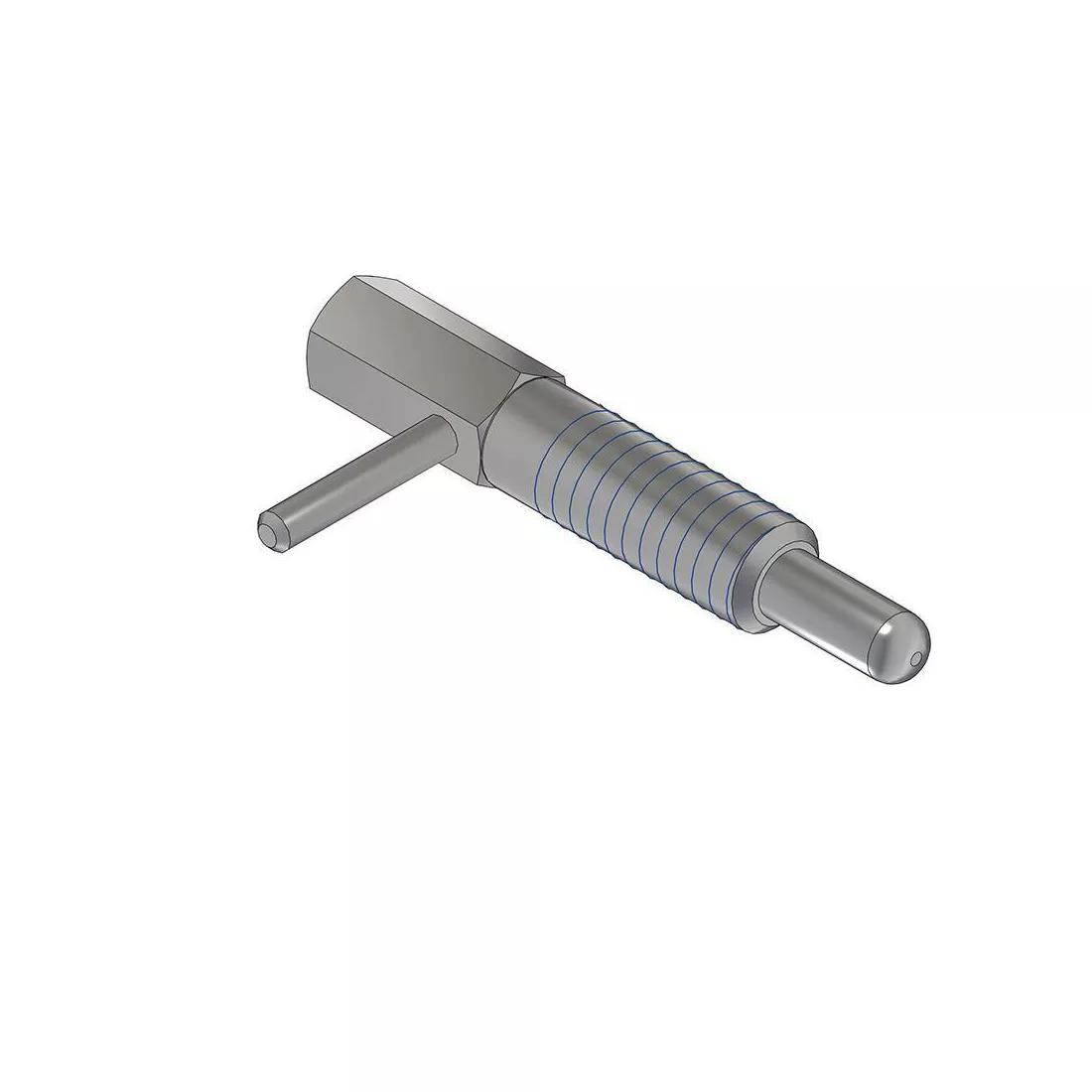

L Handle Spring Plunger - Body Thread Size 1/4-20; Body Thread Length 15.9 mm | 0.625 in; Nose Diameter 4 mm | 0.156 in; Initial End Force 0.2 kg | .50 lbs; Final End Force 1.1 kg | 2.500 lbs
FRD-1 Manufacturer Part Number: 33649P
Loading...
| Quantity | Unit price |
|---|---|
| 1 + | $19.32 |
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Body Thread Size | 1/4-20 |
|---|---|
| Body Material | Steel |
| Nose Material | Delrin |
| Nose Diameter | 0.156 in |
| Body Thread Length | 0.625 in |
| Nose Projection | 0.375 in |
| Initial End Force | .50 lbs |
| Final End Force | 2.500 lbs |
| Handle Type | L-Handle |
| Handle Material | Steel |
| Material | Steel |
| Type | Spring Plungers |
