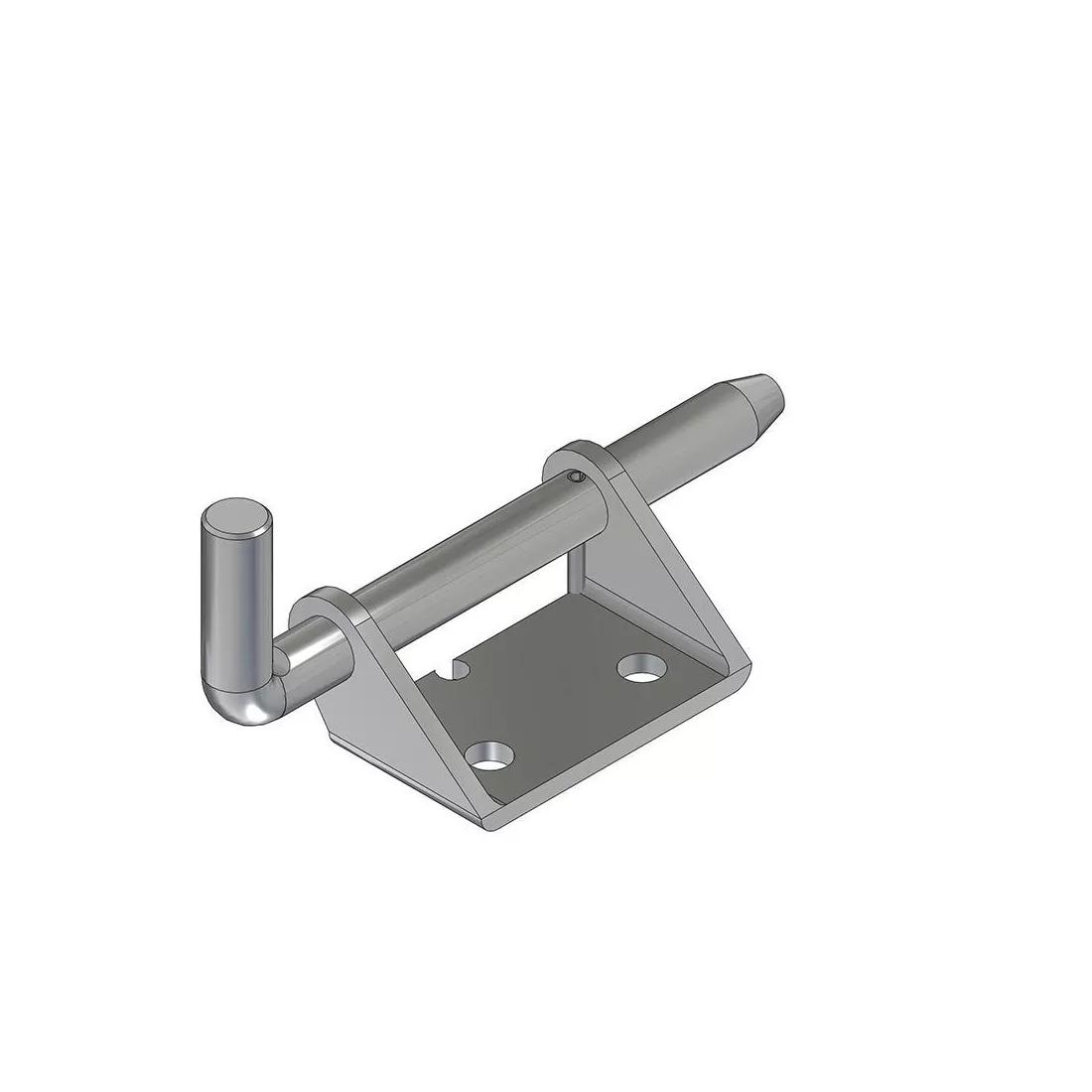

HG-9261_Isometric Rendering

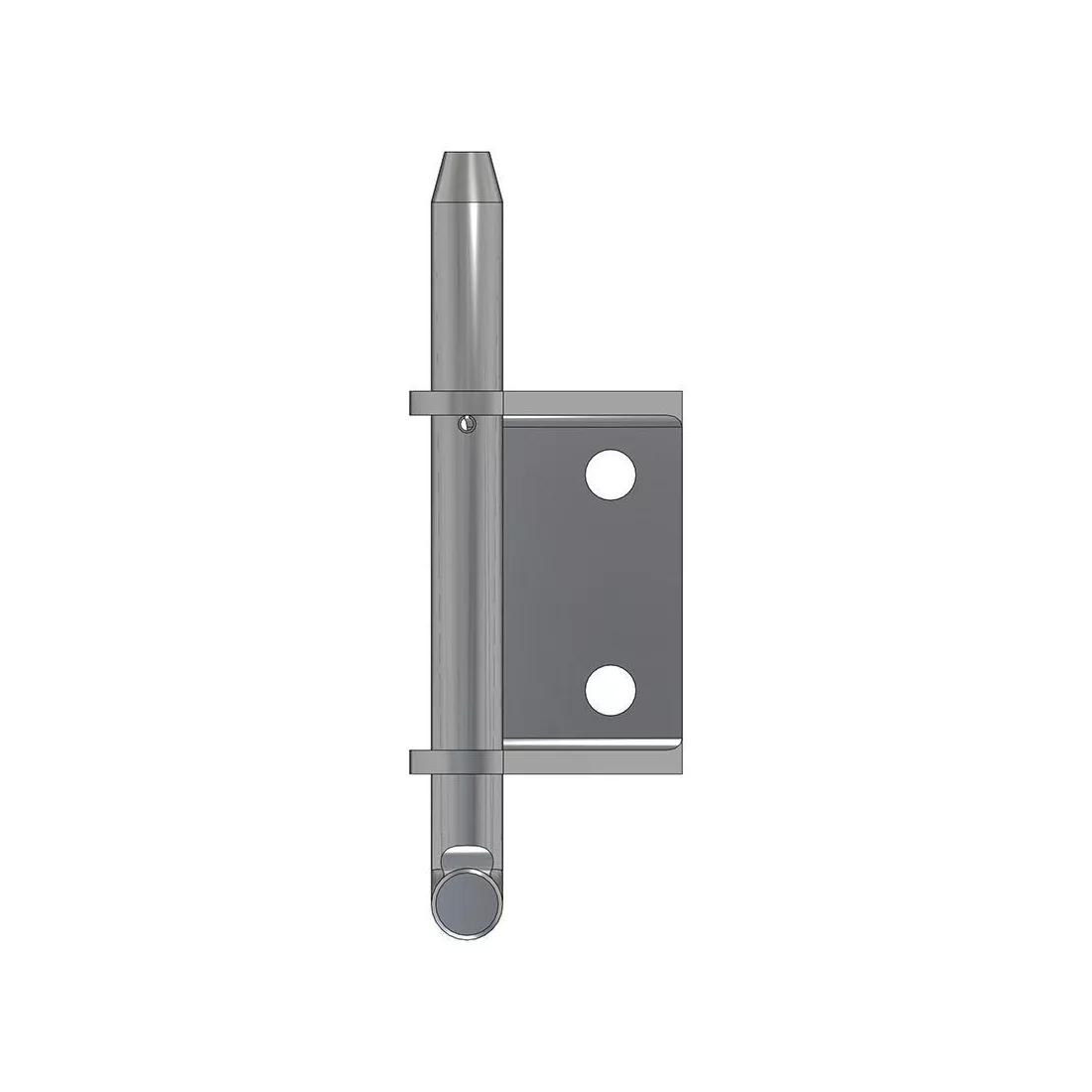

HG-9261_Right Rendering

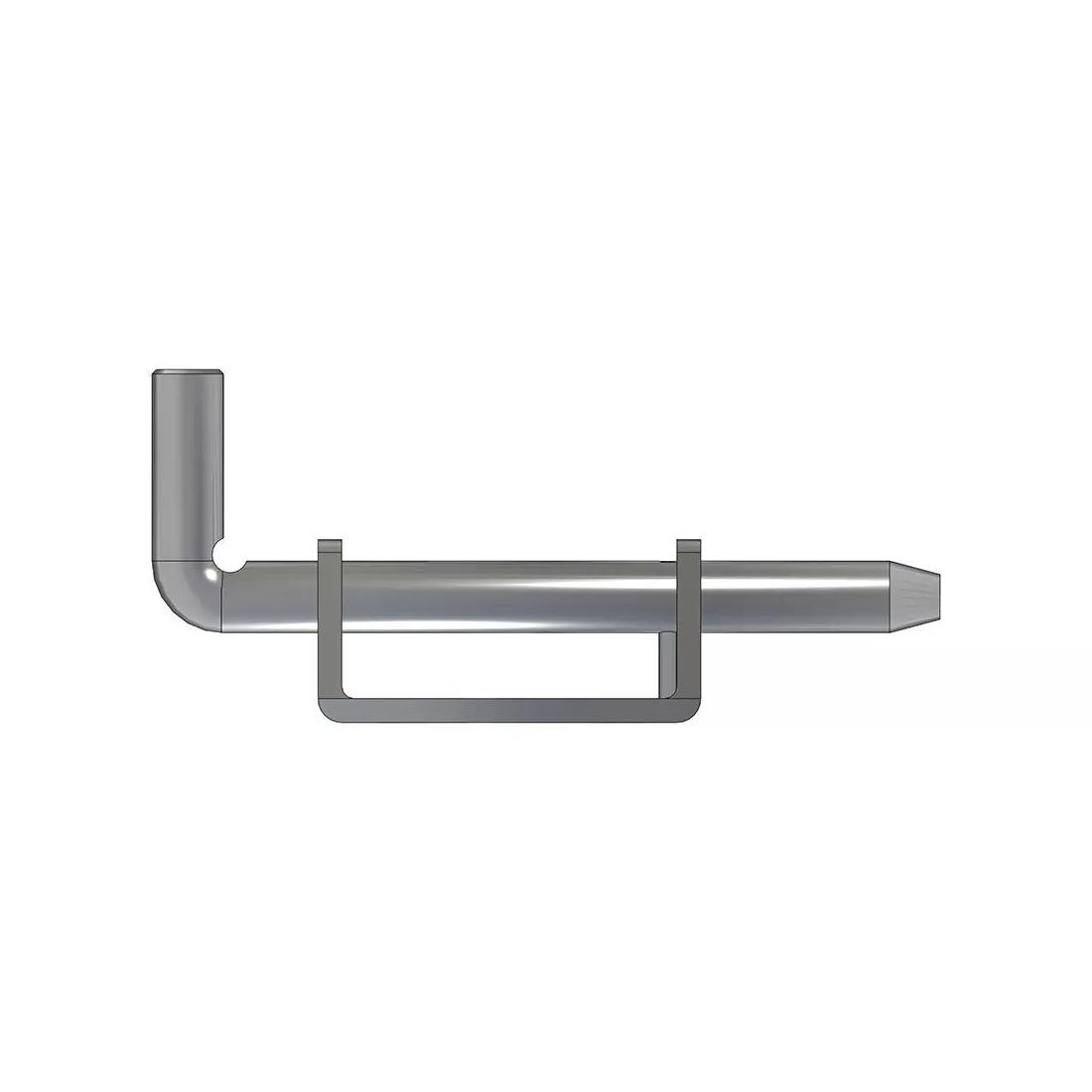

HG-9261_Top Rendering

Concealed Hinge; Steel, , Mounting Method=Screw

Item code:

HG-9261

152 In stock For more information Delivery & returns

HG-9261 Manufacturer Part Number: 9296RH-02

SKU price information
Quantity	Unit price
1 +	$18.41

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Specifications

Imperial

Metric

SKU attributes
Brand	Reid Select
Manufacturer Part Number	9296RH-02
Door Attachment Length	31.8 mm
Door Attachment Length	1.250 in
Leaf Thickness	3.2 mm
Leaf Thickness	0.126 in
Overall Leaf Length	50.8 mm
Overall Leaf Length	2.000 in
Overall Length	73 mm
Overall Length	2.875 in
Overall Width	28.6 mm
Overall Width	1.125 in
Pin Diameter	9.5 mm
Pin Diameter	0.375 in
Body Material	Steel
Finish	Zinc-Plated
Material	Steel
Mounting Method	Screw
Mounting Orientation	Right-Handed
Pin Material	Steel
Removability	Removable
