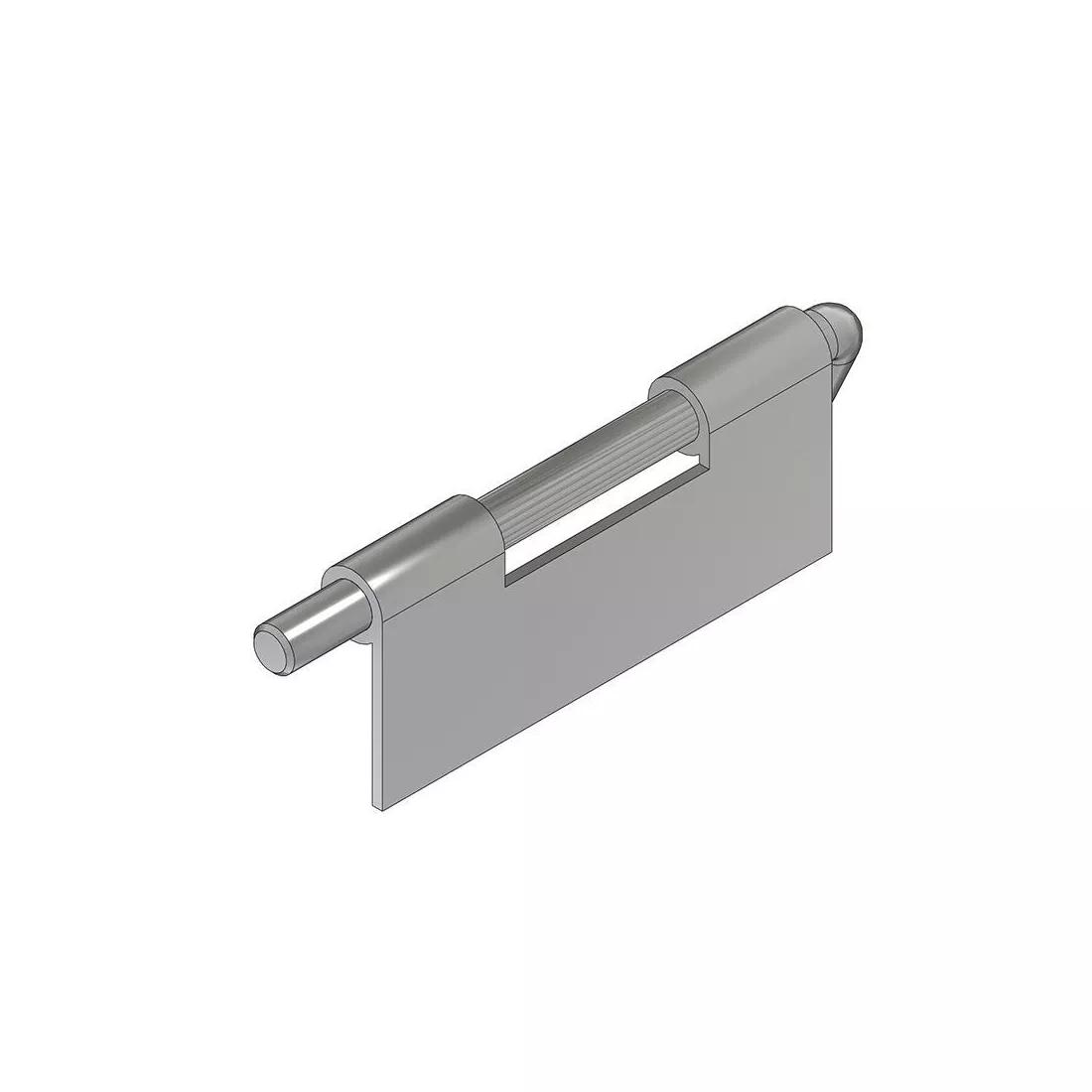

HG-9251_Isometric Rendering

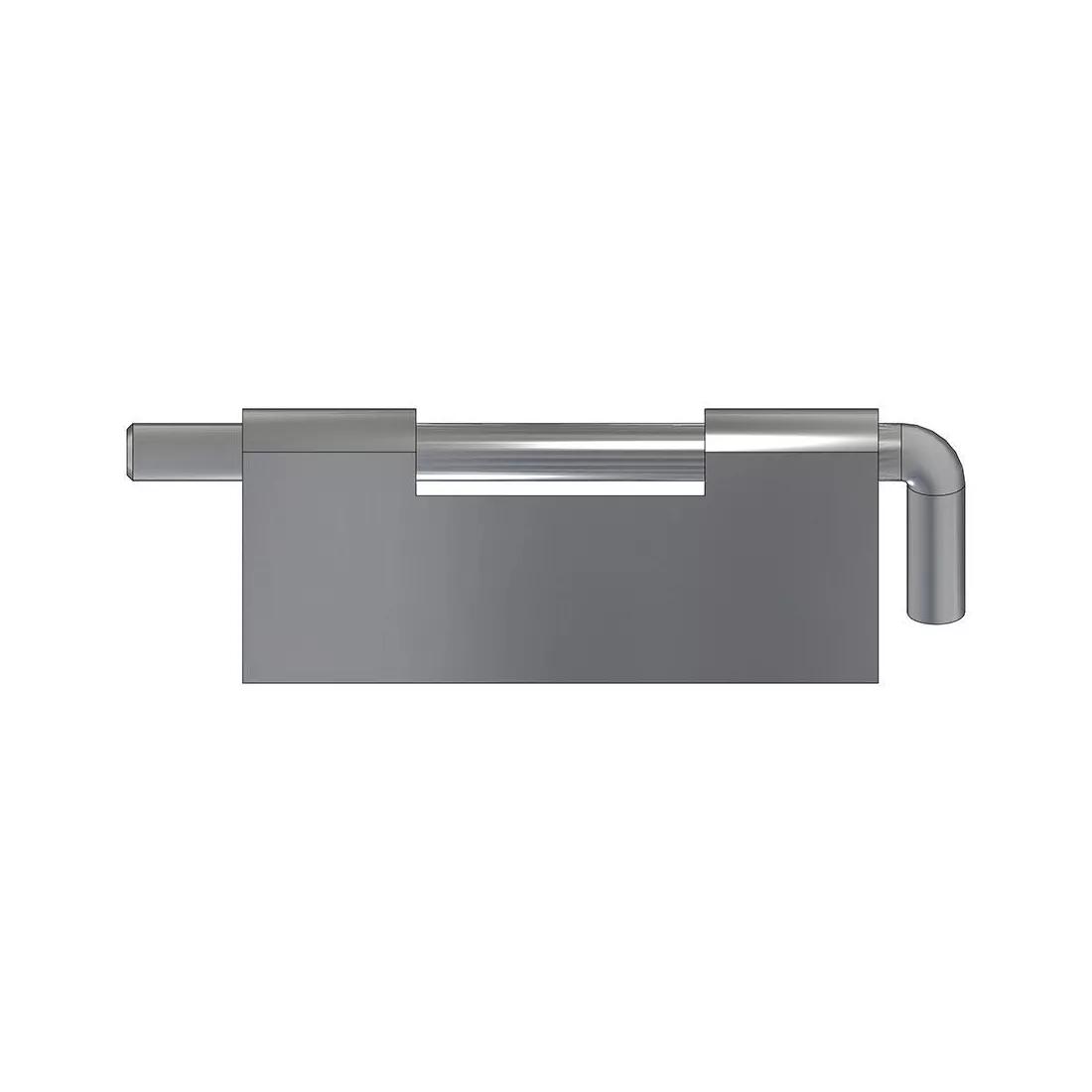

HG-9251_Right Rendering

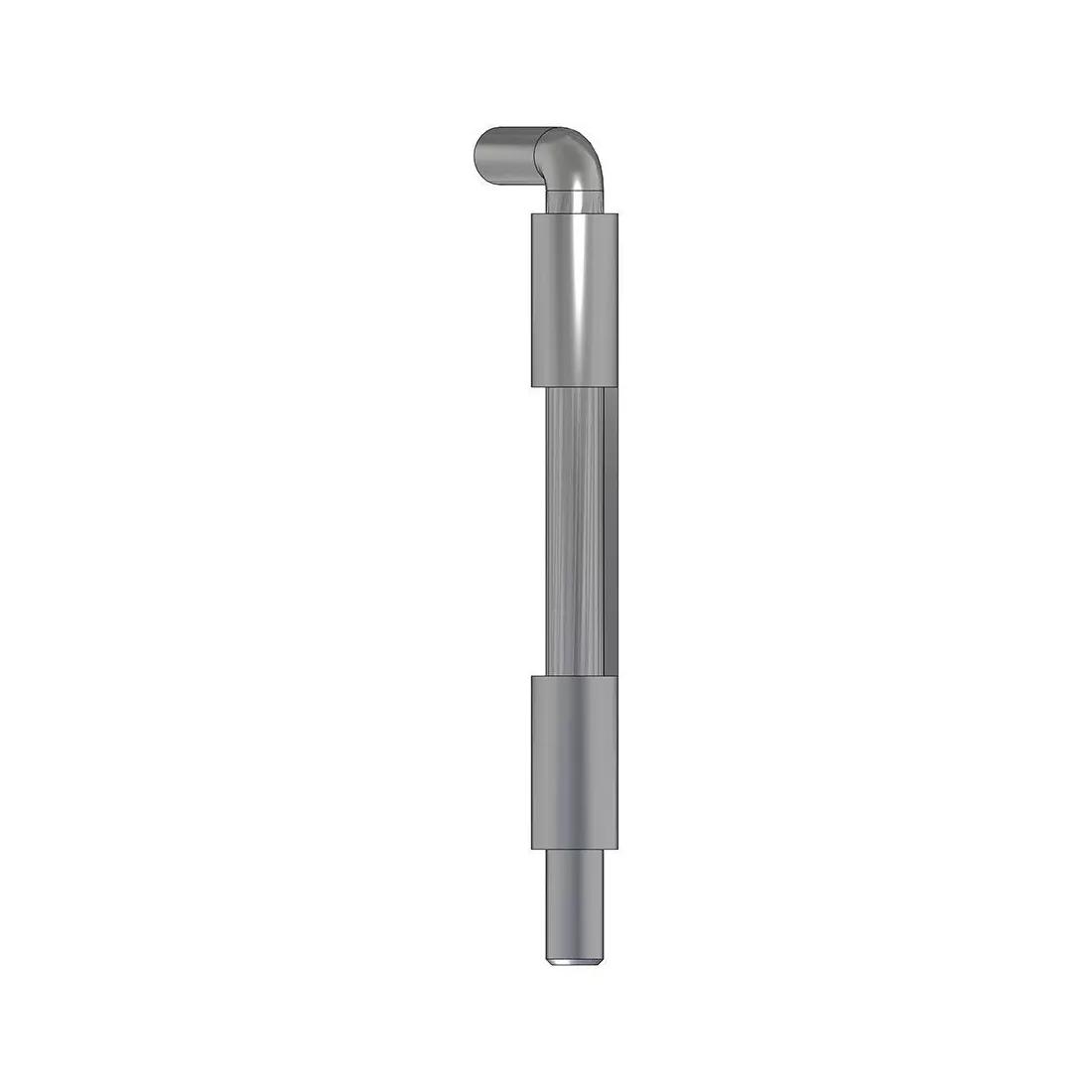

HG-9251_Top Rendering

Concealed Hinge; Steel, , Mounting Method=Weld

Item code:

HG-9251

Request the lead time here For more information Delivery & returns

HG-9251 Manufacturer Part Number: 9295RH-02

SKU price information
Quantity	Unit price
1 +	$3.87

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Specifications

Imperial

Metric

SKU attributes
Brand	Reid Select
Manufacturer Part Number	9295RH-02
Door Attachment Length	12.7 mm
Door Attachment Length	0.500 in
Leaf Thickness	1.6 mm
Leaf Thickness	0.063 in
Overall Leaf Length	69.9 mm
Overall Leaf Length	2.750 in
Overall Length	92.1 mm
Overall Length	3.625 in
Overall Width	25.4 mm
Overall Width	1.000 in
Pin Diameter	6.4 mm
Pin Diameter	0.250 in
Body Material	Steel
Finish	Zinc-Plated
Material	Steel
Mounting Method	Weld
Mounting Orientation	Right-Handed
Pin Material	Steel
Removability	Removable
