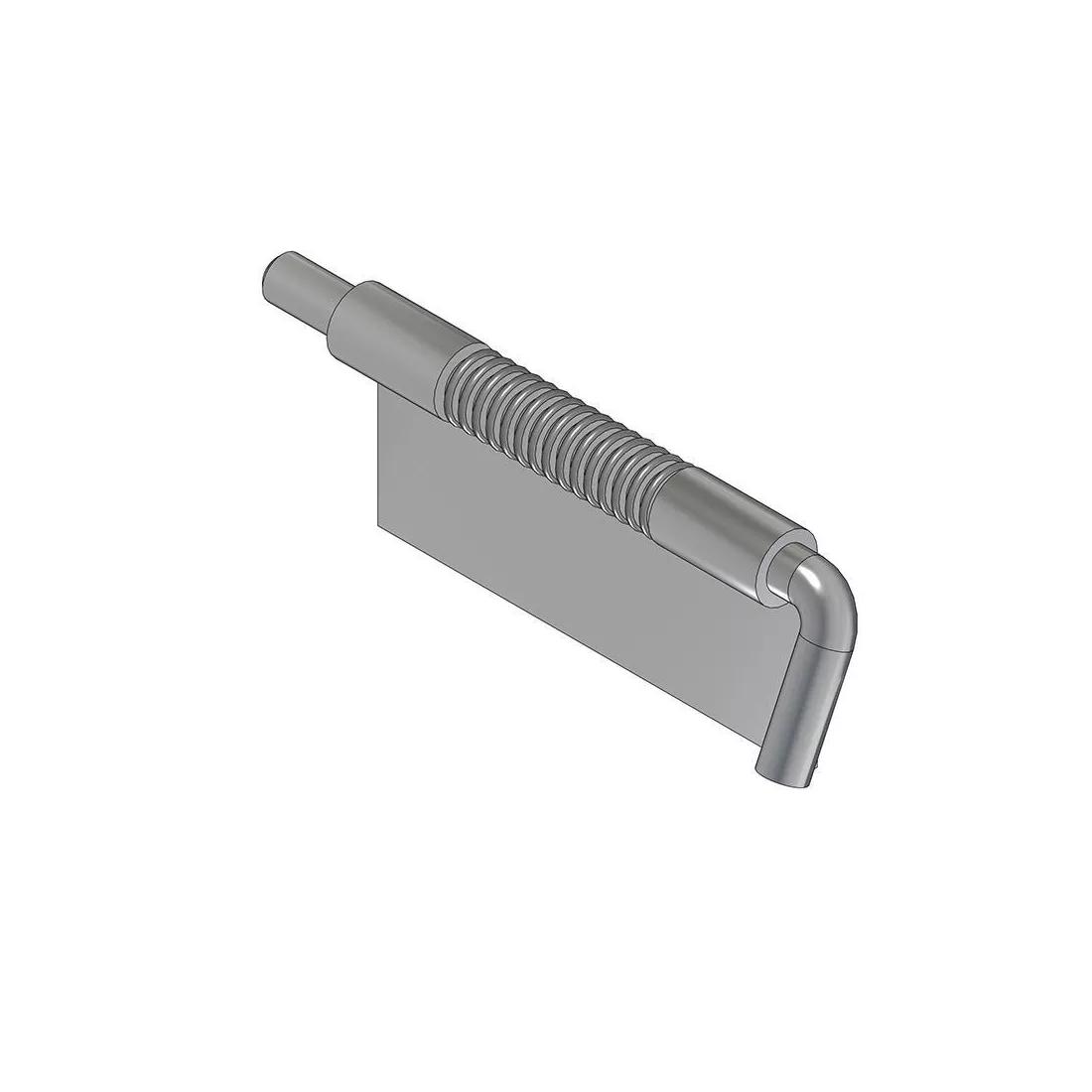

HG-9242_Isometric Rendering

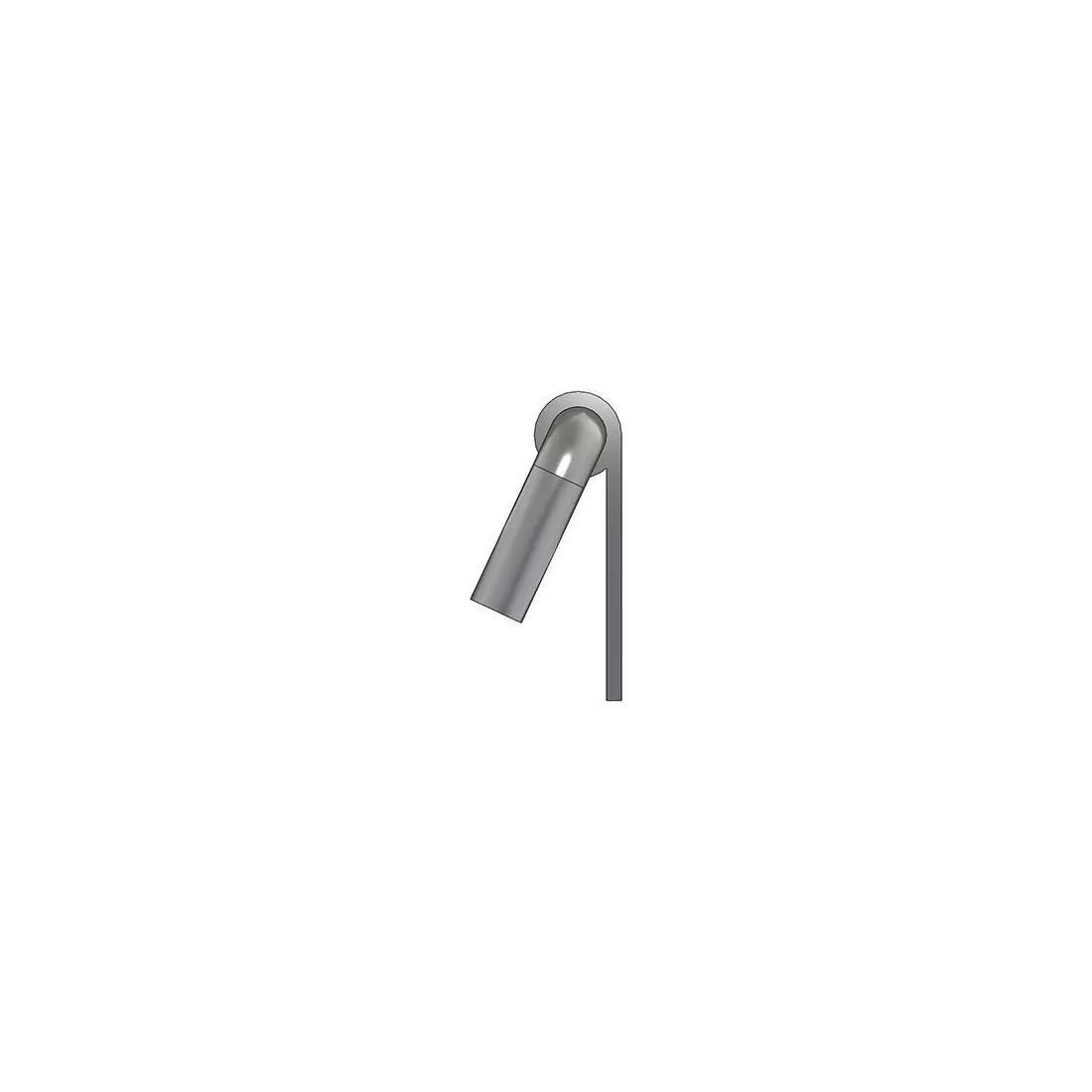

HG-9242_Right Rendering

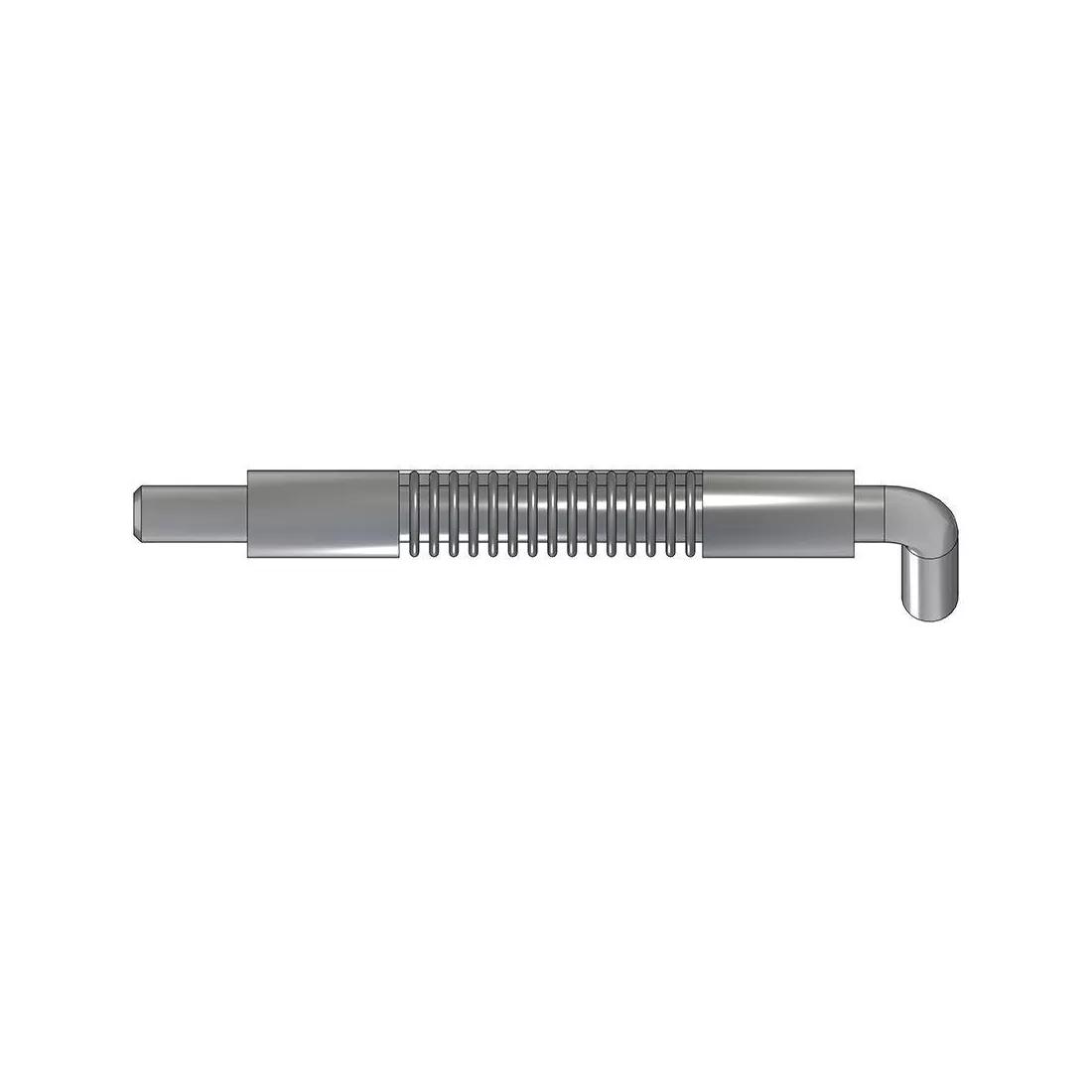

HG-9242_Top Rendering

Concealed Hinge; Steel, , Mounting Method=Weld

Item code:

HG-9242

Request the lead time here For more information Delivery & returns

HG-9242 Manufacturer Part Number: 9294LH-02

SKU price information
Quantity	Unit price
1 +	$6.04

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

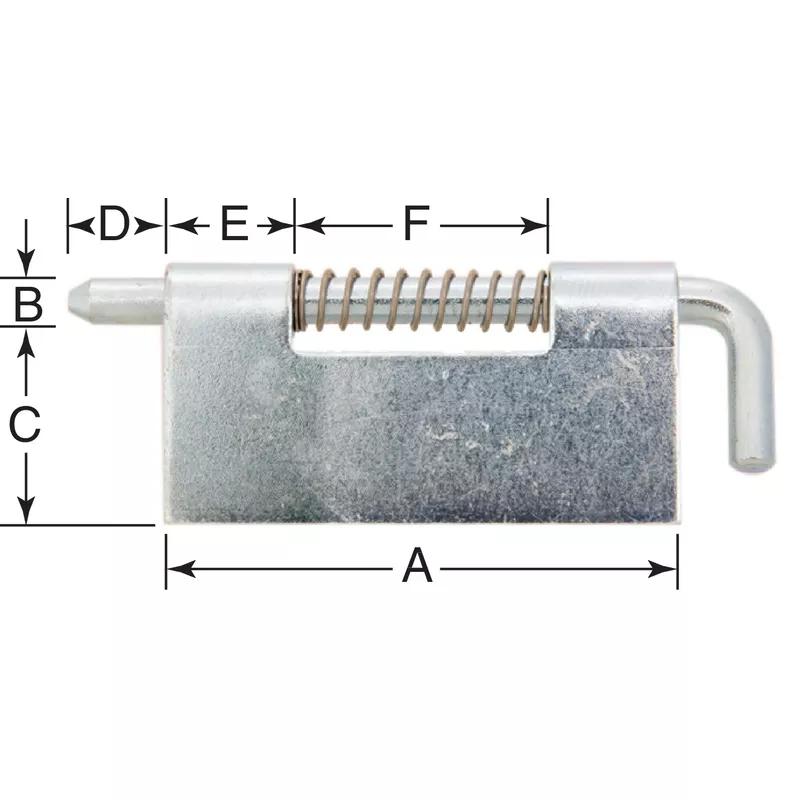

Specifications

Imperial

Metric

SKU attributes
Brand	Reid Select
Manufacturer Part Number	9294LH-02
Door Attachment Length	9.5 mm
Door Attachment Length	0.375 in
Leaf Thickness	1.3 mm
Leaf Thickness	0.051 in
Overall Leaf Length	50.8 mm
Overall Leaf Length	2.000 in
Overall Length	73 mm
Overall Length	2.875 in
Overall Width	22.2 mm
Overall Width	0.875 in
Pin Diameter	4.7 mm
Pin Diameter	0.187 in
Body Material	Steel
Finish	Zinc-Plated
Material	Steel
Mounting Method	Weld
Mounting Orientation	Left-Handed
Pin Material	Steel
Removability	Removable
