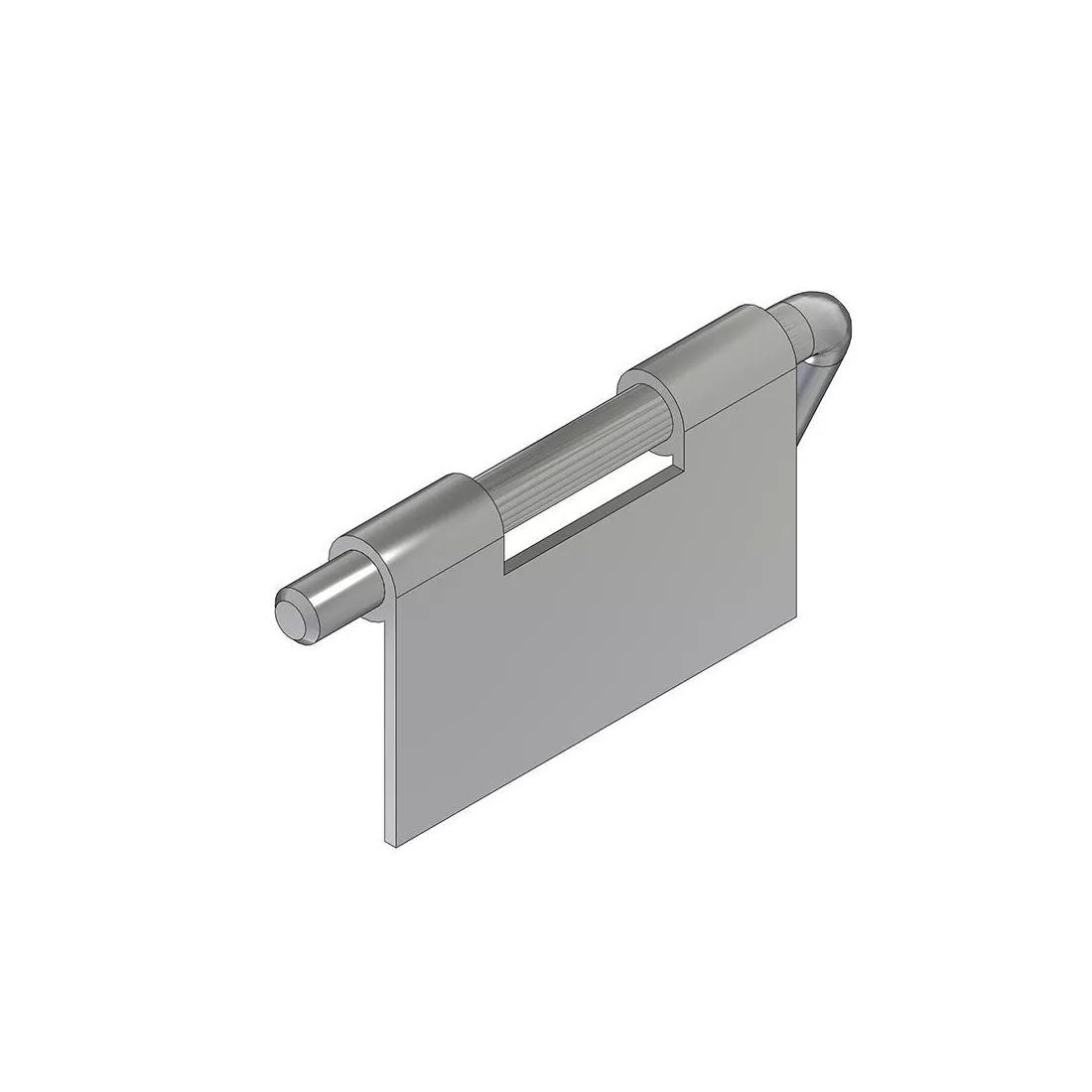

HG-9233_Isometric Rendering

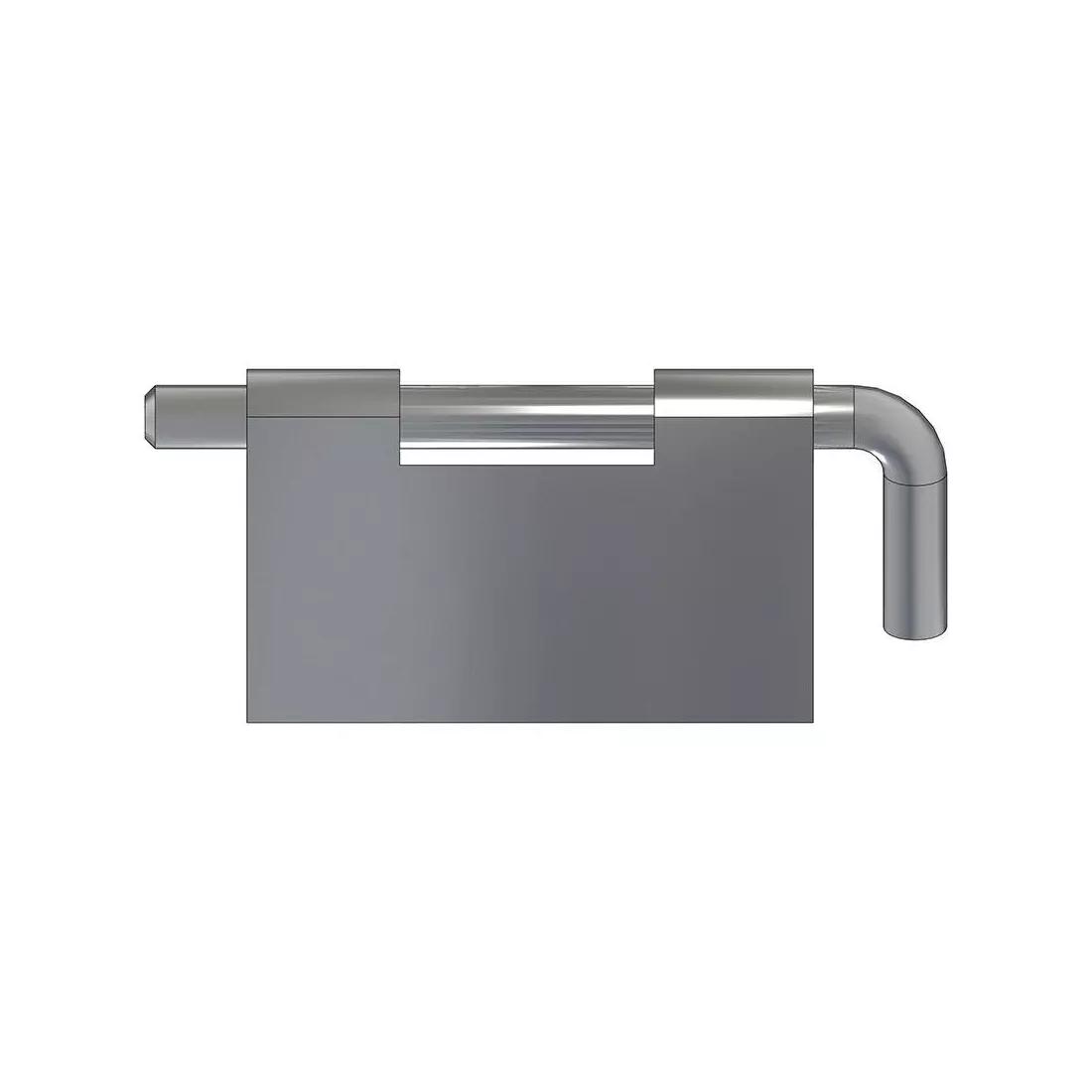

HG-9233_Right Rendering

HG-9233_Top Rendering

Concealed Hinge; Stainless Steel, , Mounting Method=Weld

Item code:

HG-9233

Request the lead time here For more information Delivery & returns

HG-9233 Manufacturer Part Number: 9293RH-32

SKU price information
Quantity	Unit price
1 +	$7.83

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Specifications

Imperial

Metric

SKU attributes
Brand	Reid Select
Manufacturer Part Number	9293RH-32
Door Attachment Length	6.4 mm
Door Attachment Length	0.250 in
Leaf Thickness	1.0 mm
Leaf Thickness	0.039 in
Overall Leaf Length	35.3 mm
Overall Leaf Length	1.390 in
Overall Length	34.9 mm
Overall Length	1.375 in
Overall Width	19.1 mm
Overall Width	0.750 in
Pin Diameter	4 mm
Pin Diameter	0.156 in
Body Material	Stainless Steel
Material	Stainless Steel
Mounting Method	Weld
Mounting Orientation	Right-Handed
Pin Material	Stainless Steel
Removability	Removable
