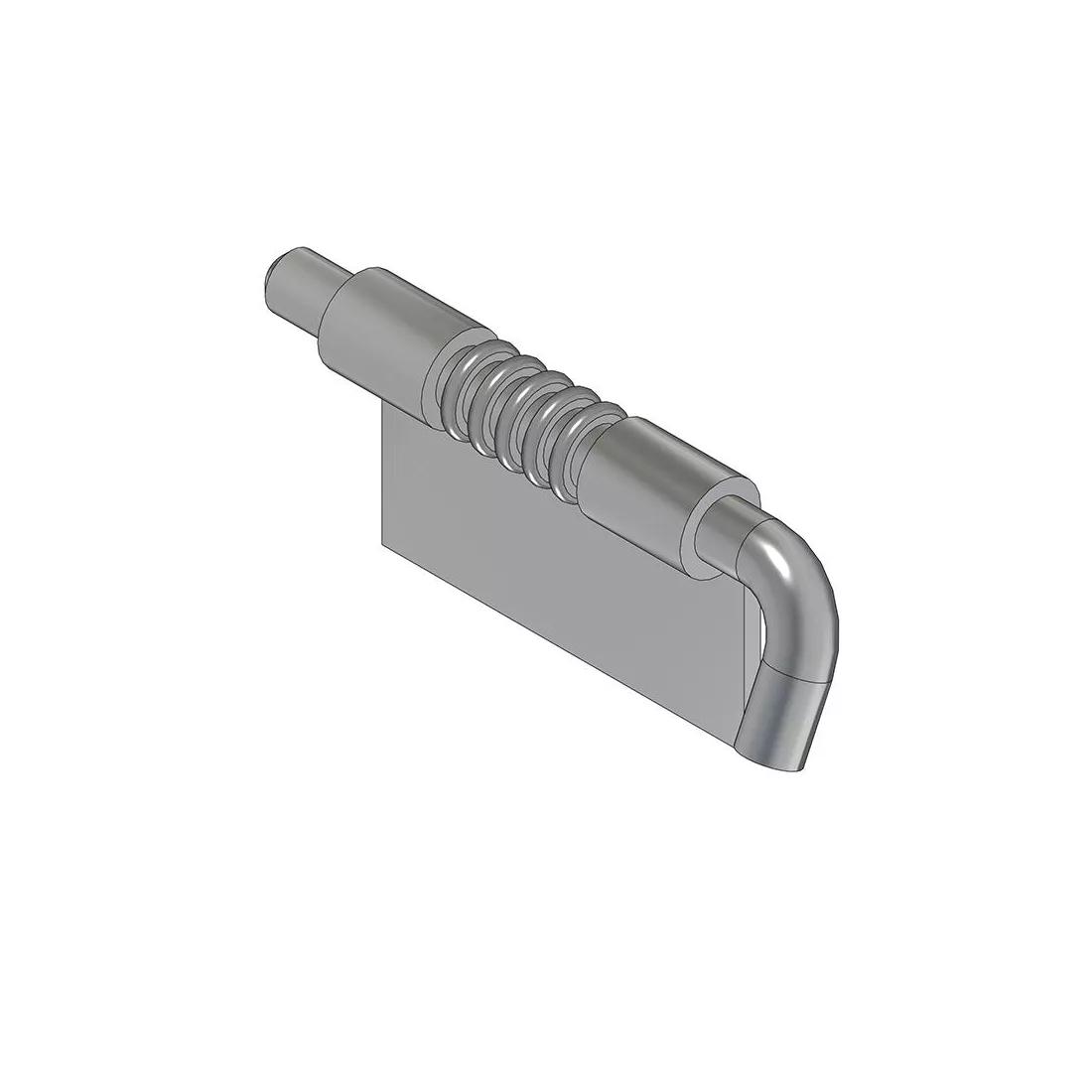

HG-9222_Isometric Rendering

HG-9222_Right Rendering

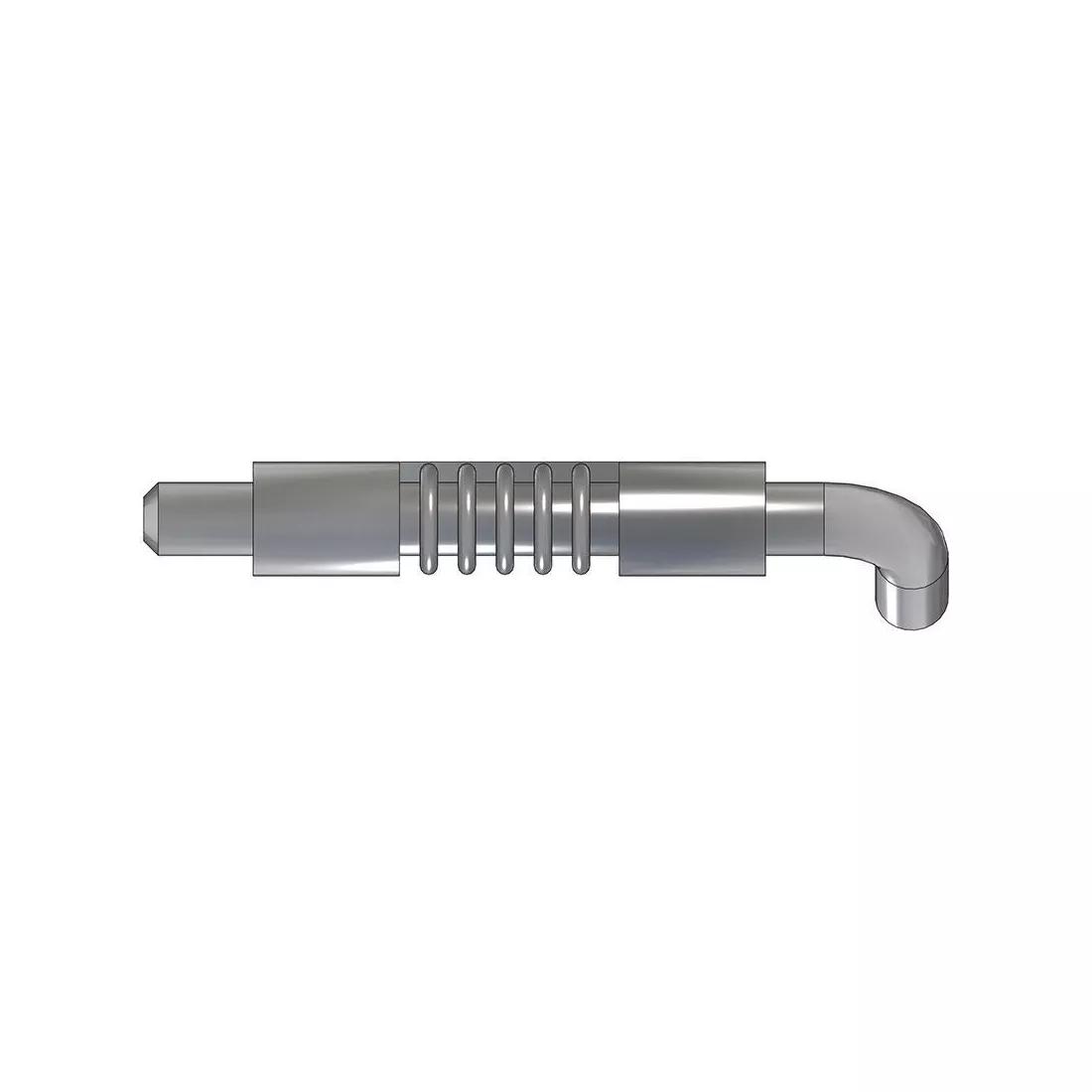

HG-9222_Top Rendering

Concealed Hinge; Steel, , Mounting Method=Weld

Item code:

HG-9222

Request the lead time here For more information Delivery & returns

HG-9222 Manufacturer Part Number: 9292LH-02

SKU price information
Quantity	Unit price
1 +	$8.06

Request a quote

For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.

Specifications

Imperial

Metric

SKU attributes
Brand	Reid Select
Manufacturer Part Number	9292LH-02

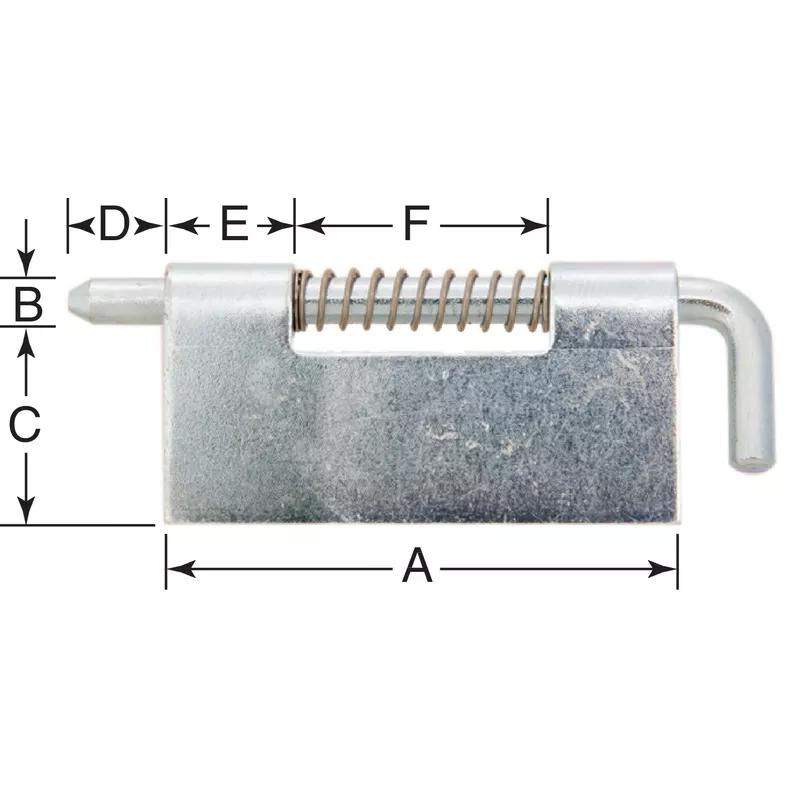

Door Attachment Length	4.7 mm
Door Attachment Length	0.187 in
Leaf Thickness	1.0 mm
Leaf Thickness	0.039 in
Overall Leaf Length	22.2 mm
Overall Leaf Length	0.875 in
Overall Length	34.9 mm
Overall Length	1.375 in
Overall Width	12.7 mm
Overall Width	0.500 in
Pin Diameter	3.2 mm
Pin Diameter	0.125 in
Body Material	Steel
Finish	Zinc-Plated
Material	Steel
Mounting Method	Weld
Mounting Orientation	Left-Handed
Pin Material	Steel
Removability	Removable
