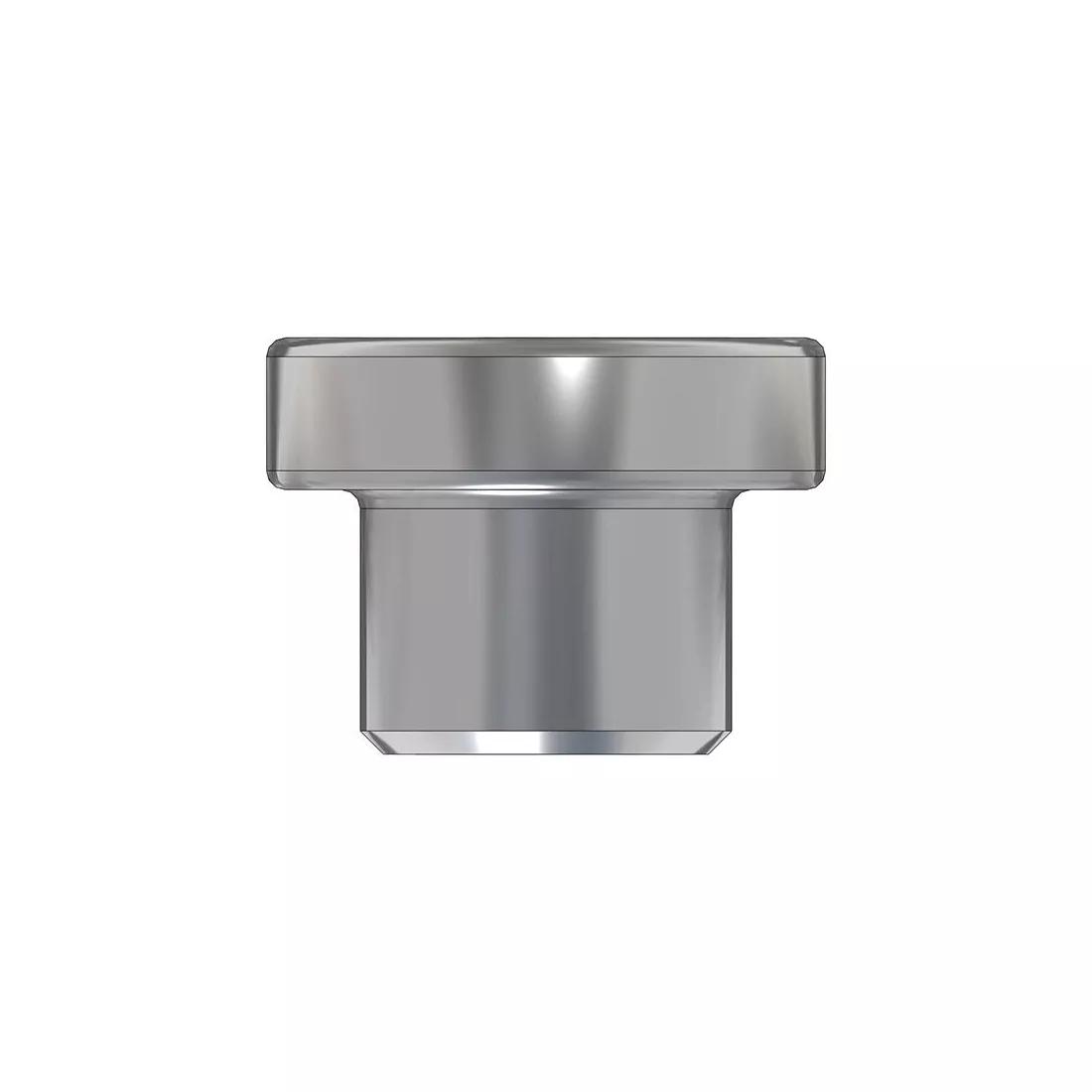

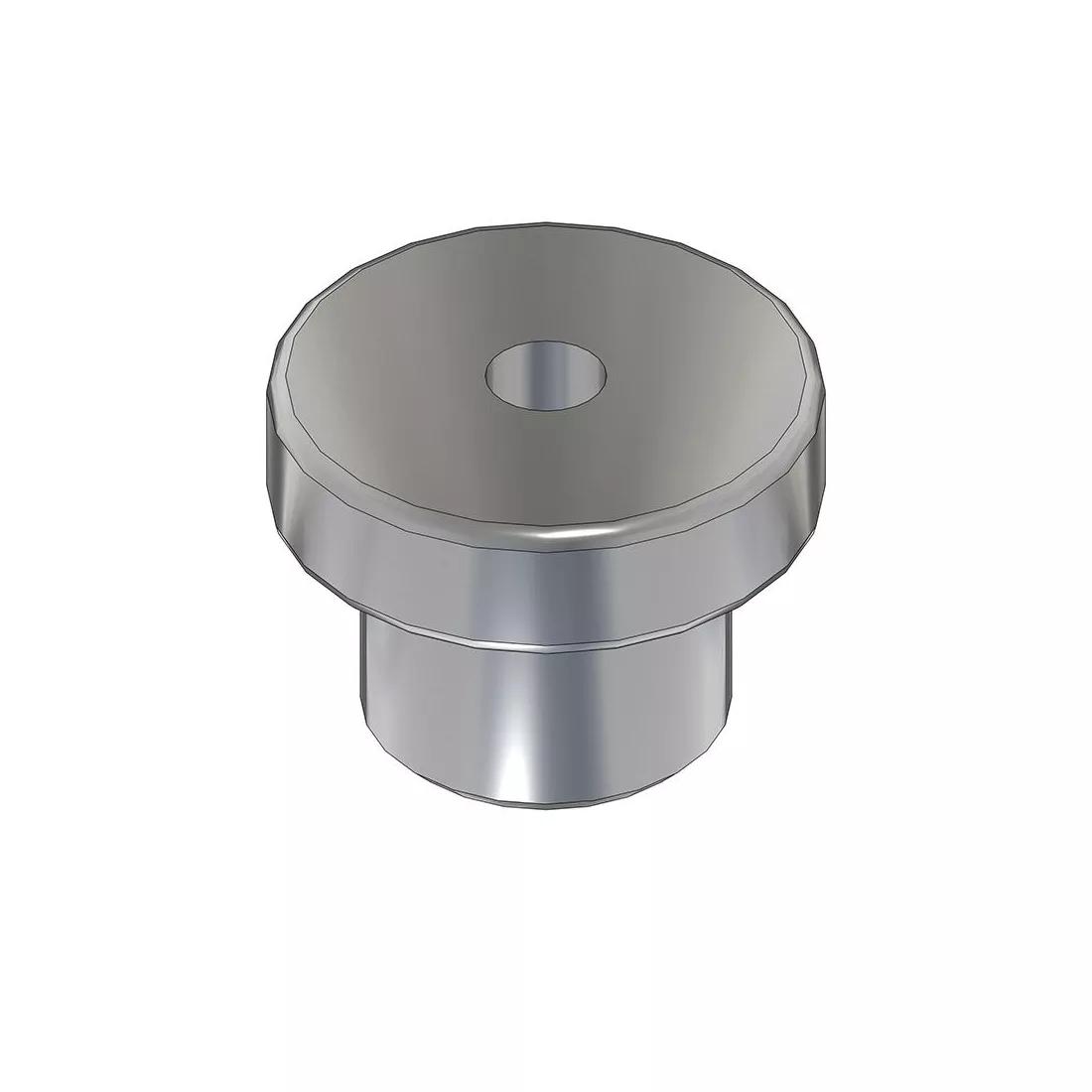

Bonded Mount; Base Diameter=50.3 mm | 1.980 in, , Flange Diameter=75.7 mm | 2.98 in
Natural Rubber;Steel One Piece Bonded Mount fits diameter holes in .930 in thick panels to protect against shock and vibration. Manufacturer Part Number: BC-1124-5
Request a quote
For large volumes and customised products, add to your cart and click request a quote, orcontact usand we will respond within 2 working days.
Specifications
Imperial
Metric
| Brand | Reid Select |
|---|---|
| Manufacturer Part Number | BC-1124-5 |
| Base Diameter | 1.980 in |
| Compatible Bolt Size | 0.625 in |
| Compatible Hole Size | 1.810 in |
| Flange Height | 0.810 in |
| Height | 2.22 in |
| Panel Thickness | .930 in |
| Static Load Capacity | 1400 lbs |

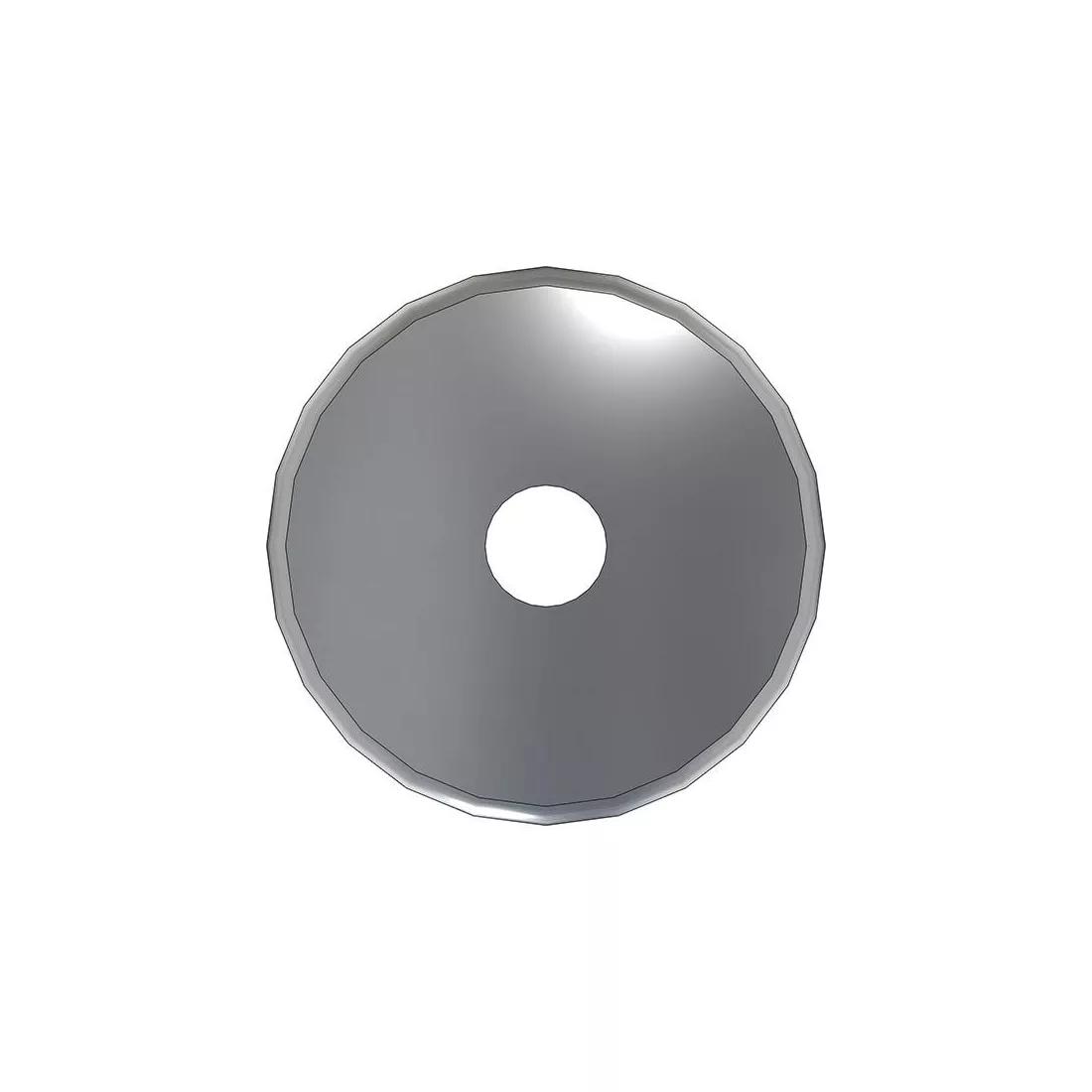

| For Use With | Snubbing Washer BBM-125 and BBM-155 |
| Material | Natural Rubber;Steel |
| Type | Bonded Mounts |
